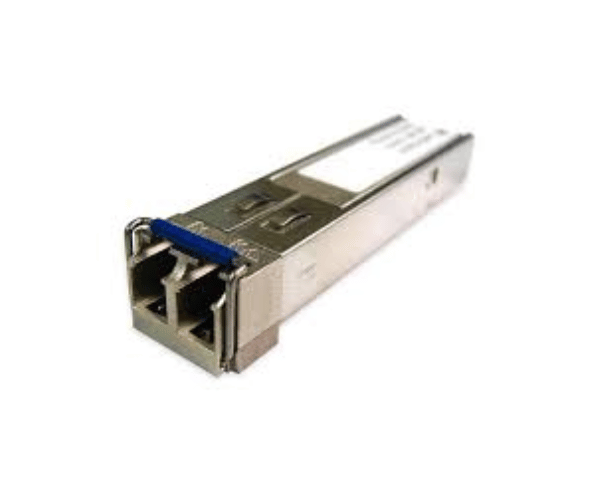

Buy the AP824A – HPE Storage Transceivers at the Best Price in Bangladesh
AP824A – HPE Storage Transceivers is a high-performance SFP+ transceiver that supports 10 Gigabit Ethernet (10GbE) networks. Ideal for enterprise environments that require fast and reliable data transmission, this transceiver offers a data transfer rate of 10.3125 Gbps over single-mode fiber (SMF). It is perfect for long-range communication with a transmission distance of up to 10 kilometers. The AP824A is compatible with B-series switches, ensuring seamless integration into network infrastructures.
Key Features:
- 10.3125 Gbps data transfer rate for fast, reliable communication
- Supports transmission distances up to 10 kilometers
- LC connector type for secure and stable connections
- Operates at a wavelength of 1310nm optimized for long-range communication
- Compatible with B-series switches
- Hot-swappable design for easy installation and maintenance
- RoHS compliant, ensuring environmental safety
- Digital Diagnostic Monitoring (DDM) for real-time performance tracking
User Experience:
Users of the AP824A – HPE Storage Transceivers will appreciate its straightforward installation process and reliable performance. The transceiver’s compatibility with B-series switches ensures seamless integration into existing networks, reducing the complexity of deployment. The inclusion of Digital Diagnostic Monitoring enhances the user experience by providing real-time insights into the transceiver’s performance, enabling proactive network management.
Why Choose AP824A – HPE Storage Transceivers?
Choosing the AP824A – HPE Storage Transceivers means investing in a high-speed, reliable, efficient networking solution. Its ability to support long-range data transmission over single-mode fiber makes it ideal for large-scale enterprise environments. The transceiver’s energy efficiency, real-time performance monitoring, and easy installation process make it a valuable addition to any network infrastructure.
Product Specifications:
Specification | Details |
---|---|
Brand | HPE |
Model | AP824A |
Product Name | HP 10GbE LW B-series SFP+ Transceiver |
Form Factor | SFP+ |
Interface | 10GbE |
Compatibility | B-series |
Transmission Distance | Up to 10 kilometers |
Connector Type | LC |
Wavelength | 1310nm |
Data Transfer Rate | 10.3125 Gbps |
Fiber Type | Single-mode fiber (SMF) |
Temperature Range | 0°C to 70°C |
Regulatory Compliance | RoHS |
Data Interface | 10 Gigabit Ethernet |
MTBF | 1,000,000 hours |
Power Consumption | 1.5W maximum |
Dimensions | 56.5 mm x 13.4 mm x 11.85 mm |
Hot Swappable | Yes |
Digital Diagnostic Monitoring | Yes |
Warranty | One year |
Installation Steps:
- Power Down the Device: Ensure the network device is powered off before installation.
- Insert the Transceiver: Carefully insert the AP824A – HPE Storage Transceivers into the SFP+ port of the compatible B-series switch.
- Connect the Fiber Cable: Attach the single-mode fiber (SMF) cable to the LC connector.
- Power On the Device: Once securely connected, power on the network device.
- Verify Operation: Use network monitoring tools to check that the transceiver is functioning correctly and monitor its performance via the DDM feature.
Uses of the AP824A – HP Storage Transceivers:
The AP824A – HP Storage Transceivers are ideal for long-range data communication in enterprise networks, data centers, and other environments where reliable and fast data transfer over extended distances is essential. It is beneficial for connecting network devices across large buildings or campuses, ensuring that data is transmitted quickly and efficiently.
What is the Price of AP824A – HPE Storage Transceivers in BD?
Discover a wide range of accessories and storage at unbeatable prices in Bangladesh with Crystal Vision Solutions. We offer all-branded Storage Transceivers, including AP824A – HPE Storage Transceivers at the best prices in BD. To know the current price of this product please call us or visit our shop.
FAQs:
1. What does the AP824A support the maximum distance?
The AP824A – HPE Storage Transceivers support a maximum transmission distance of 10 kilometers over single-mode fiber.
2. Is the AP824A compatible with all HPE switches?
This transceiver is specifically designed for compatibility with B-series switches.
3. How do I install the AP824A?
Installation is simple: insert the transceiver into an SFP+ port, connect the fiber cable, and power on the device.
4. What is the data transfer rate of the AP824A?
The AP824A – HP Storage Transceivers offers a data transfer rate of 10.3125 Gbps.
5. Does the AP824A support Digital Diagnostic Monitoring?
Yes, the AP824A – HP Storage Transceivers supports Digital Diagnostic Monitoring for real-time performance tracking.
