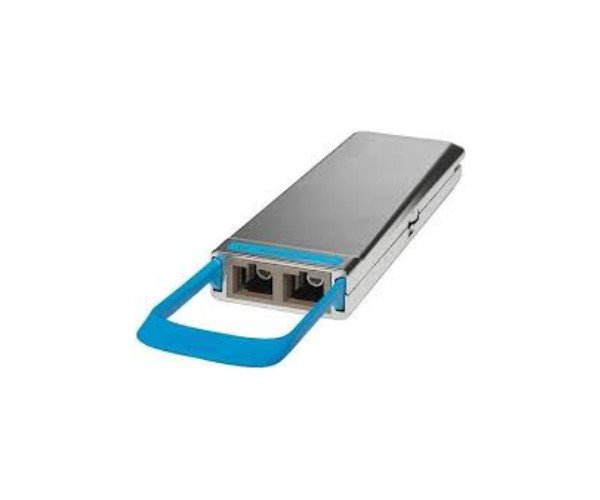

Cisco CPAK-100G-LR4 Transceiver Module

The Cisco CPAK-100G-LR4 Transceiver Module is a high-density, low-power solution designed for optimized 100 Gigabit Ethernet connections. Supporting IEEE 802.3ba compliance, it provides efficient data transmission up to 10 kilometers. Therefore, making it ideal for inter-data center links and enterprise-level connectivity. Its small footprint and energy-efficient design enable higher port density and front-panel bandwidth. This allows you to maximize space and minimize power costs compared to other transceiver formats like CFP2 and CFP.

The CPAK-100G-LR4 transceiver module uses four LAN wavelength-division multiplexing (WDM) channels, each at 25 Gbps, to deliver an aggregate speed of 100 Gbps. It includes Digital Optical Monitoring (DOM) for real-time data on performance. Thus, enabling proactive maintenance and ensuring uptime in high-demand networks. Built with Cisco’s CMOS photonic technology, this module guarantees reliable, high-speed connectivity with lower power consumption and scalable performance for expanding network requirements.

Cisco CPAK-100G-LR4 Transceiver Module Specifications

Key Features

• 100G Ethernet Support: Enables high-speed connectivity for data-intensive applications over a 100 Gbps link.
• Long Reach: Extends up to 10 km over standard single-mode fiber (SMF, G.652).
• Compact Form Factor: Cisco CPAK design offers lower power consumption than CFP and CFP2 transceivers.
• Digital Optical Monitoring (DOM): Real-time performance monitoring enhances operational reliability.
• WDM Technology: Uses four distinct wavelengths, with each lane supporting 25 Gbps, for superior performance and efficiency.
• IEEE Compliance: Fully interoperable with IEEE 100GBASE-LR4 and SR10 standards.

Applications

• Enterprise Data Centers: Perfect for high-speed, low-power inter-data center links.
• Service Provider Networks: Supports reliable, long-distance connectivity for ISP edge networks and high-capacity backbone links.
• Large Enterprise Networks: Ideal for multi-site deployments needing extensive bandwidth over longer distances.

What is the price of Cisco CPAK-100G-LR4 Transceiver Module in Bangladesh (BD)

Find competitive pricing on Cisco 100G Transceiver Modules at Crystal Vision Solutions, your trusted source for high-performance networking equipment. These transceivers support ultra-fast data transfer and seamless connectivity, ideal for large-scale enterprise and data center applications. When you buy from Crystal Vision Solutions, you gain access to genuine Cisco products, expert customer support, and fast delivery, ensuring a smooth purchasing experience for all your high-speed networking needs.
