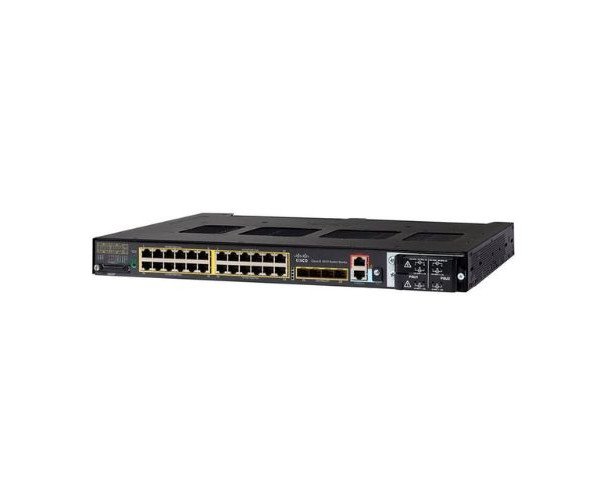

Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch
- Brand: Cisco
- Model: IE-4010-4S24P
- Total Ports: 28
- Uplinks: 4 SFP (100MB/1G)
- Copper Ports: 24 (10/100/1000M PoE/PoE+)
- Default Software: LAN Base feature set (upgradable to IP Services license)
- Hardware: 1 GB DRAM, 128 MB Flash, SD slot, RJ-45 & mini-USB
About the Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch
The Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch is designed for industrial environments that demand high-performance, reliable, and scalable networking. This rugged switch supports industrial applications and operates in extreme environments. Equipped with advanced features, 24 PoE+ ports, and four uplink SFP ports, it offers dependable connectivity and flexibility for industrial deployments. With Cisco’s LAN Base feature set and optional IP Services license, this switch is an ideal solution for real-time data transfer and critical communication in factories, transportation, and utilities.
Specifications
| Specification | Details |
|---|---|
| Brand | Cisco |
| Model | IE-4010-4S24P |
| Total Ports | 28 |
| Uplinks | 4 SFP (100MB/1G) |
| Copper Ports | 24 (10/100/1000M PoE/PoE+) |
| Default Software | LAN Base feature set (upgradable to IP Services license) |
| Hardware | 1 GB DRAM, 128 MB flash, SD slot, RJ-45 & mini-USB |
| Alarm | 4 alarm inputs, 1 Form C output relay |
| Dimensions | Varies with power supply; 1.75 x 17.5 x 14.0–15.18 in. |
| Weight | Without power: 12.1 lb, varies with power supply |
| Power Consumption | Max 90W (without PoE) |
| Accessories | SD-IE-1GB, L-IE4000-RTU, rack mount brackets |
| Forwarding Bandwidth | 28 Gbps (line rate) |
| Switching Bandwidth | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| Queues | 4 egress |
| MAC Addresses | 16,000 |
| IGMP Multicast | 1,000 groups |
| VLANs | 1,000 |
| IPv4 Security ACEs | 1,000 (default TCAM template) |
| NAT Translation | 128 unique subnet NAT entries, scalable for large setups |
Description
The Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch brings enterprise-level performance to demanding industrial applications. This industrial-grade switch is built to withstand harsh environments, such as manufacturing floors, substations, and transportation hubs. With 28 total ports, including 24 PoE+ capable Gigabit Ethernet ports, it offers extensive connectivity options. The IE-4010-4S24P also features four SFP uplinks for fast and reliable fiber optic connections, making it versatile for diverse network topologies. It comes with Cisco’s LAN Base feature set and supports an optional upgrade to IP Services, allowing users to scale network capabilities as requirements grow. Its robust alarm input/output setup enables timely alerts for rapid issue resolution.
The IE-4010-4S24P incorporates essential hardware features like 1 GB of DRAM, 128 MB of onboard flash memory, and an SD slot for additional storage. This switch’s power supply flexibility, along with 90W maximum power consumption (excluding PoE), suits it for continuous, efficient operation. Designed with reliability and network redundancy in mind, this switch supports up to 28 Gbps forwarding bandwidth and 56 Gbps switching bandwidth, allowing fast data processing with high throughput and minimal latency.
User Experience
The Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch is designed for seamless integration into industrial networks. Users appreciate the straightforward setup with Cisco’s LAN Base feature set and the ease of upgrading to IP Services if needed. The switch’s rugged construction and compliance with industrial standards offer peace of mind for operation in extreme environments, from manufacturing to critical infrastructure facilities. Users benefit from high uptime, with features like 4 egress queues, support for up to 1,000 VLANs, and advanced security features, ensuring both scalability and security.
The PoE+ capability on 24 ports simplifies connectivity for powered devices, reducing infrastructure costs and installation time. With multiple accessories like spare SD cards and rack mount brackets, deployment options are flexible. The console’s mini-USB and RJ-45 connectors facilitate efficient management, while the comprehensive alarm system helps proactively monitor and maintain network health.
Why Choose the Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch?
The Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch stands out for its industrial-grade resilience and network flexibility. Its combination of 24 PoE+ ports and four SFP uplinks provides versatile connectivity for various industrial setups, allowing easy adaptation to network demands. This switch’s LAN Base feature set offers solid foundational functionality, and the option to upgrade to IP Services provides scalable network control. Users also appreciate the switch’s advanced security features, such as MAC security access control entries and IGMP support, which make it ideal for securing critical infrastructure.
With fast forwarding rates, redundant power options, and Cisco’s trusted quality, the Cisco IE-4010-4S24P is an exceptional choice for any industrial network seeking reliability, speed, and security.
What is the Price of Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch in Bangladesh?
Crystal Vision Solutions offers high-quality networking equipment, including the Cisco IE-4010-4S24P ONE Industrial Ethernet 4000 Series Switch, at the best market price in Bangladesh. We ensure optimal performance with products tailored to meet your business needs, all at a competitive BD price. Get the best price in BD and reliable service for all your networking solutions across the country.
