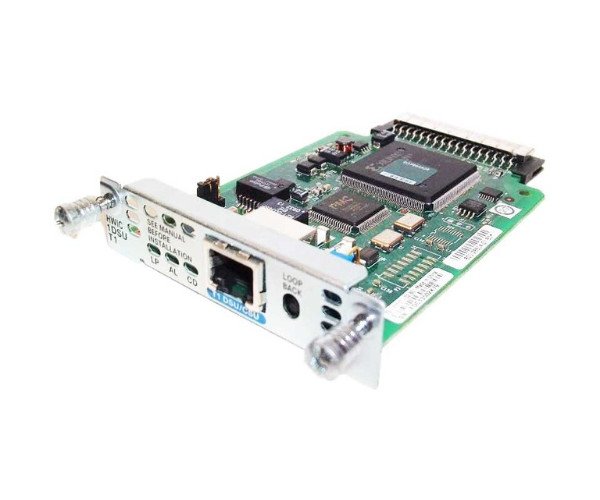

The Cisco WIC-1DSU-T1-V2 WAN Interface Card enhances the performance and flexibility of Cisco Integrated Services Routers. Therefore, providing a simplified solution for connecting to T1 or fractional T1 networks. By integrating Data Service Unit (DSU) and Channel Service Unit (CSU) functions into one compact card, the WIC-1DSU-T1-V2 minimizes the need for external equipment, saving both space and costs. This card offers a data transfer rate of up to 1.544 Mbps. Thus, making it ideal for small and medium-sized businesses seeking secure WAN connectivity. Its advanced configuration options ensure optimized performance, while robust security features guarantee the safety of data transmissions.
Cisco WIC-1DSU-T1-V2 Router WAN Interface Card Specifications
| Specification | Details |
|---|---|
| Product Name | Updated 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card |
| Product Model | WIC-1DSU-T1-V2 |
| Brand | Cisco |
| Interface Type | 1-Port T1/Fractional T1 |
| Connectivity Technology | Wired |
| Ports | 1 x Network – T1/Fractional T1 – RJ-48 |
| Compatibility | Cisco Integrated Services Routers: 1700, 1800, 2600, 2800, 3700, 3800 series |
| Transmission Speed | Up to 1.544 Mbps |
| Data Link Protocol | T1 |
| Line Rate | T1/Fractional T1 |
| Line Coding Format | AMI, B8ZS |
| Framing Format | ANSI T1.403, D4, ESF |
| Diagnostic Features | Loopback, CSU/DSU |
| Power | Powered through router |
| Configuration Features | Integrated CSU/DSU |
| Digital Signaling Protocol | HDLC, Frame Relay, PPP |
| Management | SNMP, Telnet |
Key Features
- Integrated DSU/CSU: Simplifies the setup process by eliminating the need for external equipment.
- T1 and Fractional T1 Support: Provides flexibility in choosing network bandwidth based on your business needs.
- Advanced Configuration Options: Allows for fine-tuned performance optimization.
- Enhanced Security Features: Protects sensitive data during transmission.
- Compact Design: Saves space and reduces the complexity of network setups.
Applications of Cisco WIC-1DSU-T1-V2
- WAN Connectivity: Ensures reliable WAN connections for small and medium-sized businesses through T1 and fractional T1 networks.
- Branch Office Networks: Ideal for branch offices needing secure and efficient data transmission.
- Disaster Recovery: Supports secure data backup and disaster recovery solutions over T1 lines.
Price of Cisco WIC-1DSU-T1-V2 Router WAN Interface Card in Bangladesh
Cisco network modules and cards provide reliable, high-performance solutions for expanding and optimizing your network infrastructure. Designed for scalability and flexibility, these modules and cards enhance your network’s speed, capacity, and overall efficiency.
When you buy Cisco network modules and cards from Crystal Vision Solutions, you get genuine products, competitive prices, and expert support. Crystal Vision Solutions offers fast shipping and personalized guidance, ensuring you receive the right products for your networking needs.
