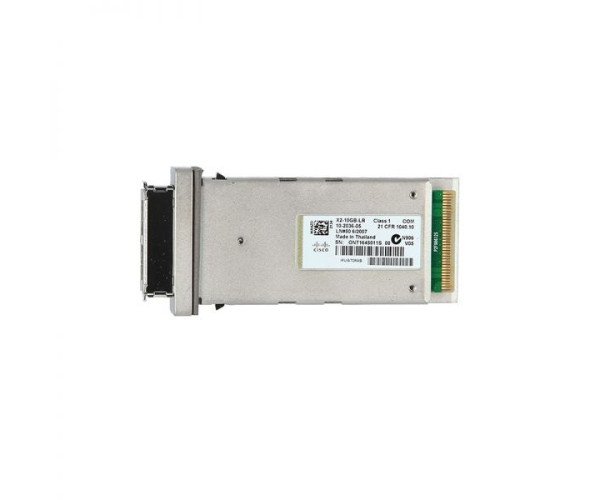

The Cisco X2-10GB-LRM X2 Transceiver Module provides a fast, efficient solution for 10 Gigabit Ethernet (10GbE) connectivity over multimode fiber (MMF), making it ideal for short-distance, high-bandwidth applications. Operating with a data rate of 10 Gbps and at a wavelength of 1310 nm, this module supports data transmission over distances up to 220 meters (722 feet), making it a practical and cost-effective choice for data centers, campus networks, and enterprise environments where short-reach fiber links are needed.
Designed to meet the IEEE 802.3aq standard, the X2-10GB-LRM transceiver module provides reliable connectivity with built-in Digital Optical Monitoring (DOM), allowing real-time tracking of critical parameters like temperature, voltage, and optical output power. With a hot-swappable form factor, it enables easy installation, ensuring minimal downtime during maintenance or upgrades. For optimal performance with certain MMF cables, a mode conditioning patch cord may be recommended, particularly when using older OM1 and OM2 fibers.
Cisco X2-10GB-LRM Transceiver Module Specifications
| Property | Specification |
|---|---|
| Product Type | X2 Transceiver Module |
| Data Transfer Rate | 10 Gbps |
| Cabling Type | 10GBase-LRM (Multimode Fiber) |
| Wavelength | 1310 nm |
| Maximum Distance | 220 meters (722 feet) |
| Form Factor | X2 |
| Hot-Swappable | Yes |
| Digital Optical Monitoring (DOM) | Yes |
| Standards Compliance | IEEE 802.3aq |
| Dimensions | 0.9″ H x 0.7″ W x 2.8″ D |
| Power Consumption | Refer to product datasheet |
Key Features
- 10GbE Connectivity: Delivers high-speed data transfer at 10 Gbps, suited for bandwidth-intensive environments.
- Multimode Fiber Compatibility: Operates over MMF, allowing for cost-effective and practical deployments over shorter distances.
- Digital Optical Monitoring (DOM): Tracks real-time operating parameters for proactive maintenance and optimized performance.
- Hot-Swappable Design: Enables easy installation and removal, minimizing network disruptions.
- Standards Compliant: Meets IEEE 802.3aq standards. Thus, ensuring compatibility across Cisco network devices.
Applications
- Data Centers: Supports short-range, high-speed links within data centers and server rooms.
- Campus and Building Networks: Ideal for connecting network devices within a campus or across buildings over shorter fiber links.
- Enterprise Backbones: Delivers reliable, high-speed connections for internal network backbones within enterprise environments.
- Cost-Effective MMF Deployments: Reduces costs by utilizing multimode fiber instead of single-mode for short-distance connections.
What is the price of Cisco X2-10GB-CX4 Transceiver Module in Bangladesh (BD)Â
Find competitive pricing on Cisco X2 Transceivers Modules at Crystal Vision Solutions, your trusted source for high-performance networking equipment. These transceivers support ultra-fast data transfer and seamless connectivity, ideal for large-scale enterprise and data center applications. When you buy from Crystal Vision Solutions, you gain access to genuine Cisco products, expert customer support, and fast delivery. Thus, ensuring a smooth purchasing experience for all your high-speed networking needs.
