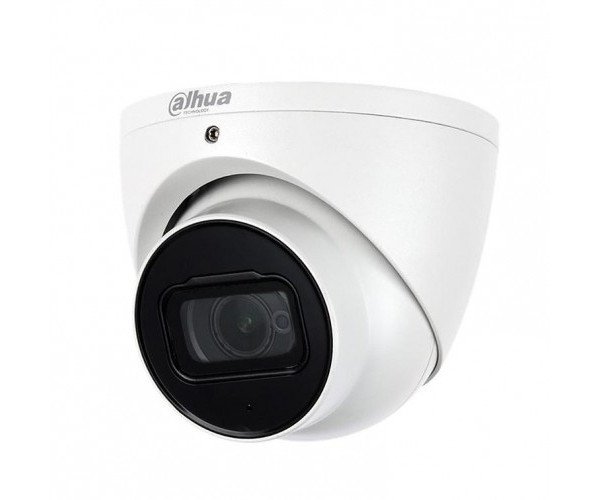

Dahua HAC-HDW1200TLP-A: The Best Security Camera for Your Business
| Category | Specification |
|---|---|
| General | |
| Casing | Inner core: Metal+Plastic; Cover: Plastic |
| Dimensions | Φ97.0mm×85.8mm (Φ3.82″×3.38″) |
| Weight | 0.22 Kg |
| Pan/Tilt/Rotation | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F); <95% (non-condensation) |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F); <95% (non-condensation) |
| Power Supply | 12V±30% DC |
| Power Consumption | Max 3.6W (12V DC, IR on) |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 1920 (H)×1080 (V), 2MP |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s; NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| IR Distance | 30m (98.42ft) |
| IR On/Off Control | Auto; manual |
| IR LEDs | 1 |
| Lens | |
| Lens Type | Fixed-focal |
| Iris Type | Fixed iris |
| Mount Type | M12 |
| Focal Length | 2.8mm; 3.6mm |
| Max Aperture | F1.85/F2.0 |
| Angle of View | 2.8mm: 118°×103°×59° (diagonal×horizontal×vertical); 3.6mm: 103.8°×87.5°×47° (diagonal×horizontal×vertical) |
| Close Focus Distance | 0.5m (1.64ft)/0.9m (2.95ft) |
| Video | |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480) |
| Frame Rate | CVI: PAL: 1080P@25fp; NTSC: 1080P@30fp; AHD: PAL: 1080P@25fp; NTSC: 1080P@30fp; TVI: PAL: 1080P@25fp; NTSC: 1080P@30fp; CVBS: PAL: 960H, NTSC: 960H |
| Video Output | CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night | |
| Auto Switch | Auto switch by ICR |
| BLC Mode | |
| BLC Mode | BLC/HLC/DWDR |
| Gain Control | |
| Gain Control | Auto; Manual |
| Noise Reduction | |
| Noise Reduction | 2D NR |
| Interface | |
| Audio Interface | Built-in mic (-A) |
| Video Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Warranty | |
| Warranty | 1 Year |
