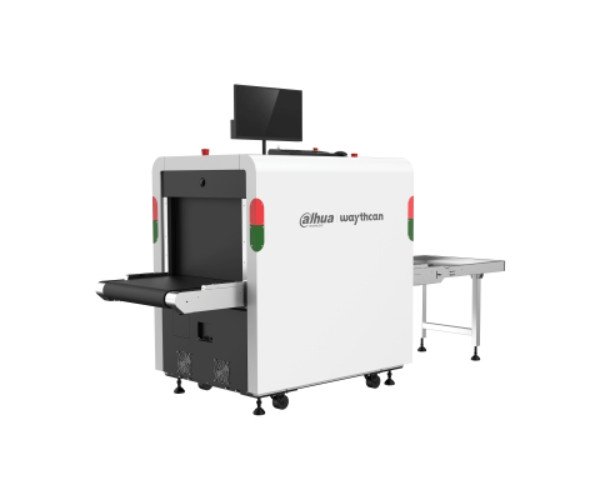

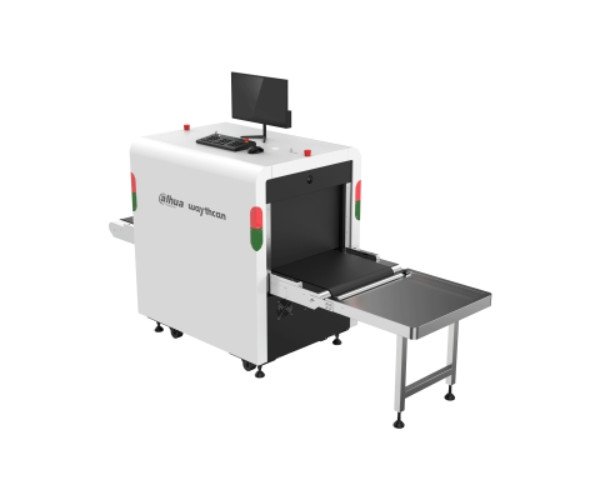

Dahua ISC-M6040E X-Ray Baggage Scanner
- X-ray Imaging: Real-time, AI-driven recognition of high-risk items
- Modes: Security screening and video surveillance
- Detection Type: Guns, liquids, electronics, and other high-density items
- Display: 21.5” monitor, dual view with super enhancement options
- Storage Capacity: 1 million images, RAID 0/1/5 supported
- Tunnel Size: 620 mm × 420 mm
The Dahua ISC-M6040E X-Ray Baggage Scanner is an intelligent security solution that combines advanced X-ray imaging and AI-driven object recognition for high-efficiency threat detection. This system scans items passing on the conveyor belt, identifying the shape, size, and density of objects within bags and packages. It recognizes items like knives, spray cans, guns, and lighters, providing an adjustable high-density alert feature for rapid threat identification. AI overlays highlight suspected objects, which are tracked in real-time on a 21.5″ monitor.
The scanner’s dual security screening and surveillance mode provides real-time monitoring, enabling personnel to switch between inspection processes and video surveillance as needed. With intelligent analysis tools like super enhancement, edge enhancement, and high-density alerts, the ISC-M6040E effectively eliminates blind spots. The device is equipped with two integrated cameras to monitor baggage from entry to exit, while the RAID configuration ensures data security by managing hard disk storage.
Dahua ISC-M6040E X-Ray Baggage Scanner Specifications
| Feature | Details |
|---|---|
| X-ray Imaging | Real-time, AI-driven recognition of high-risk items |
| Modes | Security screening and video surveillance |
| Detection Type | Guns, liquids, electronics, and other high-density items |
| Display | 21.5” monitor, dual view with super enhancement options |
| Storage Capacity | 1 million images, RAID 0/1/5 supported |
| Tunnel Size | 620 mm × 420 mm |
| Conveyor Load Capacity | Up to 170 kg (374.78 lb) |
| Sensitivity | Wire resolution 40 AWG, steel penetration up to 41 mm |
| Data Export | Supports USB and network-based storage and backup |
| Safety Certifications | CE, FCC, RoHS, IEC standards |
| Power Supply | 220V–240V, 50/60 Hz; 100V–130V optional |
| Power Consumption | 450W typical, 1KW maximum |
| Temperature Control | Automated fan speed based on mainboard temperature |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 1993 mm × 870 mm × 1297 mm (78.46″ × 34.25″ × 51.06″) |
| Weight | Net: 430 kg; Gross: 600 kg |
Key Features
- High-Density Detection: Uses AI-enhanced overlays and customizable alerts for high-risk items.
- Dual Operation Mode: Supports both security screening and video surveillance for comprehensive monitoring.
- AI-Driven Object Recognition: Detects and tracks 22 high-risk objects, including firearms, liquids, and electronics.
- Real-Time Image Processing: Includes high-energy, super, and edge enhancements for accurate threat identification.
- Power Management: Power-saving mode and intelligent fan speed control for efficient operation.
- Secure Data Storage: Supports RAID 0/1/5 for enhanced data security, with storage up to 4 x 10TB.
Applications
- Transportation Hubs: Airports, bus stations, and railway terminals.
- Public Event Venues: Effective scanning at entrances of large venues.
- Government Facilities: Provides secure, real-time scanning for sensitive locations.
Price of Dahua ISC-M6040E X-Ray Baggage Scanner in Bangladesh (BD)
Buy the Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support, Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
