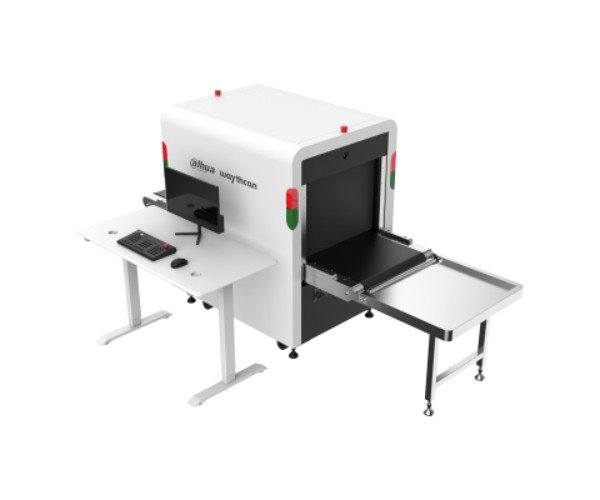

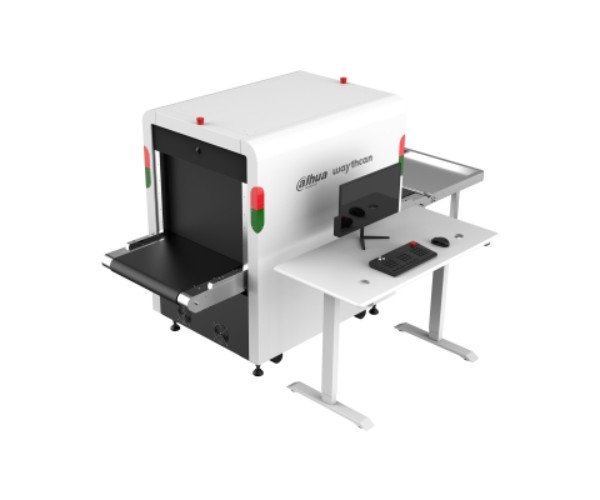

The Dahua ISC-M6550 X-Ray Baggage Scanner is a high-performance security solution, designed to enhance safety in locations such as airports, train stations, and event venues. Equipped with a 650 mm x 500 mm tunnel, it uses a powerful 160 kV X-ray generator for detailed imaging. Advanced AI algorithms overlay suspected items on screen, enabling security staff to quickly identify threats like guns, knives, and explosive materials. Supporting 23 object types, the scanner provides flexible danger level alerts with configurable triggers such as voice prompts and light alarms, ensuring rapid response.
Offering real-time monitoring with built-in and network camera compatibility, the ISC-M6550 can store up to one million images with corresponding danger levels, making it easy to retrieve historical data. Additionally, it supports RAID configurations for advanced storage management and includes self-diagnostics for seamless maintenance. The enhanced image-processing suite includes high-density alerts, penetration scanning, and super enhancement, providing crystal-clear details of each item in the scanned package.
Dahua ISC-M6550 X-Ray Baggage Scanner Specifications
| Feature | Details |
|---|---|
| Tunnel Size | 650 mm x 500 mm (25.59″ x 19.69″) |
| X-ray Source | 160 kV, sealed oil bath with forced air cooling |
| Penetration (Steel) | Typical: 39 mm; Standard: 35 mm |
| Resolution | 40 AWG (0.08 mm) |
| Conveyor Speed | 0.2 m/s |
| Max Belt Load | 170 kg (374.78 lb) |
| Alarm Settings | Danger levels: High risk, warning, safe; triggers I/O alarm, voice, light alarm |
| Image Storage | Up to 1 million images |
| Image Processing | High-density alert, penetration, super enhancement, color/B&W, pseudo color |
| Monitoring & Playback | 12-channel input, IP and PoE camera support, real-time monitoring |
| Connectivity | RS232, Ethernet, USB 3.0, 2-channel DVI |
| Operating Voltage | 220 VAC ±10%, 50/60 Hz |
| Power Consumption | Typical: 450 W; Max: 1 kW |
| Operating Temperature | 0 °C to +45 °C (32 °F to +113 °F) |
| Dimensions | 2024.9 mm x 916 mm x 1434.7 mm (79.72″ x 36.00″ x 56.48″) |
| Certifications | ISO 1600 (film safety), CE, FCC |
Key Features
- AI Recognition & Alerts: Automatic detection and overlay for up to 23 object types with configurable danger levels.
- Image Processing Suite: Includes high-energy and super enhancements, penetration scanning, and density alerts.
- Flexible Monitoring: Built-in cameras, IP, and PoE camera compatibility for live and recorded footage.
- Data Storage & Management: RAID-configurable storage with a capacity for 1 million images.
- Seamless Connectivity: RS232, Ethernet, and USB ports for network integration, live monitoring, and report export.
- Self-diagnostic Maintenance: Real-time system monitoring for component health and error codes.
Applications
- Airports and Transportation: Enhances security with detailed imaging and fast threat identification.
- Public Venues and Events: Controls potential threats efficiently, suitable for high-traffic areas.
- Corporate and Government Buildings: Ensures secure entry and exit points with customizable alerts and logging.
Price of Dahua ISC-M6550 X-Ray Baggage Scanner in Bangladesh (BD)
Buy the Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support, Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
