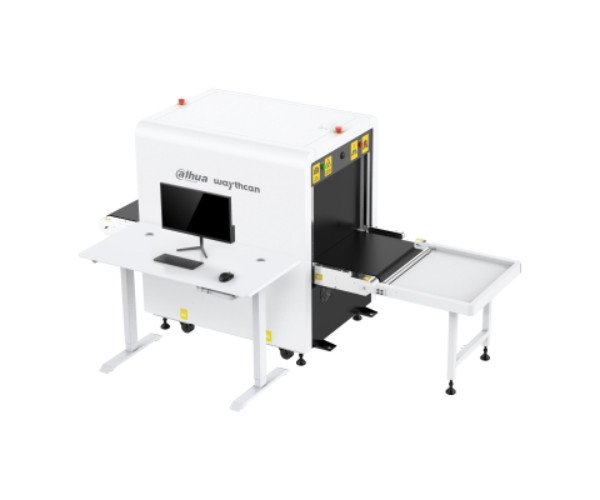

The Dahua ISC-M6550A X-Ray Baggage Scanner is a high-precision security solution designed to enhance security screening with real-time image analysis and AI-supported object recognition. This advanced scanner uses powerful X-ray technology to create sharp, detailed images of package contents, effectively identifying items like knives, spray cans, bottled liquids, and electronic devices. Its dual-view imaging system and enhanced effects, such as penetration and density scanning, offer operators a comprehensive view of potential threats, making it ideal for environments requiring meticulous security.
With customizable danger level settings, the ISC-M6550A prioritizes security by initiating voice prompts, alarms, and conveyor stoppage for high-risk items. AI-generated overlays highlight suspected items in real time, ensuring accuracy as the package moves along the conveyor. The device supports up to one million images stored, searchable by time or danger level, to provide extensive data management and report generation capabilities.
Built for convenience and robust security, this model’s intuitive local GUI and web-based interface allow seamless configuration, while built-in and IP camera options offer live video, storage, and playback capabilities. Integrated maintenance management tools, such as system diagnostics and temperature control, ensure the ISC-M6550A remains reliable in demanding environments.
Dahua ISC-M6550A X-Ray Baggage Scanner Specifications
| Feature | Details |
|---|---|
| Tunnel Size | 650 mm × 500 mm (25.59” × 19.69”) |
| X-ray Source | 80 kV with oil-cooled sealed bath |
| Penetration | 8 mm |
| Conveyor Speed | 0.2 m/s |
| Maximum Belt Load | 80 kg (176.36 lb) |
| User Interface | Local GUI; Web-based interface |
| Recognition Types | 21 objects, including knives, lighters, bottles, laptops, tools, and mobile phones |
| Alarm Configuration | High-risk, warning, safe, with customizable alerts |
| Storage Capacity | Supports up to 1 million images |
| System Diagnostics | Self-inspection, image enhancement options, error codes |
| Networking | Ethernet, RS232, USB, and HDMI output, with ONVIF support |
| Power Supply | 220–240 VAC, 50/60 Hz (100–130 VAC option) |
| Power Consumption | Typical: 220 W; Maximum: 650 W |
| Operating Temperature | 0°C to +45°C (32°F to +113°F) |
| Dimensions | 2,024 mm x 915.6 mm x 1401.8 mm (79.69” × 36.05” × 55.19”) |
| Weight | Net: 420 kg (925.94 lb); Gross: 520 kg (1,146.4 lb) |
| Certifications | ISO 1600 (film safety), IP protocols, CE, FCC |
Key Features
- AI Recognition and Alerts: Recognizes 21 types of objects, triggering AI overlays and customizable alerts.
- Dual-View X-ray Imaging: Provides simultaneous views with enhanced penetration and density for clearer analysis.
- Custom Danger Levels: Adjustable settings categorize risk and activate alerts.
- Extensive Image Storage: Capable of storing up to one million images, with easy search and export.
- Live Surveillance: Two built-in cameras and optional network camera compatibility for full inspection monitoring.
- System Diagnostics: Self-diagnosis, maintenance logs, and temperature monitoring for reliable operation.
Applications
- Airports and Transit Hubs: Screens for dangerous items with speed and accuracy.
- Government Facilities: Adds a layer of security in restricted areas.
- Public Venues: Ensures the safety of large crowds in event spaces.
Price of Dahua ISC-M6550A X-Ray Baggage Scanner in Bangladesh (BD)
Buy the Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support, Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
