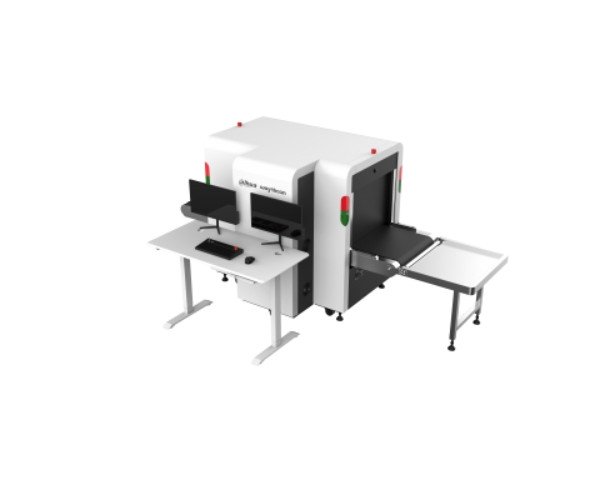

Dahua ISC-M6550D X-Ray Baggage Scanner
- Imaging Technology: Dual-view X-ray generator with high-resolution AI-powered imaging
- Detection Capability: Recognizes 23 types of items including weapons, bottled liquids, and electronics
- Danger Levels: Configurable levels with sound, light, and voice alarms
- Tunnel Size: 650 mm × 500 mm (25.59″ × 19.68″)
- X-ray Tube Anode Voltage: 160 kV
- Conveyor Speed: 0.2 m/s
The Dahua ISC-M6550D X-Ray Baggage Scanner is a powerful, intelligent security screening solution designed to streamline baggage inspection processes with unmatched accuracy and efficiency. Featuring dual-view X-ray imaging and an AI recognition algorithm, this scanner accurately detects and identifies prohibited items from different angles, thus ensuring high-precision inspections. With image enhancements like high-density alerts and super-enhancement effects, it can detect contraband such as weapons, liquid containers, and electronics within a single pass.
This versatile scanner also offers real-time visual and audio alerts based on custom danger levels. Therefore, streamlining workflow and expediting threat identification. Operators benefit from advanced features like AI overlays that track suspicious objects, comprehensive report generation, and video surveillance with dual built-in cameras. The Dahua ISC-M6550D X-Ray Baggage Scanner excels in high-traffic environments like airports, border crossings, and critical infrastructures.
Dahua ISC-M6550D X-Ray Baggage Scanner Specifications
| Feature | Details |
|---|---|
| Imaging Technology | Dual-view X-ray generator with high-resolution AI-powered imaging |
| Detection Capability | Recognizes 23 types of items including weapons, bottled liquids, and electronics |
| Danger Levels | Configurable levels with sound, light, and voice alarms |
| Tunnel Size | 650 mm × 500 mm (25.59″ × 19.68″) |
| X-ray Tube Anode Voltage | 160 kV |
| Conveyor Speed | 0.2 m/s |
| Resolution | Typical 40 AWG; standard 38 AWG |
| Penetration (Steel) | Up to 41 mm |
| Noise Level | ≤ 63 dB |
| Storage Capacity | Up to 1 million images, supports RAID configurations |
| Network Ports | 1 RJ-45 Ethernet port, 4 RJ-45 PoE ports |
| Power Requirements | 220VAC ±15%, 50/60 Hz |
| Operating Temperature | 0 °C to +45 °C (32 °F to +113 °F) |
| Dimensions | 2,319 mm × 1,214 mm × 1,435 mm (91.30″× 47.79″ × 56.49″) |
| Weight | Net: 740 kg (1631.42 lb); Gross: 960 kg (2116.43 lb) |
| Ingress Protection | Dust, moth, and mold-resistant design |
Key Features
- Dual-View Imaging: Provides multi-angle X-ray views for thorough inspection.
- AI-Powered Detection: Recognizes 23 types of contraband, enhancing threat identification accuracy.
- Customizable Alerts: Set custom danger levels with linked alarms for immediate response.
- Intelligent Analysis: Real-time display and AI overlay for precise monitoring.
- Advanced Video Surveillance: Integrates with IP and PoE cameras for continuous inspection monitoring.
- High-Capacity Storage: Supports RAID configurations with up to 4 x 10TB HDD for image and video storage.
- User-Friendly Interface: 7-inch LCD touchscreen with remote monitoring options.
Applications
- Airports and Border Crossings: Fast, accurate screening of baggage and parcels.
- Public Events and Large Venues: Enhanced security screening for visitors and cargo.
- Critical Infrastructures: Efficiently monitors and detects contraband in high-security facilities.
Price of Dahua ISC-M6550D X-Ray Baggage Scanner in Bangladesh (BD)
Buy the Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support, Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
