Specification
Parameter | Details |
---|---|
Type | FortiGate 300E |
Interfaces and Modules | |
GE SFP Slots | 16 |
GE RJ45 Interfaces | 16 |
GE RJ45 Management Ports | 2 |
USB Ports | 2 |
RJ45 Console Port | 1 |
Local Storage | NIL |
Included Transceivers | 2 x SFP (SX 1 GE) |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 32 / 32 / 20 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 32 / 32 / 20 Gbps |
Firewall Latency (64 byte, UDP) | 3 μs |
Firewall Throughput (Packet per Second) | 30 Mpps |
Concurrent Sessions (TCP) | 4 Million |
New Sessions/Second (TCP) | 300,000 |
Firewall Policies | 10,000 |
IPsec VPN Throughput (512 byte) | 20 Gbps |
Client-to-Gateway IPsec VPN Tunnels | 50,000 |
SSL-VPN Throughput | 2.5 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 |
SSL Inspection Throughput (IPS, avg. HTTPS) | 3.9 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 2,500 |
Application Control Throughput (HTTP 64K) | 7 Gbps |
CAPWAP Throughput (1444 byte, UDP) | 5 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 48 |
Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
Maximum Number of FortiTokens | 5,000 |
Maximum Number of Registered FortiClients | 600 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 5 Gbps |
NGFW Throughput | 3.5 Gbps |
Threat Protection Throughput | 3 Gbps |
Dimensions and Power | |
Height x Width x Length | 1.75 x 17.0 x 15.0 inches |
44.45 x 432 x 380 mm | |
Form Factor | 1 RU |
AC Power Supply | 100–240V AC, 60–50 Hz |
Power Consumption (Average / Maximum) | 90 W / 173 W |
Current (Maximum) | 6A |
Heat Dissipation | 570 BTU/h |
Redundant Power Supplies | Optional |
Operating Environment and Certifications | |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Noise Level | 48 dBA |
Operating Altitude | Up to 7,400 ft (2,250 m) |

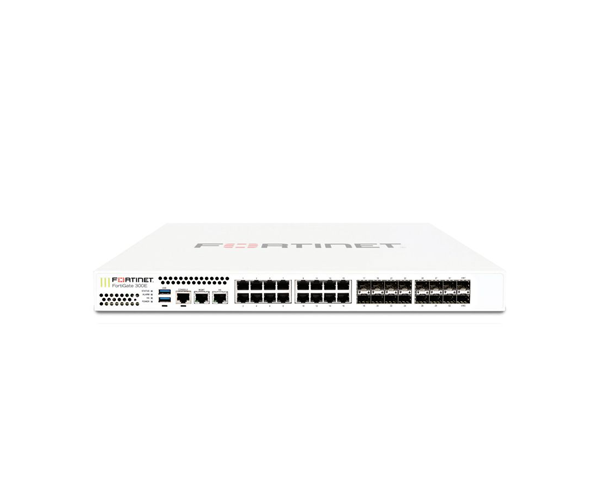

Fortinet FG-300E NGFW Middle-Range Series FortiGate 300E
Overview
The FG-300E is a firewall from the Fortinet NGFW Middle-range Series, providing next-generation firewall capabilities for mid-sized to large enterprises. It is flexible enough to be deployed at campus locations or enterprise branches.
Quick Spec
Parameter | Details |
---|---|
SKU | FG-300E |
Firewall | 32 Gbps |
IPS | 5 Gbps |
NGFW | 3.5 Gbps |
Threat Protection | 3 Gbps |
Interfaces | 16 x GE SFP slots |
16 x GE RJ45 ports | |
2 x GE RJ45 MGMT/HA Ports |
Product Details
Front View:
- 2 USB Ports
- 1 Console Port
- 2 x RJ45 MGMT Ports
- 2 x RJ45 HA Ports
- 16 x GE RJ45 Ports
- 16 x GE SFP Slots
Rear View:
- Similar to the front view with necessary components.
Optional Accessories & Spares
SKU | Description |
---|---|
FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
SP-FG300E-PS | AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F |
Related Products
Types | Model | Description |
---|---|---|
Basic Firewall | FG-300E | 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 16 x GE SFP slots, SPU NP6 and CP9 hardware accelerated |
1 Year Bundle | FG-300E-BDL-950-12 | FG-300E Hardware plus 1 Year 24×7 FortiCare and FortiGuard Unified (UTM) Protection (FG-300E & FC-10-00306-950-02-12) |
1 Year License | FC-10-00306-950-02-12 | 1 year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-300E |
3 Year Bundle | FG-300E-BDL-950-36 | FG-300E Hardware plus 3 Year 24×7 FortiCare and FortiGuard Unified (UTM) Protection (FG-300E & FC-10-00306-950-02-36) |
3 Year License | FC-10-00306-950-02-36 | 3 year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-300E |
5 Year Bundle | FG-300E-BDL-950-60 | FG-300E Hardware plus 5 Year 24×7 FortiCare and FortiGuard Unified (UTM) Protection (FG-300E & FC-10-00306-950-02-60) |
5 Year License | FC-10-00306-950-02-60 | 5 year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-300E |
Power Supply | SP-FG300E-PS | AC power supply for FG-300/301E and FG-500/501E |
Comparison with FG-301E
SKU | FG-300E | FG-301E |
---|---|---|
Firewall | 32 Gbps | 32 Gbps |
IPS | 5 Gbps | 5 Gbps |
NGFW | 3.5 Gbps | 3.5 Gbps |
Threat Protection | 3 Gbps | 3 Gbps |
Interfaces | 16 x GE SFP slots | 16 x GE SFP slots |
16 x GE RJ45 ports | 16 x GE RJ45 ports | |
2 x GE RJ45 MGMT/HA Ports | 2 x GE RJ45 MGMT/HA Ports | |
Local Storage | NIL | 2 x 240 GB SSD |
