Specification
Parameter | Details |
---|---|
Type | FortiGate 600D |
Interfaces and Modules | |
Hardware Accelerated GE SFP Slots | 2 |
Hardware Accelerated GE RJ45 Ports | 8 |
GE RJ45 Management Ports | 2 |
USB Ports (Client / Server) | 1 / 2 |
Console Port | 1 |
Onboard Storage | 1 x 120 GB SSD |
Included Transceivers | 2 |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 36 / 36 / 24 Gbps |
IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 36 / 36 / 24 Gbps |
Firewall Latency (64 byte, UDP) | 3 μs |
Firewall Throughput (Packet per Second) | 36 Mpps |
Concurrent Sessions (TCP) | 5.5 Million |
New Sessions/Second (TCP) | 270,000 |
Firewall Policies | 10,000 |
IPsec VPN Throughput (512 byte) | 20 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
Client-to-Gateway IPsec VPN Tunnels | 50,000 |
SSL-VPN Throughput | 2.2 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 |
SSL Inspection Throughput (IPS, avg. HTTPS) | 3.5 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 2,400 |
Application Control Throughput (HTTP 64K) | 9 Gbps |
CAPWAP Throughput (1444 byte, UDP) | 10 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 64 |
Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
Maximum Number of FortiTokens | 1,000 |
Maximum Number of Registered FortiClients | 2,000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
System Performance — Optimal Traffic Mix | |
IPS Throughput | 7 Gbps |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 4 Gbps |
NGFW Throughput | 3.8 Gbps |
Threat Protection Throughput | 3 Gbps |
Dimensions and Power | |
Height x Width x Length | 1.75 x 17 x 12.68 inches |
44.45 x 432 x 322 mm | |
Form Factor | 1 RU |
AC Power Supply | 100–240V AC, 60–50 Hz |
Power Consumption (Average / Maximum) | 126 W / 191 W |
Current (Maximum) | 110V/4A, 220V/2A |
Heat Dissipation | 650 BTU/h |
Redundant Power Supplies | Supports FRPS-100 |
Operating Environment and Certifications | |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Noise Level | 45 dBA |
Operating Altitude | Up to 9,843 ft (3,000 m) |
Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Fortinet FG-600D NGFW Middle-Range Series FortiGate 600D
Overview
The FG-600D is part of Fortinet’s Next-Generation Firewall (NGFW) middle-range series, designed for mid-sized to large enterprises. It offers comprehensive security features and can be deployed at the campus or data center edge as well as internal segments. The FG-600D delivers robust next-generation firewall capabilities, ensuring protection against a wide array of cyber threats.
Quick Spec
Parameter | Details |
---|---|
SKU | FG-600D |
Firewall | 36 Gbps |
IPS | 4 Gbps |
NGFW | 3.8 Gbps |
Threat Protection | 3 Gbps |
Interfaces | 2 x 10GE SFP+ slots |
8 x GE SFP slots | |
8 x GE RJ45 ports | |
2 x GE RJ45 management ports |
Product Details

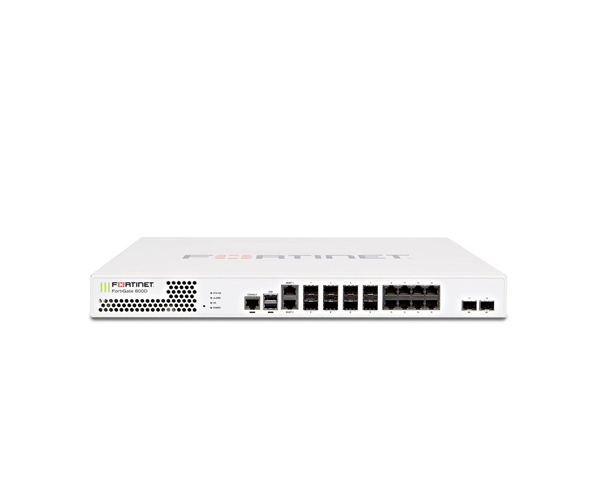

Front View:
- Console Port
- 2 USB Ports
- 2 x GE RJ45 Management Ports
- 8 x GE SFP Slots
- 8 x GE RJ45 Ports
- 2 x 10 GE SFP+ Slots
Rear View:
- FRPS Connector
Optional Accessories & Spares
SKU | Description |
---|---|
FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
FG-TRAN-SFP+LR | 10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
SP-CABLE-ADASFP+ | 10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
FRPS-100 | External redundant AC power supply for multiple FG models including FG-600D |
Specification
Fortinet FG-600D NGFW Middle-Range Series FortiGate 600D
Overview
The FG-600D is part of Fortinet’s Next-Generation Firewall (NGFW) middle-range series, designed for mid-sized to large enterprises. It offers comprehensive security features and can be deployed at the campus or data center edge as well as internal segments. The FG-600D delivers robust next-generation firewall capabilities, ensuring protection against a wide array of cyber threats.
Quick Spec
Parameter | Details |
---|---|
SKU | FG-600D |
Firewall | 36 Gbps |
IPS | 4 Gbps |
NGFW | 3.8 Gbps |
Threat Protection | 3 Gbps |
Interfaces | 2 x 10GE SFP+ slots |
8 x GE SFP slots | |
8 x GE RJ45 ports | |
2 x GE RJ45 management ports |
Product Details
Front View:
- Console Port
- 2 USB Ports
- 2 x GE RJ45 Management Ports
- 8 x GE SFP Slots
- 8 x GE RJ45 Ports
- 2 x 10 GE SFP+ Slots
Rear View:
- FRPS Connector
Optional Accessories & Spares
SKU | Description |
---|---|
FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
FG-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
FG-TRAN-SFP+LR | 10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
SP-CABLE-ADASFP+ | 10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
FRPS-100 | External redundant AC power supply for multiple FG models including FG-600D |
Comparison with FG-900D
SKU | FG-900D | FG-600D |
---|---|---|
Firewall | 52 Gbps | 36 Gbps |
IPS | 4.2 Gbps | 4 Gbps |
NGFW | 4 Gbps | 3.8 Gbps |
Threat Protection | 3 Gbps | 3 Gbps |
Interfaces | 2 x 10GE SFP+ slots | 2 x 10GE SFP+ slots |
16 x GE SFP slots | 8 x GE SFP slots | |
16 x GE RJ45 ports | 8 x GE RJ45 ports | |
2 x GE RJ45 management ports | 2 x GE RJ45 management ports |
