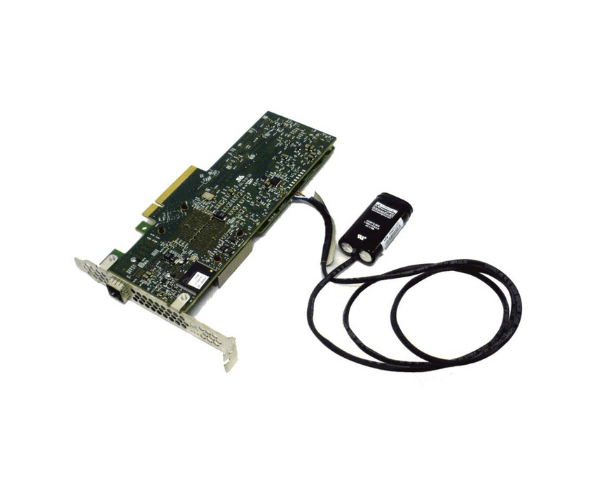

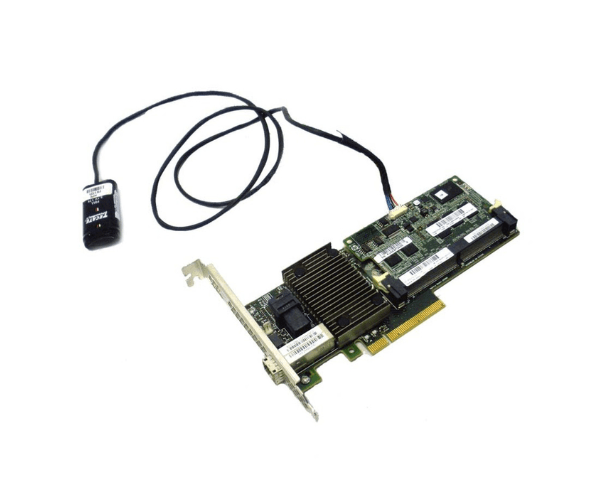

HP 698465-001 P1224 4i/4e 1GB FBWC RAID Controller
The HP 698465-001 P1224 4i/4e 1GB FBWC RAID Controller is an advanced storage solution designed to optimize data management and enhance system performance. Ideal for enterprise environments, this controller offers robust RAID capabilities, ensuring data redundancy and faster access speeds, making it an essential component for reliable server operations.
Specifications
| Feature | Description |
|---|---|
| Model | HP 698465-001 P1224 4i/ 4e 1GB FBWC RAID Controller |
| Cache Memory | 1GB FBWC (Flash-Backed Write Cache) |
| Internal Ports | 4 internal SAS/SATA ports |
| External Ports | 4 external SAS/SATA ports |
| RAID Levels Supported | 0, 1, 5, 6, 10, 50, 60 |
| Max Data Transfer Rate | 6Gb/s per port |
| Interface | PCIe 3.0 x8 |
| Controller Form Factor | Plug-in card |
| Battery Backup | Included |
| Operating Temperature | 10°C to 55°C |
| Dimensions | 16.8 cm x 6.9 cm |
User Experience
Users of the HP 6984 65-001 P1224 4i/4e 1GB FBWC RAID Controller appreciate its reliability and performance in managing data-intensive applications. The 1GB Flash-Backed Write Cache ensures data integrity even in the event of power loss, while the support for various RAID levels provides flexibility in configuring storage setups. Installation is straightforward, and the controller integrates seamlessly into existing server environments, allowing for efficient data management and enhanced system performance. This RAID controller is particularly favored in enterprise settings where uptime and data security are critical.
Why Choose the HP 698465-001 P1224 4i/4e 1GB FBWC RAID Controller?
The HP 698465-001 P12 24 4i/4e 1GB FBWC RAID Controller is the ideal choice for businesses that require reliable and high-performing storage solutions. With its robust RAID capabilities, including support for RAID 0, 1, 5, 6, 10, 50, and 60, this controller ensures data redundancy and optimal performance. The 1GB Flash-Backed Write Cache provides an extra layer of data protection, safeguarding information during unexpected power outages. Moreover, the HP 69 8465-001 P1224 4i/4e 1GB FBWC RAID Controller offers high data transfer rates of up to 6Gb/s per port, ensuring quick access to critical data. This product’s easy installation process and seamless integration into various server setups make it a top choice for IT professionals. By choosing the HP 698465-001 P1224 4i & 4e 1GB FBWC RAID Controller, businesses can enhance their data management, improve system performance, and ensure the security of their critical information.
Installation Steps
- Power Down the Server: Ensure the server is powered off and unplugged before starting the installation.
- Open the Server Case: Carefully remove the server cover to access the PCIe slots.
- Insert the RAID Controller: Locate an available PCIe x8 slot and gently insert the HP 6 98465-001 P1224 4i/4e 1GB FBWC RAID Controller into the slot.
- Secure the Controller: Use screws or the server’s built-in locking mechanism to secure the controller in place.
- Connect the Cables: Attach the internal and external SAS/SATA cables to the RAID controller, ensuring proper connections to the storage devices.
- Close the Server Case: Replace the server cover and secure it with screws.
- Power On the Server: Plug in the server and power it on.
- Configure the RAID Setup: Enter the server’s BIOS or RAID configuration utility to set up the desired RAID level and initialize the storage array.
- Verify Installation: Confirm that the HP 698465-001 P1224 4i & 4e 1GB FBWC RAID Controller is recognized by the system and functioning correctly.
What is the Price HP 698465-001 P1224 4i/4e 1GB FBWC RAID Controller in BD?
Crystal Vision Solutions specializes in server, including the HP 698465-001 P1224 4i and 4e 1GB FBWC RAID Controller, catering to diverse needs in Bangladesh. Our products ensure optimal performance and reliability, backed by competitive pricing and expert service to meet your business’s requirements effectively.
