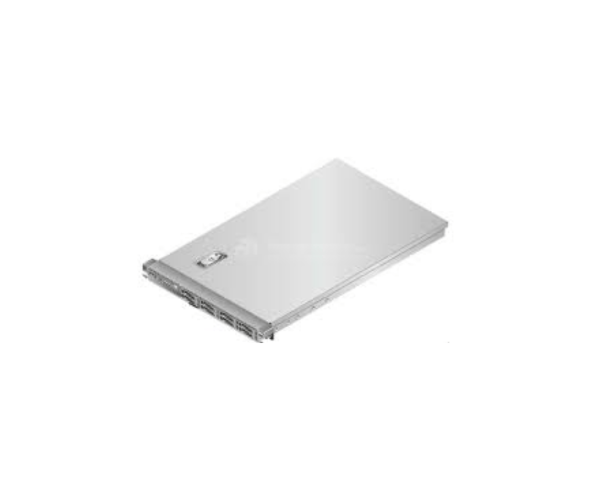

Buy the Huawei RH 1288A V2 server at the best price in Bangladesh
The Huawei RH1288A V2 Rack Server is a high-performance, flexible 1U server designed to meet the demands of modern data centers. Equipped with up to two Intel® Xeon® E5-2600 or E5-2600 v2 series processors, this server offers powerful computing capabilities. With robust memory support, extensive storage options, advanced RAID protection, and efficient system management, the RH1288A V2 ensures optimal performance, reliability, and scalability for enterprise applications.
| Attribute | Details |
|---|---|
| Form factor | 1U rack server |
| Processor | Up to two Intel® Xeon® E5-2600 v2 series processors:<br> – 10 cores (2.4 GHz), 8 cores (2.6 GHz), 6 cores (2.6 GHz), 4 cores (2.5 GHz)<br> – Max transmission speed per QPI link: 8.0 GT/s<br> – Max memory speed: 1866 MHz<br> – Max L3 cache: 25 MB |
| Up to two Intel® Xeon® E5-2600 series processors:<br> – 8 cores (2.2 GHz), 6 cores (2.5 GHz), 4 cores (2.4 GHz)<br> – Max transmission speed per QPI link: 8.0 GT/s<br> – Max memory speed: 1600 MHz<br> – Max L3 cache: 20 MB | |
| Chipset | Intel C602 |
| DIMM | – Up to 8 DIMM slots (4 DIMMs per processor) for RDIMMs or LRDIMMs<br> – Max memory capacity: 256 GB<br> – Max memory speed: 1866 MHz (E5-2600 v2)<br> – Data protection: ECC, memory mirroring, SDDC, memory sparing, lockstep |
| Storage | Hard Disk Configurations:<br> – RH1288A V2-8S: 8 x 2.5-inch SAS HDDs (7.2 TB), SATA HDDs (8 TB), or SSDs (4.8 TB)<br> – RH1288A V2-4L: 4 x 3.5-inch SAS HDDs (4 TB) or SATA HDDs (16 TB)<br> – Hot-swappable HDDs<br> RAID Support:<br> – RAID 0, 1, 10, 5, 50, 6, 60<br> – Supercapacitor<br> – RAID state migration, configuration memory, self-diagnosis, web-based configuration<br> – SAS adapter or SAS RAID controller card (up to 1 GB cache) |
| Network Ports | – Two GE ports (Intel I350)<br> – Four GE ports<br> – Two 10 GE ports |
| PCIe Expansion | – Three PCIe slots: full-height full-length, half-height half-length, non-standard RAID controller card slot<br> – Huawei PCIe intelligent network interface card (iNIC)<br> – Huawei SSD card<br> – NVS315 GPU |
| Ports | Front Panel:<br> – Two USB 2.0 ports<br> – One DB15 video port (RH1288A V2-8S)<br> Rear Panel:<br> – Two USB 2.0 ports<br> – One DB15 video port<br> – One DB9 serial port<br> – One RJ45 system management port<br> – One built-in USB port (for the embedded system management program) |
| Fan Modules | Five hot-swappable fan modules in N+1 redundancy mode, each with two counter-rotating fans |
| Power Supply Units | Two hot-swappable 460 W AC PSUs in redundancy mode, efficiency up to 94% |
| System Management | – UEFI<br> – Huawei iBMC: IPMI, SOL, KVM over IP, virtual media<br> – NC-SI |
| Security | – Power-on password<br> – Administrator password |
| GPU | SM750 display chip with 32 MB display memory, max resolution: 1920 x 1200 at 60 Hz with 16 M colors |
| Physical Specifications | Dimensions (H x W x D):<br> – 43.6 mm x 447 mm x 740 mm (1.78 in. x 17.05 in. x 29.13 in.)<br> Installation dimensions:<br> – Fits common racks (IEC 297 standard)<br> – Rack width: 19 in.<br> – Rack depth: > 1000 mm (39.37 in.)<br> – Guide rail installation: L-shaped guide rails (Huawei racks), adjustable guide rail (front rear mounting bars: 557 mm to 862 mm) |
| Power Rating | 460 W |
| Weight | Net weight:<br> – RH1288A V2-8S: 19.6 kg<br> – RH1288A V2-4L: 20 kg<br> – Packaging materials: 5.3 kg (11.69 lb) |
| Input Voltage | – AC: 100-240 V AC (input frequency: 50 Hz or 60 Hz)<br> – 240 V HV DC: 192-288 V DC |
| Temperature | Operating Temperature:<br> – 5°C to 35°C (41°F to 95°F)<br> Storage Temperature:<br> – –40°C to +65°C (–40ºF to +149ºF)<br> – Temperature change rate: < 20°C/h (36°F/h)<br> – Long-term storage temperature: 21°C to 27°C (69.8°F to 80.6°F) |
| Altitude | ≤ 3000 m (9842.40 ft)<br> – Altitude > 900 m (2952.72 ft): Operating temperature decreases by 1°C (33.8°F) per 300 m (984.24 ft) |
| Humidity | Operating Humidity:<br> – 8% RH to 90% RH (non-condensing)<br> Storage Humidity:<br> – 5% RH to 95% RH (non-condensing)<br> – Humidity change rate: < 20% RH/hour<br> – Long-term storage humidity: 30% RH to 69% RH (non-condensing) |
| Acoustic Noise | Idle:<br> – LWAd: 5.9 Bels<br> – LpAm: 43 dBA<br> Operating:<br> – LWAd: 6.7 Bels<br> – LpAm: 50.1 dBA |
Key Benefits:
- Powerful Processing: Supports up to two Intel® Xeon® E5-2600 or E5-2600 v2 series processors with multiple core options, ensuring exceptional performance for various workloads.
- Extensive Memory Capacity: Up to 8 DIMM slots supporting DDR3 RDIMMs/LRDIMMs with a maximum memory capacity of 256 GB.
- Flexible Storage Options: Various hard disk configurations, including support for hot-swappable SAS/SATA HDDs or SSDs, to cater to diverse storage needs.
- Advanced RAID Support: Comprehensive RAID configurations with a supercapacitor for cache protection, enhancing data integrity and security.
- Efficient Network Connectivity: Multiple network port configurations, including GE and 10 GE ports, supporting NC-SI, WOL, and PXE.
- Scalable PCIe Expansion: Up to 3 PCIe slots and additional Huawei PCIe intelligent network interface cards and SSD cards for improved I/O performance.
- Reliable System Management: Features Huawei iBMC and supports various management interfaces, providing efficient remote management and monitoring.
RH 1288A V2 server Huawei at the Best Price in Bangladesh
Crystal Computers offers a wide range of computer accessories and Servers at the best prices in Bangladesh. We provide Huawei-branded Servers including RH 1288A V2 server Huawei at the best price in Bangladesh. Call now for more information.
