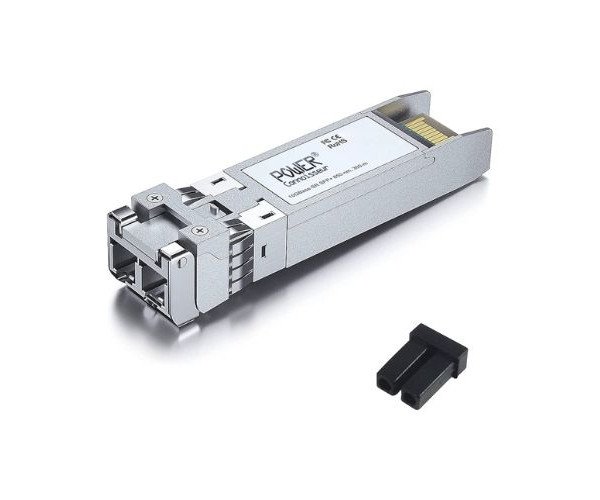

About the Huawei SFP-25G-SR Optical Modules
The Huawei SFP-25G-SR Optical Modules are high-performance transceivers designed for high-speed data transmission over short-range multimode fiber networks. Supporting the 25G Ethernet standard, these modules are ideal for data centers, enterprise networks, and high-bandwidth applications. With a compact SFP28 form factor, the Huawei SFP-25G-SR Optical Modules provide reliable, cost-effective, and energy-efficient connectivity. Offering a wavelength of 850 nm and speeds of up to 25.78125 Gbps, these modules are fully compliant with SFP28 MSA and IEEE 802.3 25GBASE-SR standards.
Specification
| Specification | Details |
|---|---|
| Form Factor | SFP28 |
| Interface | Dual LC |
| Transmission Rate | 25.78125 Gbps |
| Wavelength | 850 nm |
| Fiber Type | Multimode Fiber (MMF) |
| Supported Fiber Types | OM3, OM4 |
| Maximum Transmission Distance | 70 m (OM3), 100 m (OM4) |
| Transmitter Power | -8.4 dBm to 2.4 dBm |
| Receiver Sensitivity | -10.3 dBm |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | <1 W |
| Compliance | SFP28 MSA, IEEE 802.3 25GBASE-SR |
Description
The Huawei optical modules deliver high-speed connectivity for various network applications. With a 25.78125 Gbps transmission rate, these modules are designed for use with multimode fiber (OM3 and OM4) and offer a reliable range of up to 100 meters. The dual LC interface ensures stable and efficient data transmission. Their compact SFP28 form factor is perfect for space-constrained environments like data centers and high-performance computing applications. The modules’ low power consumption and wide operating temperature range make them an ideal choice for cost-effective high-density deployments.
User Experience
Users have praised the Huawei optical modules for their superior performance and ease of integration into existing network systems. The installation process is quick and straightforward, and the modules are compatible with most network equipment, offering flexibility and reliability. The low power consumption and high transmission rates allow businesses to reduce operational costs while improving network speed and efficiency. With the ability to transmit data up to 100 meters with low latency, these optical modules are highly suitable for high-demand environments like data centers and cloud applications.
Why Choose the Huawei Optical Modules?
The Huawei SFP-25G-SR optical modules provide unmatched performance and reliability, making them an excellent choice for modern network infrastructures. These modules offer high data transmission rates of 25.78125 Gbps over multimode fiber, ensuring fast, seamless communication within enterprise networks. Their compact size, combined with low power consumption and extended transmission range, makes them ideal for high-density and high-bandwidth applications. By choosing the Huawei Optical Modules, businesses can optimize their network performance, reduce energy costs, and future-proof their systems with cutting-edge technology.
What is the Price of Huawei SFP-25G-SR Optical Modules in Bangladesh?
Crystal Vision Solutions offers high-quality Networking Accessories, including the Huawei SFP-25G-SR Optical Modules, at the best market price in Bangladesh. We ensure optimal performance with products tailored to meet your business needs, all at a competitive BD price. Get the best price in BD and reliable service for all your networking solutions across the country.
