Specification
SRX300-SYS-JE | |
---|---|
Description | SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). RMK not included. |
Junos OS software version tested | Junos OS 15.1X49 |
Firewall performance (max) | 1 Gbps |
IPS performance | 100 Mbps |
AES256+SHA-1 / 3DES+SHA-1 VPN performance | 250 Mbps |
Maximum concurrent sessions | 64,000 |
New sessions/second (sustained, TCP, 3-way) | 5,000 |
Maximum security policies | 1,000 |
Maximum security intelligence data feed entries in firewall rules database | N/A |
Product Details

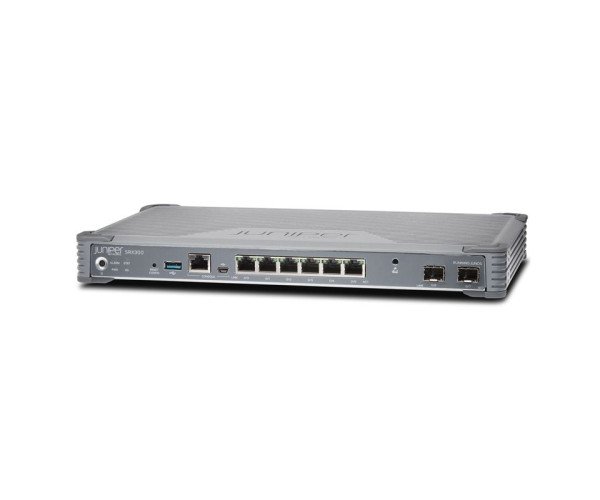

Front Panel Features of SRX300 Chassis (Figure 1)
- Power button
- LEDs
- Reset Config button
- USB port
- Serial Console port
- Mini-USB console port
- 1G Ethernet ports
- ESD point
- 1G SFP ports
Rear Panel Features of SRX300 Chassis (Figure 2)
- Grounding point
- Lock
- Cable tie holder
- Power supply input
Comparison to Similar Items
Table 2: Comparison of SRX300 Models
SKU | SRX300 | SRX300-SYS-JB | SRX300-SYS-JE |
---|---|---|---|
Description | SRX300 (Hardware Only, requires SRX300-JSB or SRX300-JSE to complete the System) with 8GE (with 2x SFP), 4G RAM, 8G Flash, including external power supply and cable. RMK not included | SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching). RMK not included | SRX300 Services Gateway includes hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security). RMK not included |
Junos OS software version tested | Junos OS 15.1X49 | Junos OS 15.1X49 | Junos OS 15.1X49 |
Firewall performance (max) | 1 Gbps | 1 Gbps | 1 Gbps |
IPS performance | 100 Mbps | 100 Mbps | 100 Mbps |
AES256+SHA-1 / 3DES+SHA-1 VPN performance | 250 Mbps | 250 Mbps | 250 Mbps |
Maximum concurrent sessions | 64,000 | 64,000 | 64,000 |
New sessions/second (sustained, TCP, 3-way) | 5,000 | 5,000 | 5,000 |
Maximum security policies | 1,000 | 1,000 | 1,000 |
Maximum security intelligence data feed entries in firewall rules database | N/A | N/A | N/A |
The SRX300-SYS-JE model stands out by including the enhanced Junos Software, which adds Application Security to the base functionalities offered by the SRX300-SYS-JB model. This makes it an ideal choice for enterprises needing advanced threat protection and comprehensive security features.
SRX300-SYS-JE Description
The SRX300-SYS-JE is a Juniper SRX300 Services Gateway that includes hardware and Junos Software Enhanced. The hardware specifications feature 8GE ports, 4GB RAM, 8GB Flash, a power adapter, and cables. However, the rack mount kit (RMK) is not included. The SRX300 line of services gateways offers a next-generation security, networking, and SD-WAN solution designed to support the evolving needs of cloud-enabled enterprise networks. Whether deploying new services and applications across multiple locations, connecting to the cloud, or enhancing operational efficiency, the SRX300 line ensures scalable, secure, and manageable connectivity.
