Specification
Specification |
Details |
SKU |
SRX320-SYS-JB |
Description |
SRX320 Services Gateway including hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS, and Switching). RMK not included |
Junos OS Software Version Tested |
Junos OS 15.1X49 |
Firewall Performance (max) |
1 Gbps |
IPS Performance |
100 Mbps |
AES256+SHA-1 / 3DES+SHA-1 VPN Performance |
250 Mbps |
Maximum Concurrent Sessions |
64,000 |
New Sessions/Second (sustained, TCP, 3-way) |
5,000 |
Maximum Security Policies |
1,000 |
Maximum Security Intelligence Data Feed Entries |
N/A |
Total Onboard Ports |
8x1GbE |
Onboard RJ-45 Ports |
6x1GbE |
Onboard SFP Ports |
2x1GbE |
MACsec-capable Ports |
2x1GbE |
Out-of-Band (OOB) Management Ports |
0 |
Mini-PIM (WAN) Slots |
2 |
Console (RJ-45 + mini USB) |
1 |
USB 3.0 Ports (type A) |
1 |
Optional PoE+ Ports |
6 |
System Memory (RAM) |
4 GB |
Storage (Flash) |
8 GB |
Form Factor |
Desktop |
Size (WxHxD) |
11.81 x 1.73 x 7.52 in (29.99 x 4.39 x 19.10 cm) |
Redundant PSU |
No |
Power Supply |
AC (external) |
Maximum PoE Power |
180 W |
Average Power Consumption |
46 W/221 W |
Average Heat Dissipation |
157 BTU/h / 755 BTU/h |
Maximum Current Consumption |
0.634 A / 2.755 A |
Airflow/Cooling |
Front to back |
Operational Temperature |
32° to 104° F (0° to 40° C) |
Nonoperational Temperature |
-4° to 158° F (-20° to 70° C) |
Operating Humidity |
10% to 90% noncondensing |
Nonoperating Humidity |
5% to 95% noncondensing |
Product Details
Front Panel
- Power Button
- LEDs
- Reset Config Button
- USB Port
- Console Port
- Mini-USB Port
- 1G Ethernet Ports
- 1G SFP Ports
- Mini-PIM Slots
Rear Panel
- Lock
- Grounding Point
- Fans
- Cable Tie Holder
- Power Supply Input
Comparison with Similar Items
Specification |
SRX320 (Hardware Only) |
SRX320-SYS-JB (Junos Base) |
SRX320-SYS-JE (Junos Enhanced) |
Description |
SRX320 (Hardware Only, requires SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP), 4G RAM, 8G Flash, and 2x MPIM slots. Includes external power supply and cable. RMK not included |
SRX320 Services Gateway including hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS, and Switching). RMK not included |
SRX320 Services Gateway including hardware (8GE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching, and Application Security). RMK not included |
Firewall Performance (max) |
1 Gbps |
1 Gbps |
1 Gbps |
IPS Performance |
100 Mbps |
100 Mbps |
100 Mbps |
VPN Performance |
250 Mbps |
250 Mbps |
250 Mbps |
Maximum Concurrent Sessions |
64,000 |
64,000 |
64,000 |
New Sessions/Second (sustained, TCP, 3-way) |
5,000 |
5,000 |
5,000 |
Maximum Security Policies |
1,000 |
1,000 |
1,000 |

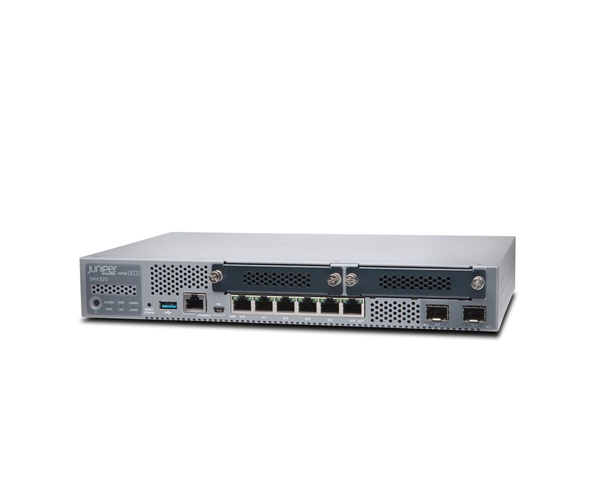

Juniper SRX320-SYS-JB SRX Series Service Gateways
Overview
The Juniper SRX320-SYS-JB is a comprehensive services gateway designed for small distributed enterprises. It consolidates security, routing, switching, and WAN interfaces into a single, efficient device. Equipped with advanced threat mitigation capabilities, it provides cost-effective and secure connectivity. This model includes the hardware (8 Gigabit Ethernet ports, 2 MPIM slots, 4GB RAM, 8GB Flash memory, power adapter, and cable) and Junos Software Base (covering Firewall, NAT, IPSec, Routing, MPLS, and Switching functionalities). The Rack Mount Kit (RMK) is not included.
