Specification of MCD-5030A X-Ray Baggage Scanner
| General Parameters | Details |
|---|---|
| X-ray Sensor | L-shaped photodiode array (mono-energetic) |
| Tunnel Size Conveyor | 500 mm (Width) * 300 mm (Height) |
| Monitor | High-resolution color, LCD compatible, 19-inch |
| Conveyor Speed | 0.22 m/sec |
| Image Processing | Edge enhancement, image enhancement, and more |
| Conveyor Max Load | 150 kg (Evenly distributed) |
| Image Grayness Level | 4096 |
| Pass Rate | 720 pieces/hour |
| Image Maximum Resolution | 1024 * 768 pixels |
| Metal Wire Resolution | 32 AWG / Φ0.202 mm |
| Image Storage | 200,000 images in real-time |
| Penetration Through Steel Plate | 14 mm |
| Zone & Zoom | 1-9 image zones, enlargement options |
| Dose per Inspection | Less than 1.0 uGy/h |
| Installation Data | |
| Film Safety | Guaranteed ISO 1600 Film |
| Operating Environment / Humidity | 0 to 45°C / 20 – 95% (non-condensing) |
| X-ray Leakage | Less than 1 uGy/h at 5cm from frame house |
| Storage Temperature / Humidity | -20 to 60°C / 20 ~ 95% (non-condensing) |
| Operating Power | |
| Operating Power | 220VAC (± 10%) 50 ± 3Hz |
| Power Consumption | 1.0 KW (max), 0.3KW (working) |
| X-ray Generator | |
| System Noise | <58 dB |
| Generator Direction | From top to bottom |
| Generator Angle | 80 degrees downward |
| Anode Voltage | 80KV |
| Unit Net Weight | 190 Kgs |
| Unit Gross Weight | 240 KG |
| Package Size | |
| Wooden Size | 162 * 85 * 132 cm |
| Cooling/Duty Cycle | 0%-90% (non-condensing) |
| CBM | 1.82 CBM |

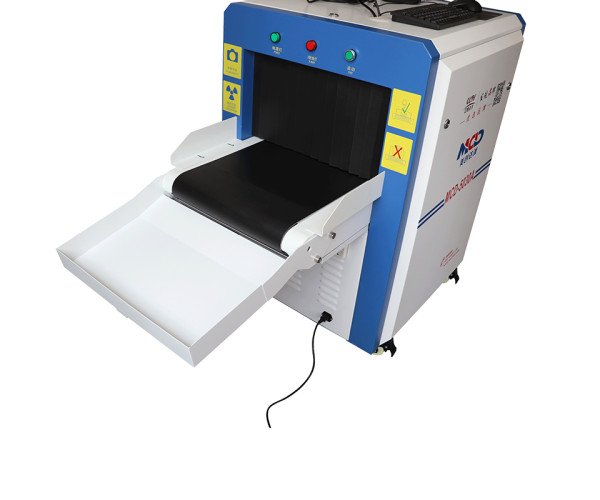

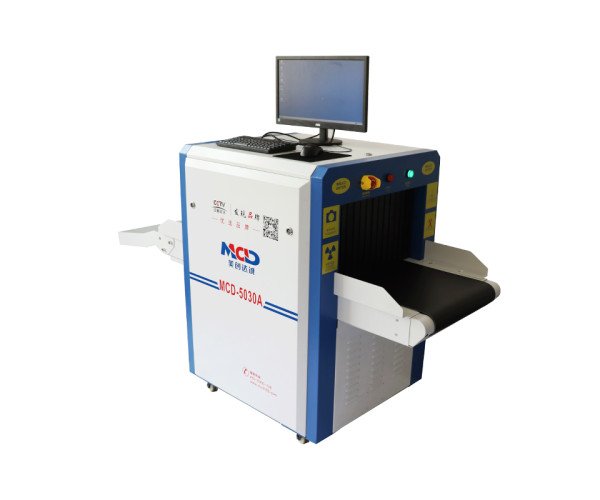

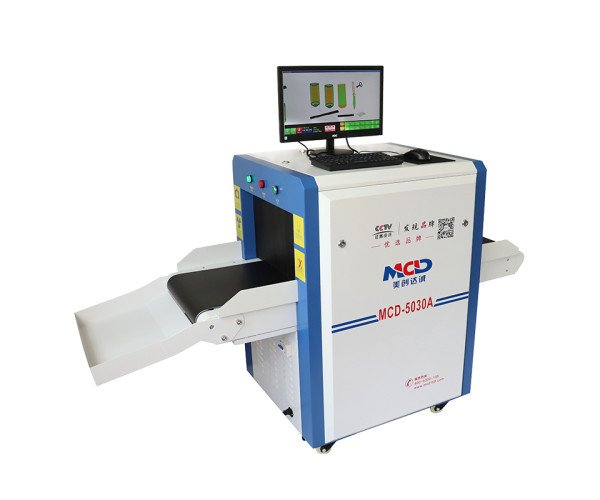

About MCD-5030A X-Ray Baggage Scanner
Elevate security with the MCD-5030A X-Ray Baggage Scanner from Crystal Computers. Its advanced features, including a high-res 19-inch LCD monitor, deliver precise screening. Max resolution: 1024×768 pixels, 200,000 image storage, and quiet operation. ISO 1600 film safety ensures safety. Explore our accessories today!
