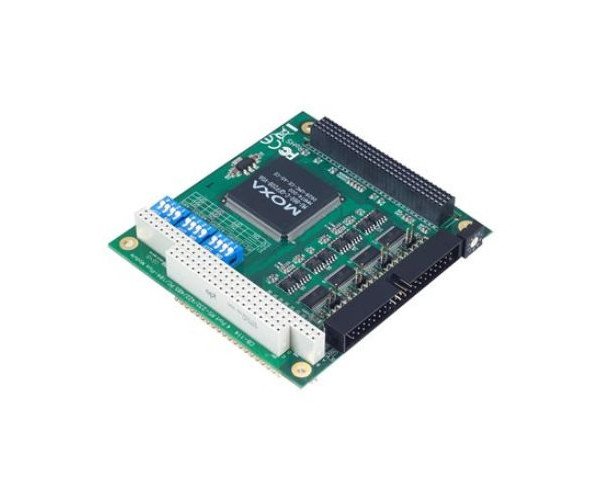

MOXA CB-114 Series Multiport Serial Boards

The MOXA CB-114 Series Multiport Serial Boards offer unparalleled connectivity and performance for industrial applications. Their robust design, extensive compatibility, and advanced features make them a reliable choice for businesses looking to enhance their operations. Whether you’re in manufacturing, logistics, or any other industry requiring reliable serial communication, the MOXA CB-114 Series is a worthy investment.



MOXA CB-114 Series Multiport Serial Boards Specifications

Specification	Details
Serial Interface	Comm. Controller 16C550C or compatible x 4
Bus	PC/104 plus bus
Connector	40-pin box header
DIP Switches	Serial interface
IRQ	Assigned by BIOS
I/O Address	Assigned by BIOS
FIFO	128 bytes
Max. No. of Boards per PC	8
No. of Ports	4
Serial Standards	RS-232, RS-422, RS-485
Baudrate	50 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF
Serial Signals
– RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
– RS-422	Tx+, Tx-, Rx+, Rx-, GND
– RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
– RS-485-2w	Data+, Data-, GND
Serial Software Features
– Windows Drivers	DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
– Linux Drivers	Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
– UNIX Drivers	QNX 6, Solaris 10, UnixWare 7
Power Parameters
– Input Current	164 mA @ 5 VDC
– Input Voltage	5 VDC
Physical Characteristics
– Dimensions	90 x 96 mm (3.54 x 3.78 in)
LED Interface	Built-in Tx, Rx LEDs for each port
Environmental Limits
– Operating Temperature	CB-114: 0 to 55°C (32 to 131°F) CB-114-T: -40 to 85°C (-40 to 185°F)
– Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
– Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
– EMC	EN 55032/24
– EMI	CISPR 32, FCC Part 15B Class A
– EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
– Environmental Testing	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 IEC 60068-2-14
– Vibration	IEC 60068-2-6
Declaration
– Green Product	RoHS, CRoHS, WEEE
MTBF
– Time	381,081 hrs
– Standards	Telcordia (Bellcore), GB



Key Features of MOXA CB-114

The MOXA CB-114 Series is known for its array of impressive features:

Multiport Capabilities

These serial boards come equipped with four ports, allowing for extensive connectivity and efficient device management. The multiport capability enhances productivity by enabling simultaneous communication with multiple devices.

High-Speed Transmission

Supporting baud rates up to 921.6 kbps, the MOXA CB-114 ensures fast and reliable data transfer, which is crucial for time-sensitive industrial operations.

Compatibility

The MOXA CB-114 Series is compatible with a wide range of operating systems, including Windows, Linux, and UNIX. This flexibility makes it an ideal choice for diverse industrial setups.

Design and Build Quality

Built with industrial-grade materials, the MOXA CB-114 Series is designed to withstand harsh environmental conditions. The robust construction ensures long-term durability and consistent performance, making these boards a reliable choice for demanding industrial applications.

Installation and Setup

The installation process for the MOXA CB-114 is straightforward and user-friendly. The package includes a comprehensive step-by-step guide, minimizing setup time and effort. Required tools are minimal, allowing for quick and easy installation.

Performance and Reliability

The MOXA CB-114 Series has undergone rigorous testing to ensure high performance and reliability. Users report impressive uptime and consistent operation, even in challenging industrial environments, highlighting the boards’ reliability.



Compatibility and Integration

Supported Operating Systems

The MOXA CB-114 Series supports various operating systems, ensuring seamless integration with existing infrastructure. This compatibility reduces the need for extensive reconfigurations and streamlines the integration process.

Integration with Existing Systems

Thanks to comprehensive driver support and detailed documentation, integrating the MOXA CB-114 Series with existing systems is a hassle-free process. This ease of integration enhances overall efficiency and productivity.

Security Features

Security is a top priority for industrial applications. The MOXA CB-114 Series includes advanced security features such as data encryption and secure communication protocols, ensuring your data remains protected from unauthorized access.



Price of MOXA CB-114 Series Multiport Serial Boards in Bangladesh

Choosing the right supplier for your industrial needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Connectivity device from Crystal Vision Solutions, you are not only investing in high-quality solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
