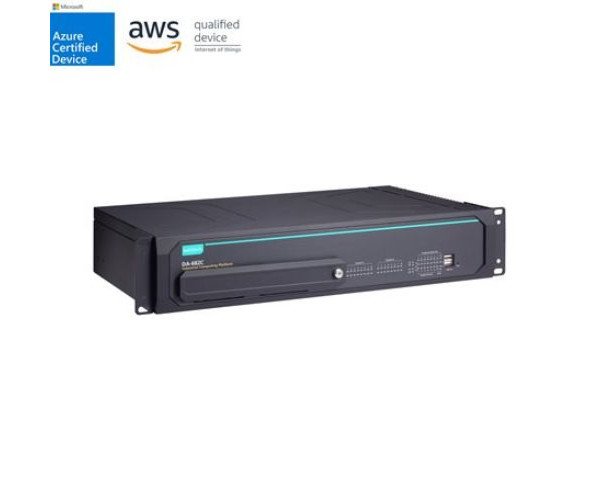

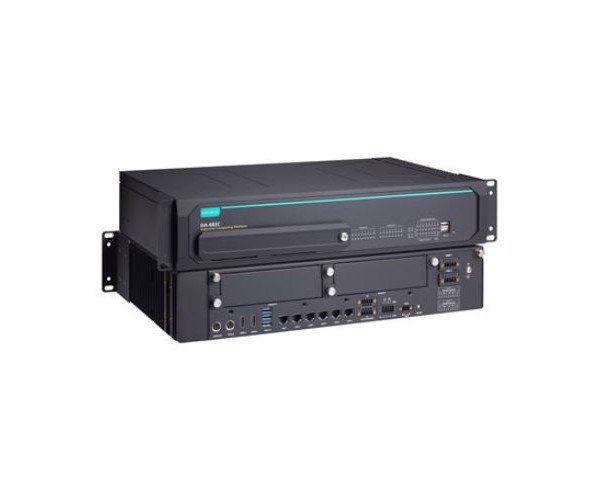

MOXA DA-682C-KL3 Industrial Computing Device

The MOXA DA-682C-KL3 Industrial Computing Device is a powerful and reliable solution for industrial computing needs. With its rugged design, high-performance computing capabilities, advanced security features, and flexible connectivity options, it stands out as an ideal choice for enhancing your industrial operations. Whether upgrading your current computing infrastructure or looking for a robust device for harsh environments, the DA-682C-KL3 delivers the performance and reliability necessary for seamless industrial operations.



MOXA DA-682C-KL3 Industrial Computing Device Specifications

Specification	Details
CPU	Intel® Core™ i3-7100U processor (3M cache, up to 2.40 GHz)
System Memory Slot	SODIMM DDR4 slot x 2
DRAM	32 GB max. capacity (SODIMM x 2, each supporting 2133 MHz and 16 GB maximum per module)
Graphics Controller	Intel® HD Graphics 630
Storage Slot	2.5-inch HDD/SSD slots x 2, mSATA slots x 1
Supported OS	Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Linux Debian 9 (Note: OS available by CTOS)
Computer Interface	USB 2.0: USB 2.0 hosts x 3, type-A connectors (2 ports on the front panel, 1 port inside the computer) USB 3.0: USB 3.0 hosts x 3, type-A connectors (3 ports on the rear panel) Video Output: HDMI x 2, HDMI connector (type A) Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6 Serial Ports: RS-232/422/485 ports x 2, software-selectable (terminal block)
LED Indicators	System: Power x 1, Storage x 1, Programmable x 8 Serial: 2 per port (Tx, Rx) LAN: 2 per port (10/100/1000 Mbps)
Serial Interface	Baudrate: 300 bps to 115.2 kbps ESD: 8 kV (level 4) Isolation: 2 kV Serial Standards: RS-232/422/485 Surge: 2 kV Connector: Terminal block Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters	Input Current: 100 to 240 VDC, 0.9 A (max), 100 to 240 VAC, 50/60 Hz, 0.9 A (max) Power Button: Reset button (front panel), ON/OFF (rear panel)
Physical Characteristics	Housing: Metal Dimensions (without ears): 440 x 282 x 88 mm (17.32 x 11.08 x 3.46 in) Weight: 9,900 g (21.82 lb) Installation: 19-inch rack mounting
Environmental Limits	Operating Temperature: -40 to 70°C (-40 to 158°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 300 A/m, IEC 61000-4-11 Power Substation: IEC 61850-3 IEEE: 1613 Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2 Safety: UL 60950-1, IEC 60950-1, UL 62368-1, IEC 62368-1 Protection Relay: IEC 60255 Declaration: Green Product: RoHS, CRoHS, WEEE
MTBF	Time: 365,750 hrs Standards: Telcordia SR332



Key Features of MOXA DA-682C-KL3 Industrial Computing Device

Rugged Design

First and foremost, the DA-682C-KL3 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and shocks, making it ideal for industrial applications.

High-Performance Computing

Moreover, powered by a robust processor, the DA-682C-KL3 delivers high-performance computing capabilities, ensuring fast and reliable processing for critical industrial applications.

Robust Security

In addition, the device integrates advanced security features, including secure boot and TPM 2.0, ensuring that your computing environment remains secure from potential threats and unauthorized access.

Flexible Connectivity

Furthermore, the DA-682C-KL3 supports a variety of connectivity options, including multiple Ethernet ports and USB interfaces, providing flexibility for various industrial networking needs.

Easy Management

Lastly, the computing device features an intuitive web-based interface and support for SNMP, allowing easy setup, configuration, and management of your industrial network.



Why Choose MOXA DA-682C-KL3 Industrial Computing Device?

Industrial-Grade Durability

The DA-682C-KL3 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments.

High-Performance Computing

With a powerful Intel® Core™ i7 processor and ample memory, this device provides fast and reliable computing capabilities for critical industrial applications.

Advanced Security Features

Robust security protocols, including TPM 2.0 and Secure Boot, protect your computing environment from potential threats, ensuring secure operations.

Flexible Connectivity Options

The DA-682C-KL3 supports multiple connectivity options, including Ethernet, USB, and serial ports, providing versatility for various industrial networking needs.

Easy Management and Configuration

The intuitive web-based interface and SNMP support make setup, configuration, and management straightforward and efficient.



Price of MOXA DA-682C-KL3 Industrial Computing Device in Bangladesh

Choosing the right supplier for your industrial computing needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Computing device from Crystal Vision Solutions, you are not only investing in high-quality computing solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
