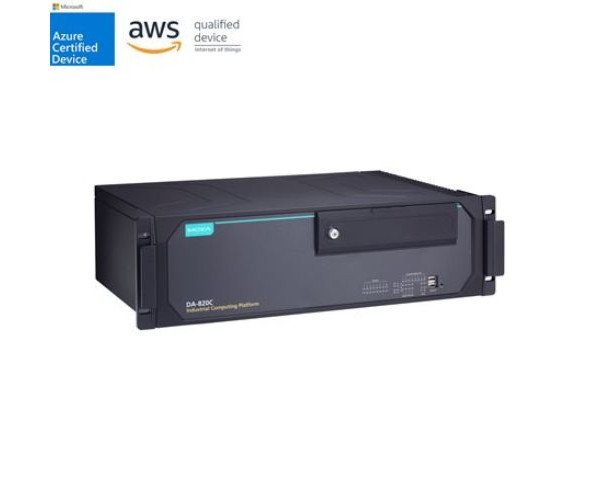

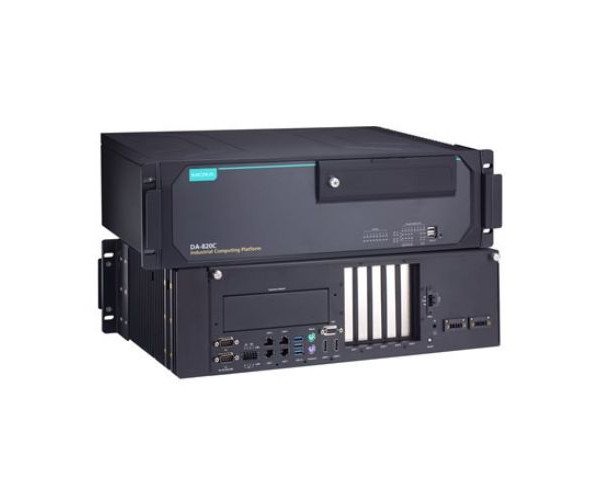

The MOXA DA-820C-KL3 Industrial Computing Device is a powerful and reliable solution for industrial computing needs. With its rugged design, high-performance computing capabilities, advanced security features, and flexible connectivity options, it stands out as an ideal choice for enhancing your industrial operations. Whether upgrading your current computing infrastructure or looking for a robust device for harsh environments, the DA-820C-KL3 delivers the performance and reliability necessary for seamless industrial operations.
MOXA DA-820C-KL3 Industrial Computing Device Specifications
Specification | Details |
---|---|
CPU | Intel® Core™ i3-7102E Processor (3M Cache, 2.10 GHz) |
System Memory Slot | SODIMM DDR4 slots x 2 |
DRAM | 64 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 32 GB maximum per module) ECC RAM only supports i3 CPU and Xeon CPU models |
Graphics Controller | Intel® HD Graphics 630 |
Storage Slot | 2.5-inch HDD/SSD slots x 4 mSATA slots x 1, internal mini-PCIe socket |
Supported OS | Windows 10 IoT Enterprise LTSC 2021 64-bit Windows 10 IoT Enterprise LTSC 2019 64-bit Windows Server 2019 Linux Debian 11 , Debian 9 Linux drivers can be downloaded from https://docs.moxa.online/mil/manuals/ |
MMS | IEC 61850-90-4 MMS Server for power SCADA IEC 61850-90-4 MMS ICD file |

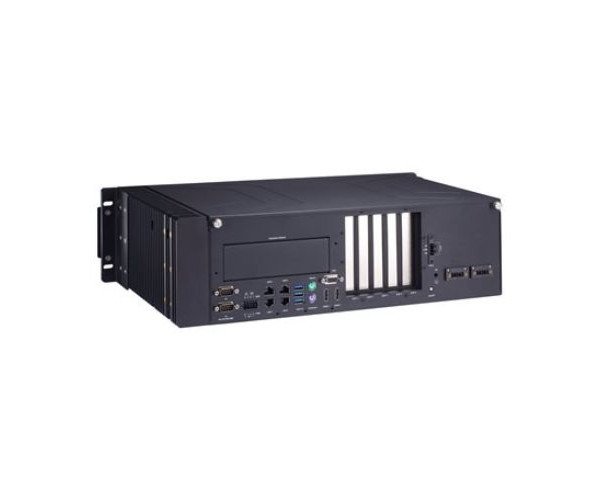

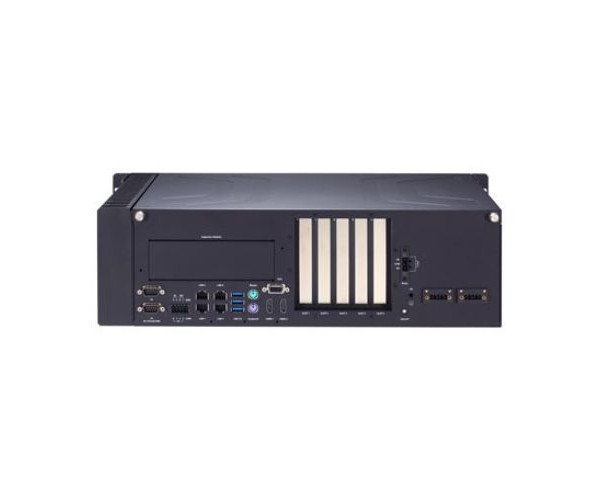

Computer Interface | Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male) Digital Input: DIs x 6 Digital Output: DOs x 2 USB 2.0: USB 2.0 hosts x 3, type-A connectors (2 ports on the front panel, 1 port inside the computer) USB 3.0: USB 3.0 hosts x 3, type-A connectors (3 ports on the rear panel) Expansion Slots: PCIe x16 slot x 1, PCIe x4 slots x 1, PCIe x1 slots x 2, PCI slots x 1 Video Output: HDMI x 2, HDMI connector (type A), VGA x 1, 15-pin D-sub connector (female) |
Time Synchronization | PTP, IRIG-B (with an expansion module) |
TPM | TPM v2.0 |
Secure Boot | UEFI |
LED Indicators | System: Power x 1, Storage x 1, Programmable x 8 Serial: 2 per port (Tx, Rx) LAN: 8 per port (10/100/1000 Mbps) |
Serial Interface | Baudrate: 300 bps to 115.2 kbps Connector: DB9 male ESD: 8 kV (level 4) Isolation: 2 kV Serial Standards: RS-232/422/485 Surge: 2 kV Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND |
Digital Inputs | Digital Input Channels: DIs x 6 Voltage: 0 to 30 VDC at 25 Hz Wet Contact (DI to COM): On: 10 to 30 VDC |
Digital Outputs | Digital Output Channels: DOs x 2 Current Rating: Max. 200 mA per channel Voltage: 24 to 30 VDC I/O Type: Sink |
Power Parameters | Input Current: 100 to 240 VAC, 50/60 Hz, 1.15 A (max) 100 to 240 VDC, 1.15 A (max) Input Voltage: 100 to 240 VAC, 100 to 240 VDC Power Button: Reset button (front panel), ON/OFF (rear panel) |
Physical Characteristics | Housing: Metal Dimensions (without ears): 440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in) Weight: 14,000 g (31.11 lb) Installation: 19-inch rack mounting |
Environmental Limits | Operating Temperature: -40 to 70°C (-40 to 158°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
Standards and Certifications | EMC: EN 61000-6-2/-6-4, EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 20 A/m, IEC 61000-4-11 Power Substation: IEC 61850-3 IEEE: 1613 Protection Relay: IEC 60255 Safety: IEC 60950-1, IEC 62368-1, UL 62368-1 Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2 Declaration: Green Product: RoHS, CRoHS, WEEE |
MTBF | Time: 325,730 hrs Standards: Telcordia SR332 |
Key Features of MOXA DA-820C-KL3 Industrial Computing Device
Rugged Design
First and foremost, the DA-820C-KL3 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and shocks, making it ideal for industrial applications.
High-Performance Computing
Moreover, powered by a robust processor, the DA-820C-KL3 delivers high-performance computing capabilities, ensuring fast and reliable processing for critical industrial applications.
Robust Security
In addition, the device integrates advanced security features, including secure boot and TPM 2.0, ensuring that your computing environment remains secure from potential threats and unauthorized access.
Flexible Connectivity
Furthermore, the DA-820C-KL3 supports a variety of connectivity options, including multiple Ethernet ports and USB interfaces, providing flexibility for various industrial networking needs.
Easy Management
Lastly, the computing device features an intuitive web-based interface and support for SNMP, allowing easy setup, configuration, and management of your industrial network.
Why Choose MOXA DA-820C-KL3 Industrial Computing Device?
Industrial-Grade Durability
The DA-820C-KL3 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments.
High-Performance Computing
With a powerful Intel® Xeon® processor and ample memory, this device provides fast and reliable computing capabilities for critical industrial applications.
Advanced Security Features
Robust security protocols, including TPM 2.0 and Secure Boot, protect your computing environment from potential threats, ensuring secure operations.
Flexible Connectivity Options
The DA-820C-KL3 supports multiple connectivity options, including Ethernet, USB, and serial ports, providing versatility for various industrial networking needs.
Easy Management and Configuration
The intuitive web-based interface and SNMP support make setup, configuration, and management straightforward and efficient.
Price of MOXA DA-820C-KL3 Industrial Computing Device in Bangladesh
Choosing the right supplier for your industrial computing needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Computing device from Crystal Vision Solutions, you are not only investing in high-quality computing solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
