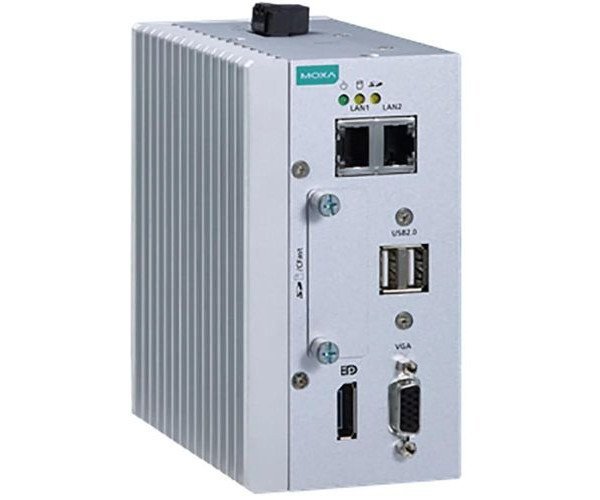

The MOXA MC-1111-E2 Industrial Computing Device is a powerful, reliable, and versatile solution for industrial computing needs. Its durable design, high-performance processing capabilities, and comprehensive connectivity options make it an ideal choice for various industries. By integrating the MOXA MC-1111-E2 into your system, you can enhance operational efficiency, ensure reliable performance, and achieve cost-effective solutions for your industrial applications.
Specifications for MOXA MC-1111-E2 Industrial Computing Device
Category | Specification |
---|---|
CPU | Intel Atom® E3826 processor (1M cache, 1.46 GHz) |
Graphics Controller | Intel® HD Graphics |
System Memory Pre-installed | 4 GB DDR3L |
System Memory Slot | SODIMM DDR3/DDR3L slots x 1 |
Supported OS | Windows 10 IoT Enterprise LTSC 2021; Linux Debian 9 (kernel v4.9) |
Storage Slot | CFast slot x 1; SD slots x 1 |
Computer Interface | |
Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
USB 2.0 | USB 2.0 hosts x 2, type-A connectors |
Video Output | DisplayPort x 1; VGA x 1, 15-pin D-sub connector (female) |
SIM Format | x 1 |
LED Indicators | |
System | Storage x 1 |
LAN | 2 per port (10/100/1000 Mbps) |
Serial | 2 per port (Tx, Rx) |
Serial Interface | |
Baudrate | 50 bps to 115.2 kbps |
Connector | DB9 male |
Data Bits | 5, 6, 7, 8 |
Flow Control | Automatic Data Direction Control (ADDC) for RS-485; RTS/CTS, XON/XOFF |
Isolation | N/A |
Parity | None, Even, Odd, Space, Mark |
Power Parameters | |
Input Voltage | 11.4 to 36 VDC |
Power Connector | Terminal block (for DC models) |
Power Consumption | 30 W (max.) |
Reliability | |
Automatic Reboot Trigger | Built-in WDT |
Physical Characteristics | |
Housing | Metal |
Dimensions | 132 x 122 x 68 mm (5.2 x 4.81 x 2.68 in) |
Weight | 1,022 g (2.25 lb) |
Installation | DIN-rail mounting; Wall mounting (with optional kit) |
Environmental Limits | |
Operating Temperature | -40 to 70°C (-40 to 158°F) |
Storage Temperature (package included) | -45 to 75°C (-49 to 167°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
EMC | EN 55032/35 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF |
Hazardous Locations | All models excluding MC-1121-E4-T-US: ATEX Zone 2; IECEx Zone 2; Class I Division 2 |
Maritime | DNV; IEC 60945; LR |
Radio Frequency | FCC |
Safety | UL 60950-1 |
Key Features of the MOXA MC-1111-E2
Durable Design
The MOXA MC-1111-E2 is built to endure extreme industrial conditions, including temperature variations, dust, and vibrations. Its sturdy construction ensures long-lasting performance in harsh environments.
High-Performance Processing
Equipped with powerful processors, the MOXA MC-1111-E2 delivers high-speed data processing and multitasking capabilities, facilitating efficient and seamless operations.
Comprehensive Connectivity
With a variety of connectivity options, including Ethernet, USB, and serial ports, the MOXA MC-1111-E2 ensures easy integration with various industrial systems and devices.
Enhanced Security
The device features advanced security measures such as hardware-based encryption and secure boot, protecting critical data from unauthorized access and cyber threats.
How to Integrate the MOXA MC-1111-E2 into Your System
Integrating the MOXA MC-1111-E2 into your industrial system is straightforward. Follow these steps for seamless integration:
- Assess Your Requirements: Determine the specific needs of your application, including processing power, connectivity, and environmental conditions.
- Choose the Right Configuration: Select the appropriate processor, memory, and storage options based on your requirements.
- Install the Device: Mount the device securely in your desired location, ensuring proper ventilation and protection from environmental hazards.
- Connect to Your System: Use the available connectivity options to integrate the device with your existing industrial systems and devices.
- Configure and Test: Configure the device settings according to your application needs and perform thorough testing to ensure optimal performance.
Price of MOXA MC-1111-E2 Industrial Computing Device in Bangladesh
Choosing the right supplier for your industrial computing needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Computing device from Crystal Vision Solutions, you are not only investing in high-quality computing solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
