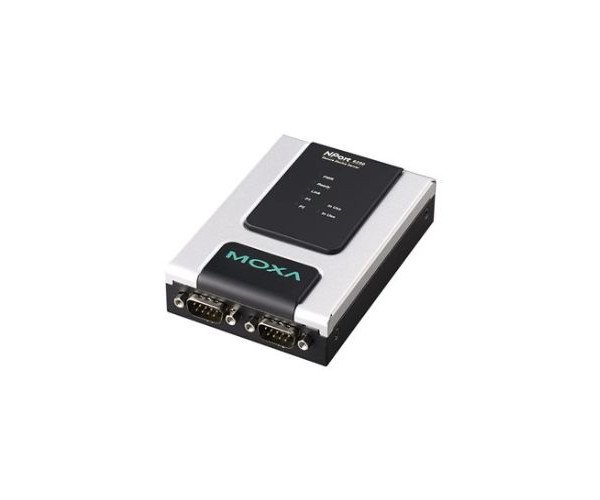

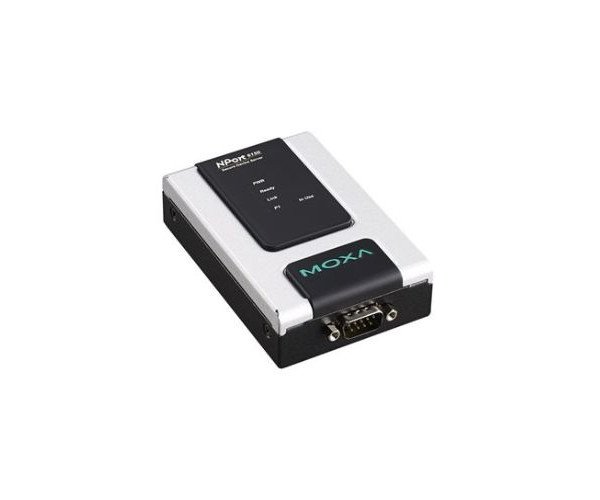

MOXA NPort 6250 Serial Device Server
- NPort 6100/6200 Series
- Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
- Â Supports nonstandard baudrates with high precision
- Â NPort 6250: Choice of network medium: 10/100BaseT(X) or 100BaseFX
- Â Enhanced remote configuration with HTTPS and SSH
- Â Port buffers for storing serial data when the Ethernet is offline
- Â Supports IPv6
- Â Generic serial commands supported in Command-by-Command mode
- Â Security features based on IEC 62443
In today’s interconnected world, efficient and reliable serial-to-Ethernet connectivity is essential for smooth industrial operations. The MOXA NPort 6250 Serial Device Server offer an advanced solution for integrating serial devices into your network. Their robust features and user-friendly design ensure optimal performance in a variety of applications.
MOXA NPort 6250 Serial Device Server Specifications
| Category | Specification |
|---|---|
| Memory | SD Slot: Up to 32 GB (SD 2.0 compatible) |
| Ethernet Interface | Ports: 10/100BaseT(X) Ports (RJ45 connector) <br> Number of Ports: 1 <br> Magnetic Isolation Protection: 1.5 kV (built-in) |
| Ethernet Software Features | Configuration Options: Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console, Telnet/SSH Console <br> Management: ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, LLDP, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP |
| Windows Real COM Drivers | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x |
| Fixed TTY Drivers | macOS Versions: 11.x, 10.12 to 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Arm®-based Platform Support | Linux Kernel 5.x/4.x |
| Virtual Machine | VMWare ESXi (Windows 11/10), VMware Fusion (Windows on macOS 10.12 to 11.x), Parallels Desktop (Windows on macOS 10.12 to 11.x) |
| Android API | Android 3.1.x and later |
| Time Management | SNTP Client |
| MIB | MIB-II |
| Unicast Routing | RIPV1/V2, Static Route |
| Security Functions | Authentication: Local database, RADIUS, TACACS+ <br> Encryption: HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384 <br> Security Protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2 |
| Serial Interface | Connector: DB9 male <br> Number of Ports: 2 <br> Serial Standards: RS-232, RS-422, RS-485 <br> Secure Operation Modes: Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH <br> Standard Operation Modes: Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP <br> Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates) <br> Data Bits: 5, 6, 7, 8 <br> Stop Bits: 1, 1.5, 2 <br> Flow Control: RTS/CTS, DTR/DSR, XON/XOFF <br> Parity: None, Even, Odd, Space, Mark <br> Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms <br> RS-485 Data Direction Control: Automatic Data Direction Control (ADDC) <br> Terminator for RS-485: 120 ohms <br> Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND <br> RS-422: Tx+, Tx-, Rx+, Rx-, GND <br> RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND <br> RS-485-2w: Data+, Data-, GND |
| Power Parameters | Input Current: 430 mA @ 12 to 48 VDC <br> Input Voltage: 12 to 48 VDC |
| Reliability | Automatic Reboot Trigger: Built-in WDT <br> Alert Tools: Built-in buzzer and RTC (real-time clock) |
| Physical Characteristics | Housing: Metal <br> Dimensions (with ears): 101 x 111 x 29 mm (3.98 x 4.37 x 1.1 in) <br> Dimensions (without ears): 77 x 111 x 29 mm (3.30 x 4.37 x 1.1 in) <br> Weight: 240 g (0.53 lb) <br> Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting |
| Environmental Limits | Operating Temperature: 0 to 55°C (32 to 131°F) <br> Storage Temperature (package included): -40 to 75°C (-40 to 167°F) <br> Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35 <br> EMI: CISPR 32, FCC Part 15B Class A <br> EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 <br> Traffic Control: NEMA TS2 <br> Vibration: IEC 60068-2-6 <br> Freefall: IEC 60068-2-34 <br> Safety: UL 60950-1, UL 62368-1 <br> Declaration: Green Product, RoHS, CRoHS, WEEE <br> MTBF: Time: 1,606,182 hrs, Standards: Telcordia (Bellcore) Standard TR/SR |
Key Features of MOXA NPort 6250
High-Speed Connectivity
First and foremost, the NPort 6250 servers deliver high-speed data transfer, ensuring minimal latency and optimal performance. This feature is critical for applications that require real-time data communication.
Advanced Security Protocols
Moreover, security is a top priority with the NPort 6250. These servers support advanced encryption protocols, including SSL and SSH, to safeguard your data against unauthorized access and cyber threats.
Versatile Networking Options
Additionally, these device servers offer versatile networking options, supporting various protocols such as TCP/IP, UDP, and HTTP. This compatibility makes them suitable for diverse industrial applications.
User-Friendly Interface
Furthermore, the NPort 6250 servers feature a user-friendly interface, simplifying configuration and management. The intuitive web console and command line interface (CLI) ensure easy setup and operation.
Industrial-Grade Durability
Designed for industrial environments, the NPort 6250 servers are built to withstand harsh conditions, including extreme temperatures and high electromagnetic interference (EMI). This durability ensures reliable operation even in challenging settings.
Comprehensive Management Tools
In addition to their robust design, these servers come with comprehensive management tools. Real-time monitoring, event logging, and alert notifications help maintain network stability and performance.
Applications of MOXA NPort 6250 Serial Device Server
Industrial Automation
The NPort 6250 servers are ideal for industrial automation, where seamless communication between machines and control systems is crucial. They enable reliable data transfer, enhancing operational efficiency and productivity.
Transportation Systems
Moreover, in transportation systems, these device servers facilitate real-time communication, ensuring smooth operation of various transportation networks.
Energy Management
Furthermore, the NPort 6250 servers play a vital role in energy management systems, providing reliable data connectivity for monitoring and controlling energy distribution networks.
Healthcare Systems
Additionally, these servers are integral to healthcare systems, enabling seamless integration of medical devices and ensuring reliable data communication for better patient care.
Price of MOXA NPort 6250 Serial Device Server in Bangladesh
Choosing the right supplier for your industrial needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Connectivity device from Crystal Vision Solutions, you are not only investing in high-quality solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
