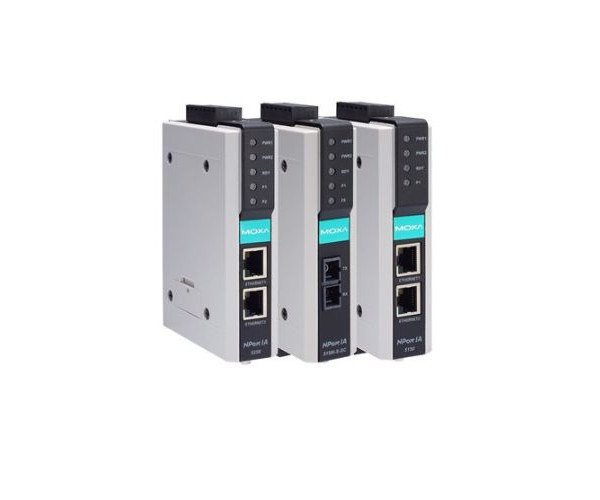

MOXA NPort IA-5150 Serial Device Server

In the dynamic world of industrial operations, efficient and reliable connectivity solutions are vital. The MOXA NPort IA-5150 Serial Device Server provide a robust answer to the need for integrating serial devices with Ethernet networks. Their advanced features and industrial-grade design ensure optimal performance in even the most demanding environments.



MOXA NPort IA-5150 Serial Device Server Specifications

Category	Specification
Ethernet Interface	Ports: 10/100BaseT(X) Ports (RJ45 connector) <br> Supports: 2 (1 IP, Ethernet cascade) <br> Magnetic Isolation Protection: 1.5 kV (built-in) <br> 100BaseFX Ports: 1 (multi-mode SC connector)
Ethernet Software Features	Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console <br> Management: DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet
Windows Real COM Drivers	Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, 95 <br> Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, NT <br> Windows Embedded CE 5.0 and 6.0, Windows XP Embedded
Linux Real TTY Drivers	Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers	macOS versions: 14, 13, 12, 11, and 10.1x <br> SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support	Windows 11 <br> Linux Kernel 6.x, 5.x, and 4.x <br> macOS 14, 13, 12, and 11
Virtual Machine	VMWare ESXi (Windows 11/10) <br> VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x) <br> Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
Android API	Android 3.1.x and later
Time Management	SNTP
MIB	RFC1213, RFC1317
Security Functions	Authentication: Local database (password only)
Serial Interface	Connector: DB9 male for RS-232 and terminal block for RS-422/485 <br> No. of Ports: 1 <br> Serial Standards: RS-232, RS-422, RS-485 <br> Baudrate: 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400 <br> Data Bits: 5, 6, 7, 8 <br> Parity: None, Even, Odd, Space, Mark <br> Stop Bits: 1, 1.5, 2 <br> Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF <br> Terminator for RS-485: 120 ohms <br> Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms <br> RS-485 Data Direction Control: ADDC (automatic data direction control) <br> Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND <br> RS-422: Tx+, Tx-, Rx+, Rx-, GND <br> RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND <br> RS-485-2w: Data+, Data-, GND
Power Parameters	Input Voltage: 12 to 48 VDC <br> Input Current: 510 mA @ 12 VDC <br> No. of Power Inputs: 2 <br> Power Connector: Terminal block <br> Relays Contact Current Rating: Resistive load: 1 A @ 30 VDC
Physical Characteristics	Housing: Plastic <br> IP Rating: IP30 <br> Dimensions: 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in) <br> Weight: 360 g (0.79 lb) <br> Installation: DIN-rail mounting
Environmental Limits	Operating Temperature: 0 to 60°C (32 to 140°F) <br> Storage Temperature (package included): -40 to 85°C (-40 to 185°F) <br> Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35 <br> EMI: CISPR 32, FCC Part 15B Class A <br> EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 <br> Safety: IEC 60950-1, EN 60950-1, EN 62368-1, UL 508 <br> Maritime: DNV <br> Hazardous Locations: ATEX, Class I Division 2, IECEx <br> Freefall: IEC 60068-2-32 <br> Shock: IEC 60068-2-27 <br> Vibration: IEC 60068-2-6, IEC 60068-2-64 <br> Declaration: Green Product, RoHS, CRoHS, WEEE <br> MTBF: Time: 1,175,887 hrs, Standards: Telcordia (Bellcore) Standard TR/SR



Key Features of MOXA NPort IA-5150

Industrial-Grade Durability

First and foremost, the IA-5150 servers boast an industrial-grade design, capable of withstanding extreme conditions. They feature robust construction with high electromagnetic interference (EMI) shielding, ensuring reliable operation in harsh environments.

Reliable Serial-to-Ethernet Connectivity

Moreover, these device servers provide reliable serial-to-Ethernet connectivity, supporting multiple serial communication protocols, including RS-232/422/485. This compatibility ensures seamless integration with a wide range of industrial equipment.

Advanced Security Measures

Additionally, security is a critical aspect of the IA-5150 servers. They support various encryption protocols, such as SSL and SSH, protecting data during transmission and preventing unauthorized access.

User-Friendly Configuration

Furthermore, the NPort IA-5150 servers are designed with user convenience in mind. They offer an intuitive web console and command line interface (CLI) for easy setup and management, making the configuration process straightforward and hassle-free.

Versatile Installation Options

The IA-5150 servers provide versatile installation options, including DIN-rail and wall mounting, ensuring flexibility in placement and ease of integration into existing setups.

Comprehensive Management Tools

In addition to their robust design, these servers come equipped with comprehensive management tools. Features like real-time monitoring, event logging, and alert notifications help maintain network stability and performance.



Applications of MOXA NPort IA-5150 Serial Device Server

Factory Automation

The IA-5150 servers are ideal for factory automation, where reliable communication between machines and control systems is essential. They facilitate seamless data exchange, enhancing operational efficiency and productivity.

Energy and Utilities

Moreover, in the energy and utilities sector, these device servers enable the integration of remote monitoring and control systems, ensuring reliable data transmission across the network.

Transportation Systems

Furthermore, the IA-5150 servers play a crucial role in transportation systems, enabling real-time communication between various components, such as traffic signals and control centers.

Oil and Gas Industry

Additionally, these servers are indispensable in the oil and gas industry, where they ensure robust data communication between field equipment and central control systems, enhancing safety and operational efficiency.



Price of MOXA NPort IA-5150 Serial Device Server in Bangladesh

Choosing the right supplier for your industrial needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Connectivity device from Crystal Vision Solutions, you are not only investing in high-quality solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
