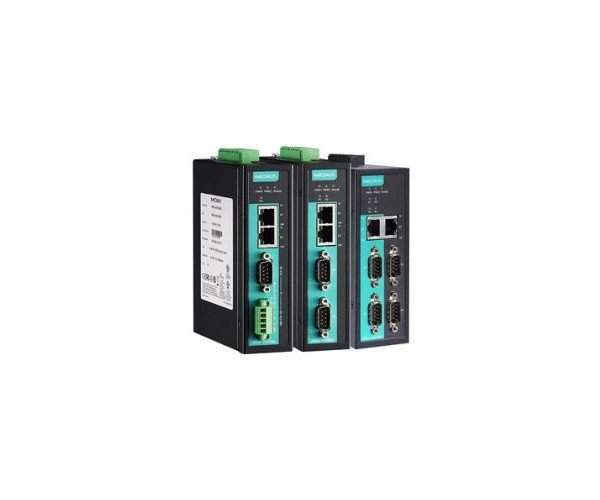

The MOXA NPort IA5150A Serial Device Server are a comprehensive solution for any industry requiring reliable and secure serial-to-Ethernet connectivity. With their advanced features, robust design, and user-friendly interface, these servers ensure seamless data communication and network efficiency.
MOXA NPort IA5150A Serial Device Server Specifications
Category | Specification |
---|---|
Ethernet Interface | Ports: 10/100BaseT(X) Ports (RJ45 connector) <br> Supports: 2 IP addresses <br> Connection: Auto MDI/MDI-X <br> Magnetic Isolation Protection: 1.5 kV (built-in) |
Ethernet Software Features | Configuration Options: Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console, Telnet Console <br> Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP <br> Filter: IGMP v1/v2 |
Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
Android API | Android 3.1.x and later |
Time Management | SNTP |
Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Security Functions | Authentication: Local database <br> Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 |
Serial Interface | Connector: DB9 male for RS-232, Terminal block for RS-422/485 <br> No. of Ports: 1 <br> Serial Standards: RS-232, RS-422, RS-485 <br> Operation Modes: Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP <br> Baudrate: 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k <br> Data Bits: 5, 6, 7, 8 <br> Stop Bits: 1, 1.5, 2 <br> Parity: None, Even, Odd, Space, Mark <br> Flow Control: None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF <br> Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms <br> Terminator for RS-485: 120 ohms <br> RS-485 Data Direction Control: ADDC (automatic data direction control) <br> Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND <br> RS-422: Tx+, Tx-, Rx+, Rx-, GND <br> RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND <br> RS-485-2w: Data+, Data-, GND |
Power Parameters | Input Current: 220 mA @ 12 VDC <br> Input Voltage: 12 to 48 VDC <br> No. of Power Inputs: 2 <br> Power Connector: Terminal block |
Physical Characteristics | Housing: Metal <br> Dimensions: 36 x 105 x 140 mm (1.42 x 4.13 x 5.51 in) <br> Weight: 475 g (1.05 lb) <br> Installation: DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | Operating Temperature: 0 to 60°C (32 to 140°F) <br> Storage Temperature (package included): -40 to 75°C (-40 to 167°F) <br> Ambient Relative Humidity: 5 to 95% (non-condensing) |
Standards and Certifications | EMC: EN 55032/35 <br> EMI: CISPR 32, FCC Part 15B Class A <br> EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 <br> Hazardous Locations: ATEX Zone 2, UL/cUL Class I Division 2 Groups A/B/C/D <br> Safety: UL 508 <br> Vibration: IEC 60068-2-6 <br> Shock: IEC 60068-2-27 <br> Freefall: IEC 60068-2-32 <br> Declaration: Green Product, RoHS, CRoHS, WEEE <br> MTBF: Time: 262,805 hrs, Standards: Telcordia (Bellcore) Standard TR/SR |
Key Features of MOXA NPort IA5150AÂ
Industrial-Grade Design
First and foremost, the IA5150A servers are designed to withstand harsh industrial conditions. They feature a rugged design with high electromagnetic interference (EMI) shielding, making them ideal for use in factories, energy plants, and other industrial settings.
Reliable Connectivity
Moreover, these servers provide reliable serial-to-Ethernet connectivity. They support multiple serial communication protocols, ensuring compatibility with a wide range of industrial devices.
Enhanced Security Features
Additionally, security is a top priority for the IA5150A servers. They support various encryption protocols, including SSL and SSH, to protect data transmission from unauthorized access.
User-Friendly Interface
Furthermore, the NPort IA5150A servers offer a user-friendly interface, simplifying the setup and management process. The intuitive web console and command line interface (CLI) facilitate easy configuration and operation.
Flexible Mounting Options
The IA5150A servers come with flexible mounting options, allowing for DIN-rail or wall mounting. This feature provides versatility in installation, ensuring that the servers can be conveniently placed in any industrial environment.
Comprehensive Management Tools
In addition to their robust design, these servers include comprehensive management tools. Features such as real-time monitoring, event logging, and alert notifications help maintain network stability and performance.
Applications of MOXA NPort IA5150A Serial Device Server
Factory Automation
The IA5150A servers are perfect for factory automation, where reliable communication between machines and control systems is essential. They enable seamless data exchange, improving operational efficiency and productivity.
Energy and Utilities
Moreover, in the energy and utilities sector, these device servers facilitate the integration of remote monitoring and control systems, ensuring reliable data transmission across the network.
Transportation Systems
Furthermore, the IA5150A servers play a vital role in transportation systems, enabling real-time communication between various components, such as traffic signals and control centers.
Oil and Gas Industry
Additionally, these servers are crucial in the oil and gas industry, where they ensure robust data communication between field equipment and central control systems, enhancing safety and operational efficiency.
Price of MOXA NPort IA5150A Serial Device Server in Bangladesh
Choosing the right supplier for your industrial needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Connectivity device from Crystal Vision Solutions, you are not only investing in high-quality solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
