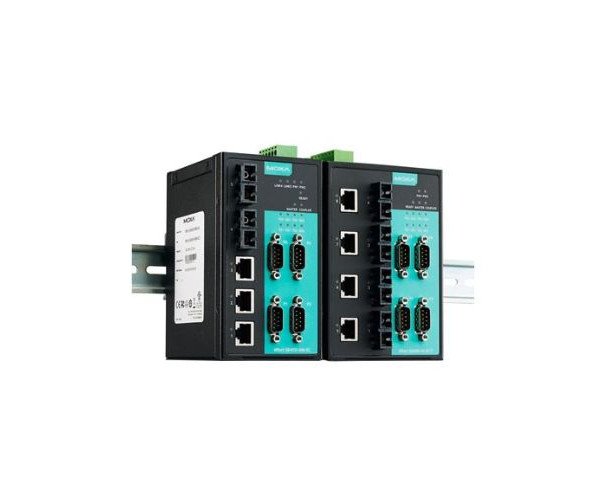

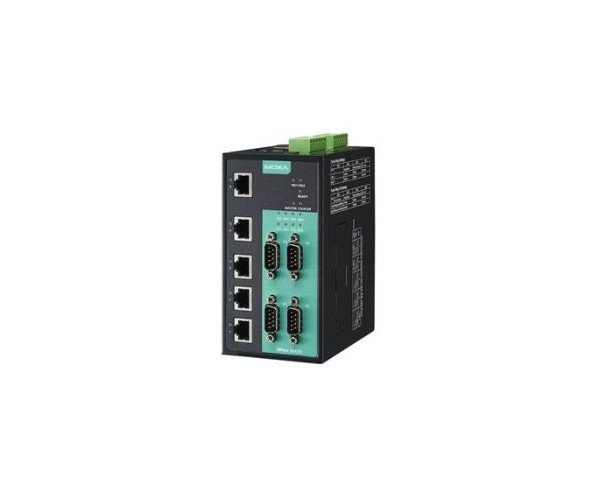

The MOXA NPort S8455I Serial Device Server is a powerful and reliable solution for industrial networking needs. With its rugged design, high-performance connectivity capabilities, advanced security features, and flexible management options, it stands out as an ideal choice for enhancing your industrial network. Whether upgrading your current connectivity infrastructure or looking for a robust device for harsh environments, the NPort S8455I delivers the performance and reliability necessary for seamless industrial operations.
MOXA NPort S8455I Serial Device Server Specifications
Category | Specification |
---|---|
Input/Output Interface | |
Alarm Contact Channels | 2, Resistive load: 1 A @ 24 VDC |
Digital Input Channels | 2 |
Digital Inputs | +13 to +30 V for state 1 |
-30 to +1 V for state 0 | |
Max. input current: 8 mA | |
Ethernet Interface | |
10/100BaseT(X) Ports (RJ45 connector) | 5 |
Magnetic Isolation Protection | 1.5 kV (built-in) |
Standards | IEEE 802.1D-2004 for Spanning Tree Protocol |
IEEE 802.1p for Class of Service | |
IEEE 802.1Q for VLAN Tagging | |
IEEE 802.1w for Rapid Spanning Tree Protocol | |
IEEE 802.1X for authentication | |
IEEE 802.3 for 10BaseT | |
IEEE 802.3ad for Port Trunk with LACP | |
IEEE 802.3u for 100BaseT(X) and 100BaseFX | |
IEEE 802.3x for flow control | |
Switch Properties | |
IGMP Groups | 256 |
Max. No. of VLANs | 64 |
Priority Queues | 4 |
VLAN ID Range | VID 1 to 4094 |
Ethernet Software Features | |
Configuration Options | Web Console (HTTP/HTTPS), Windows Utility, Serial Console, Telnet Console |
Management | BOOTP, Device Search Utility (DSU), DHCP Client, DHCP Option 82, HTTP, IPv4, LLDP, Port Mirror, RMON, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, Web Console |
Filter | 802.1Q, GVRP, IGMP v1/v2 |
Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, 5.x |
Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15 |
Android API | Android 3.1.x and later |
Time Management | SNTP |
MIB | Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
Redundancy Protocols | RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2 |
Security | HTTPS, SSL, SSH |
Authentication | Local Account Accessibility, RADIUS |
Serial Interface | |
Connector | DB9 male |
No. of Ports | 4 |
Operation Modes | Disabled, Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode |
Baudrate | 50 bps to 921.6 kbps |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, RTS/CTS, XON/XOFF |
Isolation | 2 kV |
RS-485 Data Direction Control | ADDC® (automatic data direction control) |
Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
Terminator for RS-485 | 120 ohms |
Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1) |
Serial Standards | RS-232/422/485 |
Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422: Tx+, Tx-, Rx+, Rx-, GND | |
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND | |
RS-485-2w: Data+, Data-, GND | |
DIP Switch Configuration | Ethernet Interface: Coupler, Master, Reserved, Turbo Ring |
Power Parameters | |
No. of Power Inputs | 2 |
Power Connector | 2 removable 6-contact terminal block(s) |
Input Current | 935 mA @ 12 VDC |
Input Voltage | 12 to 48 VDC |
Physical Characteristics | |
Housing | Metal |
Dimensions | 73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in) |
Weight | 578 g (1.27 lb) |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits | |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature | -40 to 75°C (-40 to 167°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.25 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF |
Environmental Testing | IEC 60068-2-1, IEC 60068-2-3 |
Hazardous Locations | Class I Division 2 |
Safety | EN 60950-1, IEC 60950-1, UL 508, UL 60950-1 |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-6 |
MTBF | |
Time | 287,354 hrs |
Standards | Telcordia (Bellcore) Standard TR/SR |
Key Features of MOXA NPort S8455I
Rugged Design
First and foremost, the NPort S8455I is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and electrical interference, making it ideal for industrial applications.
High-Performance Connectivity
Moreover, the NPort S8455I offers high-performance serial-to-Ethernet connectivity, ensuring fast and reliable data transmission for critical industrial applications. It supports data rates up to 921.6 kbps, facilitating efficient communication between devices.
Robust Security
In addition, the device integrates advanced security features, including SSL and SSH encryption, ensuring that your data remains secure from potential threats and unauthorized access.
Flexible Management
Furthermore, the NPort S8455I supports a variety of management options, including web-based configuration, Telnet, and SNMP, providing flexibility for various industrial networking needs.
Easy Integration
Lastly, the NPort S8455I is designed for easy integration into existing networks, with support for a wide range of network protocols and seamless compatibility with various industrial devices.
Why Choose MOXA NPort S8455I Serial Device Server?
Industrial-Grade Durability
First and foremost, the NPort S8455I is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments. Its robust construction allows it to operate flawlessly even under extreme conditions.
High-Performance Connectivity
Moreover, with robust serial-to-Ethernet connectivity and support for high data rates, this device provides fast and reliable communication for critical industrial applications. This ensures that your operations run smoothly and without interruptions.
Advanced Security Features
In addition, robust security protocols, including SSL and SSH encryption, protect your data from potential threats, ensuring secure operations. This added layer of security is crucial for maintaining the integrity and confidentiality of your data.
Flexible Management Options
Furthermore, the NPort S8455I supports multiple management options, including web-based configuration and SNMP, making setup, configuration, and management straightforward and efficient. This flexibility allows for easy customization to meet specific network requirements.
Easy Integration and Compatibility
The NPort S8455I supports a wide range of network protocols and is compatible with various industrial devices. This ensures seamless integration into your existing network. This versatility makes it an ideal choice for a wide array of industrial applications.
Price of MOXA NPort S8455I Serial Device Server in Bangladesh
Choosing the right supplier for your industrial needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Connectivity device from Crystal Vision Solutions, you are not only investing in high-quality solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media.
