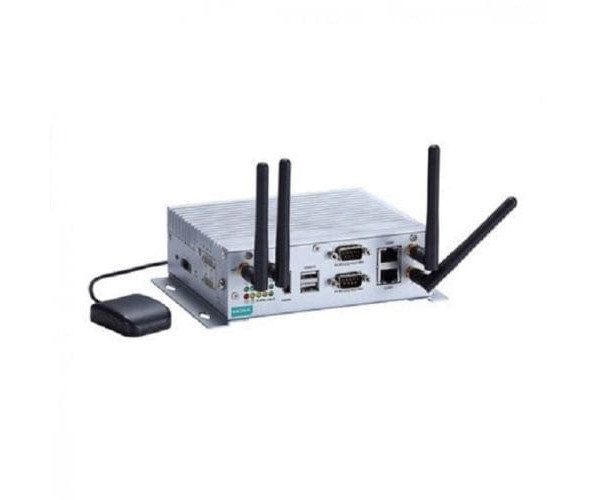

The MOXA V2201-E1 Industrial Computing Device is a powerful and reliable solution for industrial computing needs. With its rugged design, high-performance computing capabilities, advanced security features, and flexible connectivity options, it stands out as an ideal choice for enhancing your industrial operations. Whether upgrading your current computing infrastructure or looking for a robust device for harsh environments, the V2201-E1 delivers the performance and reliability necessary for seamless industrial operations.
Specifications of MOXA V2201-E1 Industrial Computing Device
Category | Specifications |
---|---|
CPU | Intel Atom® Processor E3815 (512K Cache, 1.46 GHz) |
System Memory Pre-installed | 4 GB DDR3L |
System Memory Slot | SODIMM DDR3/DDR3L slot x 1 |
Supported OS | Windows Embedded Standard 7 (WS7E) 64-bit, Windows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bit, Windows 10 Embedded IoT Enterprise 2019 LTSC Entry 64-bit, Windows 10 Embedded IoT Enterprise 2021 LTSC Entry 64-bit, Linux Debian 9 OS image (Kernel 4.9), Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers |
Storage Slot | mSATA slots x 1, SD 3.0 (SDHC/SDXC) socket x 1 |
Computer Interface | |
Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
Serial Ports | RS-232/422/485 ports x 2, software selectable (DB9 male) |
USB 2.0 | USB 2.0 hosts x 2, type-A connectors |
USB 3.0 | USB 3.0 hosts x 1, type-A connector |
Digital Input | DIs x 4 |
Digital Output | DOs x 4 |
Expansion Slots | mPCIe slots x 2 |
Video Output | HDMI x 1, HDMI connector (type A) |
Wi-Fi Antenna Connector | RP-SMA x 2 |
Cellular Antenna Connector | SMA x 2 |
Number of SIMs | 1 |
SIM Format | Mini |
GPS Antenna Connector | SMA x 1 |
Digital Inputs | |
Isolation | 3K VDC |
Connector | Screw-fastened Euroblock terminal |
Dry Contact | On: short to GND, Off: open |
I/O Mode | DI |
Sensor Type | Dry contact, Wet contact (NPN or PNP) |
Wet Contact (DI to COM) | On: 10 to 30 VDC, Off: 0 to 3 VDC |
Digital Outputs | |
Connector | Screw-fastened Euroblock terminal |
Current Rating | 200 mA per channel |
I/O Type | Sink |
Voltage | 24 to 30 VDC |
LED Indicators | |
System | SD slots x 1, Power x 1, Storage x 1, Programmable x 1 |
Wireless Signal Strength | Cellular/Wi-Fi x 2 |
LAN | 1 per port (10/100/1000 Mbps) |
Serial | 2 per port (Tx, Rx) |
Serial Interface | |
Baudrate | 50 bps to 115.2 kbps |
Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
Isolation | N/A |
Parity | None, Even, Odd, Space, Mark |
Stop Bits | 1, 1.5, 2 |
Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
Power Parameters | |
Input Voltage | 9 to 36 VDC |
Power Connector | Terminal block (for DC models) |
Power Consumption (Max.) | 2000 mA @ 9 VDC |
Power Consumption | 18 W (max.) |
Physical Characteristics | |
Housing | Aluminum |
IP Rating | IP30 |
Dimensions (with ears) | 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in) |
Dimensions (without ears) | 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in) |
Weight | 940 g (2.09 lb) |
Installation | Wall mounting |
Environmental Limits | |
Operating Temperature | -40 to 85°C (-40 to 185°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
EMC | EN 55032/35, EN 61000-6-2/-6-4 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
Safety | EN 60950-1, UL 508, UL 60950-1 |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-64 |
Declaration | |
Green Product | RoHS, CRoHS, WEEE |
MTBF | 408,275 hrs |
Standards | Telcordia (Bellcore), GB |
Key Features of MOXA V2201-E1 Industrial Computing Device
Rugged Design
The V2201-E1 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and shocks, making it ideal for industrial applications.
High-Performance Computing
Powered by a robust processor, the V2201-E1 delivers high-performance computing capabilities, ensuring fast and reliable processing for critical industrial applications.
Robust Security
The device integrates advanced security features, including secure boot and TPM 2.0, ensuring that your computing environment remains secure from potential threats and unauthorized access.
Flexible Connectivity
The V2201-E1 supports a variety of connectivity options, including multiple Ethernet ports and USB interfaces, providing flexibility for various industrial networking needs.
Easy Management
The computing device features an intuitive web-based interface and support for SNMP, allowing easy setup, configuration, and management of your industrial network.
Why Choose MOXA V2201-E1 Industrial Computing Device?
Industrial-Grade Durability
The V2201-E1 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments.
High-Performance Computing
With a powerful Intel® Atom® processor and ample memory, this device provides fast and reliable computing capabilities for critical industrial applications.
Advanced Security Features
Robust security protocols, including TPM 2.0 and Secure Boot, protect your computing environment from potential threats, ensuring secure operations.
Flexible Connectivity Options
The V2201-E1 supports multiple connectivity options, including Ethernet, USB, and serial ports, providing versatility for various industrial networking needs.
Easy Management and Configuration
The intuitive web-based interface and SNMP support make setup, configuration, and management straightforward and efficient.
Price of MOXA MC-1111-E4 Industrial Computing Device in Bangladesh
Choosing the right supplier for your industrial computing needs is as crucial as selecting the right products. Crystal Vision Solutions offers numerous benefits, including authorized distribution, expert technical support, competitive pricing, and reliable delivery. When you purchase Moxa Industrial Computing device from Crystal Vision Solutions, you are not only investing in high-quality computing solutions but also ensuring a seamless and efficient deployment process. Enhance your industrial performance and reliability by choosing Crystal Vision Solutions as your trusted supplier. Contact us for price via our hotline or social media
