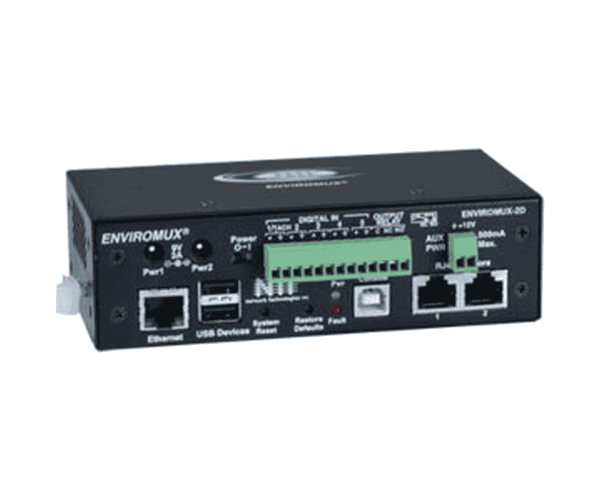

NTI E-2D Environment Monitoring System

Product Specifications

FEATURE	Specification
RJ45 Sensor Ports	2 x Female RJ45 Jacks
Dry Contact Closures	5 x Screw Terminal Pairs
Output Relay	1 x Screw Terminal Pair
USB Ports	2 x Female USB Type A<br>1 x Female USB Type B
Ethernet Port	1 x RJ45, 10/100 Base-T Ethernet interface
Operating Temperature	32 to 140°F (0 to 60°C)
Storage Temperature	-4 to 167°F (-20 to 75°C)
Humidity	17-90% RH, non-condensing
Warranty	2 Year Standard (Extended Available)
Dimensions	5.82 x 3 x 1.75 in. (148x76x44 mm)
Weight	1.0 lb (0.45 kg)
MTBF	229,580 hrs
Power Input	100 – 240 VAC 50/60 Hz AC Adapter (Included)
Power Consumption	10 W

Introduction of Environment Monitoring System – Small Enterprise

Part:(E-2D)

Environmental monitoring systems are essential for preventing hardware damage in server rooms, data centres, and network closets by issuing critical condition alerts and enabling remote reboot capabilities.

Temperature Monitoring
Heat is the most prevalent environmental threat in server rooms and wiring closets. The system detects critical temperature rises or drops and promptly notifies you of heating issues.

Humidity Monitoring
Detect abnormal humidity conditions and set appropriate levels for each sensor’s environment, ensuring early detection of irregularities.

Water Presence Detection
Whether from a tripped sprinkler system or an unexpected flood, water in a server room or wiring closet is highly undesirable. The system ensures immediate notification upon water detection.

Physical Security Monitoring
Monitor “dry-contact” devices including motion sensors, door sensors, vibration sensors, and smoke detectors to enhance the security of your environment.

Power Control
Remotely reboot and control power (on/off) to servers and network devices, ensuring uninterrupted operation.

The ENVIROMUX Environment Monitoring System continuously monitors a multitude of connected sensors to detect environmental and security conditions in real-time. It alerts personnel via various communication channels, including email, alarm beacons, sirens, web pages, network management (SNMP), voice calls, and SMS messages, whenever a sensor exceeds its configurable threshold.

Rapid changes in temperature and humidity, water leaks, power outages, human error, and unauthorized intrusions are the primary environmental threats businesses face across all industries. An Environment Monitoring System is the most proactive way to mitigate unnecessary costs associated with expensive equipment replacement and unplanned downtime caused by environmental hazards.

Features & Benefits

Comprehensive Environmental Management
Monitor and manage server room conditions via IP, ensuring optimal environmental control.

Extensive Sensor Support

• External Sensors: Supports 2 configurable external sensors.
• Digital Inputs: Accommodates 5 digital inputs sensitive to contact closure.
• Remote Sensors: Connects up to 8 remote temperature/humidity sensors over IP.
• Output Relay: Includes one output relay for controlling external devices.

Enhanced Surveillance

• IP Cameras: Supports IP network video cameras for live facility monitoring.
• Device Monitoring: Capable of pinging up to 64 IP network devices.
• Operating System: Built-in Linux for robust performance.

Advanced Alert System

• Multiple Alerts: Create numerous alerts for any installed sensor.
• Smart Alerts: Configure sensor conditions (events) to trigger alerts individually or in combination with other events.
• Message Log: Alerts are logged and accessible via a web user interface.

Network Integration

• Automatic Configuration: Network settings are auto-configured via a connected DHCP server.
• Open Source Integration: Compatible with monitoring packages like Nagios and MRTG.

Connectivity and Expansion

• USB Ports: Two USB ports for connecting a USB modem or downloading log data, plus one USB console port for serial terminal interface.
• Scalability: Up to five units can be linked to expand sensor connections.
• Power Redundancy: Dual redundant power supplies for connection to two separate power sources.

Flexible Mounting Options

• Zero-RU Mounting: Optional flexible mounting solutions to fit various environments.

Robust Security

• Encryption and Authentication: Features HTTPS, SSHv2, SSLv3, IP filtering, LDAPv3, AES 256-bit encryption, and 16-character username/password authentication.
• User Access Control: Restricts access rights based on user accounts.

Versatile Applications

Ideal for use in data centers, co-location sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area requiring monitoring.

Detailed Breakdown of Features

The Crystal Vision Solutions Environment Monitoring System is engineered to deliver high accuracy and reliability. The multi-sensor integration allows for monitoring various parameters such as temperature, humidity, air quality, and more, providing a comprehensive overview of the environment. The user-friendly web and mobile interfaces ensure easy access to data, enabling timely decision-making.

Designed to seamlessly integrate with existing systems, this monitoring solution enhances operational efficiency. Real-time alerts and notifications keep you informed of any deviations, allowing for prompt corrective actions. The secure data logging and reporting features ensure that all collected data is stored safely and can be accessed for analysis and compliance purposes.

The system’s battery backup guarantees uninterrupted operation, even during power outages. Its modular design allows for easy expandability, ensuring that your monitoring needs are met as your business grows.

User Experience

Users of the Crystal Vision Solutions Environment Monitoring System report significant improvements in operational efficiency and environmental stability. The system’s high accuracy and real-time alerts enhance proactive management, reducing downtime and preventing potential issues. The user-friendly interfaces and seamless integration with existing systems have been particularly appreciated, making the system easy to use and implement.

Why Choose the Crystal Vision Solutions Environment Monitoring System?

Choosing the Crystal Vision Solutions Environment Monitoring System ensures that you are investing in a reliable, high-performance solution for monitoring and managing environmental conditions. Its multi-sensor integration, real-time alerts, and secure data storage provide a comprehensive and efficient monitoring solution. The system’s compatibility with existing infrastructures and modular design for future upgrades make it a versatile choice for small enterprises.

How to Purchase the Environment Monitoring System

Purchasing the Environment Monitoring System from Crystal Vision Solutions is easy. Visit our website, browse our product catalog, and place your order online. You can also contact our sales team directly for personalized assistance and advice. We offer fast shipping and secure payment options to make your shopping experience seamless and convenient.

What is the Price of NTI E-2D Environment Monitoring System ib BD

The price of the Environment Monitoring System may vary based on market conditions and availability. For the most accurate and up-to-date pricing, please visit the Crystal Vision Solutions website or contact our sales team. We are committed to offering competitive prices and exceptional value to our customers.
