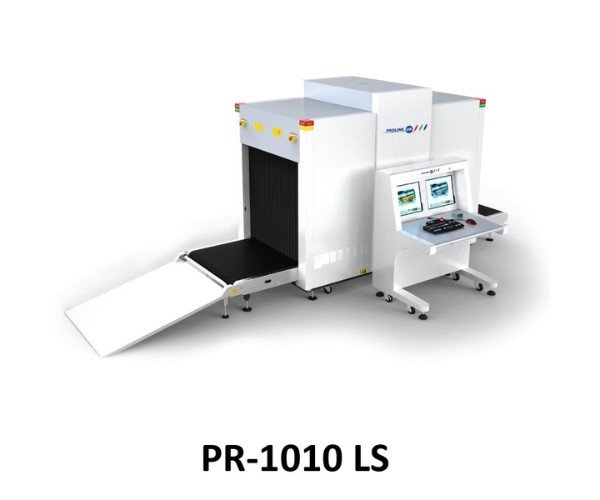

The Proline PR-1010LS X-Ray Baggage Scanner is an advanced security solution designed for high-traffic environments. Its large tunnel size of 1000mm x 1000mm ensures the seamless scanning of larger baggage and parcels. This makes it ideal for airports, government facilities, and large-scale events. With 38mm steel penetration and high-resolution imaging, this scanner guarantees the detection of dangerous objects such as weapons, explosives, and contraband with exceptional precision. Its conveyor speed of 0.22 m/s and maximum load of 200 kg provide efficient scanning, thus ensuring high throughput even in busy areas.
This scanner features cutting-edge X-ray technology that produces high-quality images using dual-energy imaging, thus allowing operators to distinguish between organic and inorganic materials easily. The wire resolution of 40 AWG further enhances its ability to detect even the smallest objects, ensuring thorough security checks. Additionally, the automatic threat detection system improves security measures by highlighting dangerous items, while the film-safe feature guarantees that sensitive media like film and electronics remain unaffected.
The Proline PR-1010 LS comes equipped with an array of user-friendly features, including customizable settings and image processing options . Thus, allowing the security personnel to conduct detailed inspections with ease. Its low X-ray dose of less than 1.8μSv per inspection ensures the safety of both operators and passengers during the scanning process.
Proline PR-1010LS X-Ray Baggage Scanner Specifications
| Specification | Details |
|---|---|
| Model | PR-1010 LS |
| Tunnel Size | 1000mm x 1000mm |
| Conveyor Speed | 0.22 m/s |
| Conveyor Height | 342mm |
| Conveyor Max Load | 200 kg |
| X-ray Dose per Inspection | <1.8μSv |
| Wire Resolution | 38 AWG (Guarantee), 40 AWG (Typical) |
| Penetration | 38mm steel (Guarantee), 40mm steel (Typical) |
| Spatial Resolution | 1.3mm (both level and vertical) |
| Penetration Resolution | 32 AWG (Guarantee), 34 AWG (Typical) |
| Film Safety | ASA/ISO1600 Film |
| Power Consumption | 1.5 kW |
| Operating Temperature | 0°C to 40°C |
| Noise Level | <60 dB |
Key Features
- Large 1000mm x 1000mm tunnel for scanning larger baggage.
- Penetrates up to 38mm of steel for accurate threat detection.
- High wire resolution of 40 AWG, ensuring clear imaging.
- Dual-energy X-ray imaging for distinguishing between organic and inorganic objects.
- Supports up to 200 kg on the conveyor belt.
- Automatic threat detection system with image storage and retrieval.
- ASA/ISO1600 film safety guarantee to protect sensitive items.
- Efficient conveyor speed of 0.22 m/s, designed for high throughput.
Applications
- Airports: Designed for high-traffic areas to ensure the secure and efficient screening of baggage.
- Government Buildings: Helps prevent the transport of contraband and other dangerous materials.
- Large-scale Events: Provides security at crowded events where large items are checked.
- Logistics Centers: Ensures the safe and secure screening of packages in transit.
Price of Proline PR-1010LS X-Ray Baggage Scanner in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
