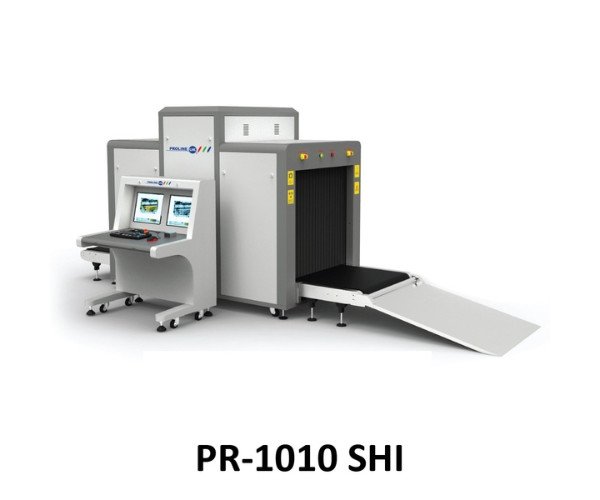

The Proline PR-1010SHI X-Ray Baggage Scanner is a high-performance security solution designed to meet the demands of high-traffic environments such as airports, government buildings, and large public events. Its large tunnel size of 1000mm x 1000mm allows for the efficient scanning of large baggage and parcels, thus ensuring comprehensive security checks. This scanner is ideal for screening large volumes of luggage quickly and effectively.
Equipped with advanced X-ray technology, the PR-1010SHI offers superior imaging capabilities, including a wire resolution of 38 AWG, which guarantees accurate detection of even the smallest objects. Its penetration capacity of 34mm steel ensures that security threats like weapons, explosives, and contraband are detected with high accuracy. The scanner also boasts dual-energy X-ray imaging, which helps to differentiate between organic and inorganic materials.
The Proline PR-1010SHI ensures safe scanning operations, with a low X-ray dose of less than 1.8μSv per inspection. This makes it safe for both operators and the items being scanned. This scanner also offers a range of advanced features, including automatic image processing, threat detection, and the ability to store up to 60,000 images. These features make it an essential tool for enhancing security operations in high-risk environments.
Proline PR-1010SHI X-Ray Baggage Scanner Specifications
| Specification | Details |
|---|---|
| Model | PR-1010SHI |
| Tunnel Size | 1000mm x 1000mm |
| Conveyor Speed | 0.22 m/s |
| Conveyor Height | 338.5mm |
| Conveyor Max Load | 200 kg |
| X-ray Dose per Inspection | <1.8μSv |
| Wire Resolution | 38 AWG (Guaranteed), 40 AWG (Typical) |
| Penetration | 32mm steel (Guaranteed), 34mm steel (Typical) |
| Penetration Resolution | 30 AWG (Guaranteed), 32 AWG (Typical) |
| Film Safety | ASA/ISO1600 Film |
| Power Consumption | 1.5 kW |
| Operating Temperature | 0°C to 40°C |
| Noise Level | <60 dB |
Key Features
- Large 1000mm x 1000mm tunnel for scanning oversized baggage.
- Penetration of up to 34mm steel for high accuracy in detecting threats.
- Wire resolution of 38 AWG, ensuring the detection of even small items.
- Dual-energy X-ray imaging to differentiate between organic and inorganic materials.
- Conveyor speed of 0.22 m/s with a maximum load capacity of 200kg.
- Low X-ray dose of <1.8μSv per inspection for operator safety.
- Film-safe technology, ensuring no damage to sensitive materials.
- Automatic threat detection system for enhanced security measures.
- Stores up to 60,000 images with advanced image recall and processing options.
Applications
- Airports: Ensures fast and thorough baggage screening for large volumes of luggage.
- Government Facilities: Offers robust security to protect against the smuggling of contraband and weapons.
- Public Events: Ideal for securing large gatherings, ensuring safety for all attendees.
- Logistics Centers: Provides an efficient screening process for packages in transit, ensuring compliance with safety standards.
Price of Proline PR-1010SHI X-Ray Baggage Scanner in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
