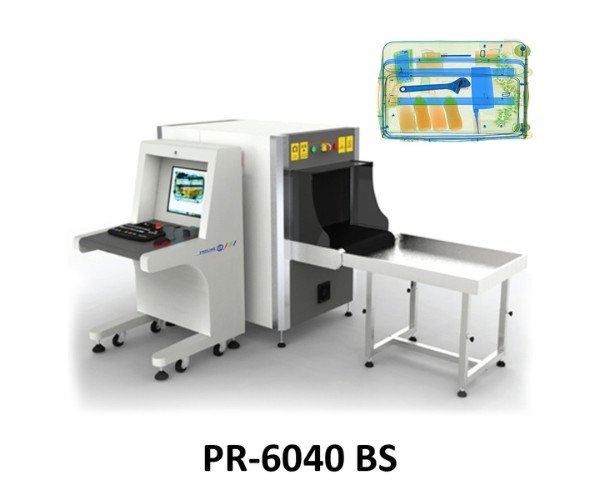

The Proline PR-6040 BS X-Ray Baggage Scanner is a powerful and versatile security solution designed to meet the stringent demands of modern security environments. With a tunnel size of 615mm x 418mm, this scanner is ideal for inspecting various-sized packages. Thus, ensuring that no threat goes undetected. Featuring dual-energy X-ray imaging technology, the PR-6040 BS provides high-resolution images with advanced image enhancement options, thus enabling accurate threat identification.
Equipped with a high-density region alarm and explosives and narcotics detection, the Proline PR-6040 BS automatically identifies potential threats based on their atomic signatures. This ensures that dangerous objects such as weapons, explosives, and contraband are flagged for inspection. Therefore, making it suitable for high-security locations such as airports, government buildings, and corporate offices. The system stores up to 100,000 images, and the Threat Image Projection (TIP) feature helps operators stay alert by inserting fictional threat images during routine scans.
Additionally, the system supports dual-direction scanning and a real-time processing system that enhances image quality and provides detailed analysis. This makes the detection process quick and efficient. With a powerful 160kV X-ray generator, this baggage scanner can penetrate steel up to 32mm, therefore offering exceptional clarity for even the densest materials.
Proline PR-6040 BS X-Ray Baggage Scanner Specifications
| Specification | Details |
|---|---|
| Tunnel Size | 615mm × 418mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| X-ray Generator | 140-160kV, Oil-cooled |
| Penetration | 32mm (steel) |
| Wire Resolution | 38 AWG (typical) |
| Image Enhancement | 1-64x zoom, color/BW, pseudo color, etc. |
| Threat Detection | Explosives, narcotics, high-density alarm |
| Image Storage | Up to 100,000 images |
| Power Consumption | 1.4 KW (max), 1.0 KW (working) |
| Monitor | 17″ or 19″ monitor (optional) |
| Operating Temperature | 0℃ to 45℃ |
| Storage Temperature | -40℃ to 60℃ |
| Noise Level | <58db |
Key Features
- Dual-energy X-ray imaging for enhanced threat detection.
- High-resolution imaging with up to 1280 x 1024 pixels.
- Explosives and narcotics detection using atomic number signatures.
- Advanced image enhancement tools such as zoom, negative, and pseudo color.
- Threat Image Projection (TIP) to insert fictional threat images for operator training.
- Real-time image processing with 24-bit color analysis.
- 100,000 image storage capacity and compatibility with USB for easy data transfer.
- Dual-direction scanning and built-in diagnostic tools for system reliability.
- Network-ready for centralized storage and remote operations.
Applications
- Airports: Ideal for baggage screening to ensure the detection of potential threats such as explosives, weapons, and contraband.
- Government facilities: Provides high-security inspection of bags and parcels to prevent unauthorized items from entering secure areas.
- Logistics and shipping centers: Ensures that packages are thoroughly inspected for dangerous materials before transportation.
- Corporate offices: Helps protect employees and sensitive materials by identifying potentially harmful items in bags or packages.
Price of Proline PR-6040 BS X-Ray Baggage Scanner in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
