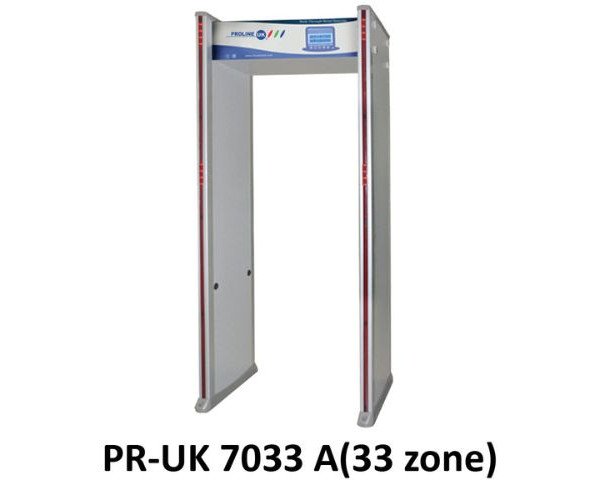

The Proline PR-UK 7033 33 zone Walk Through Metal Detector is a high-performance 33-zone security solution designed for fast and accurate detection of metallic threats. With a modular design, this unit allows for quick and easy assembly, requiring only eight screws and three internal electrical connections. Its advanced detection capabilities, combined with a user-friendly interface, make it ideal for environments that demand heightened security, such as airports, government buildings, and event venues.
The PR-UK 7033’s dual-channel and DSP circuitry allow multiple detectors to function simultaneously without interference, even in close proximity. This ensures smooth operation in crowded environments with multiple scanning units. The system’s traffic counter tracks the number of individuals passing through, counting alarms and providing statistics to enhance security oversight.
Equipped with 33 detection zones, the PR-UK 7033 provides superior accuracy in pinpointing metallic objects on different areas of the body. Interference suppression technology eliminates effects from nearby electronics like x-ray monitors, ensuring precise detection. Additionally, the tamper-proof design secures the device, preventing unauthorized access to cables and electronics.
With IEC 529 certification and a wide operating temperature range of -20°C to +70°C, the PR-UK 7033 is built for durability and reliability in various environments. Its low power consumption makes it energy-efficient while maintaining a high level of performance.
Proline PR-UK 7033 33 zone Walk Through Metal Detector Specifications
Specification | Details |
---|---|
Detection Zones | 33 zones |
Sensitivity Levels | Adjustable |
Power Supply | AC100V~240V, 50/60Hz |
Power Consumption | 35W |
Operating Temperature | -20°C to +70°C |
Operating Humidity | Up to 95% (non-condensing) |
Outer Frame Dimensions | 2210mm (H) x 880mm (W) x 600mm (D) |
Inner Frame Dimensions | 2010mm (H) x 760mm (W) x 600mm (D) |
Traffic Counter | Tracks number of people and alarms |
Display | LCD display with user-friendly interface |
Assembly | Modular design for quick setup |
Tamper-Proof Design | Secure, lockable cabinet |
Compliance | IEC 529 |
Key Features
- 33 Detection Zones: Provides highly accurate identification of metal objects in different areas of the body.
- Modular Design: Easy assembly with just eight screws and three internal connections.
- Traffic Counter: Tracks the number of people passing through, alarms, and alarm percentage.
- Interference Suppression: Built-in DSP technology eliminates interference from x-ray monitors and nearby electronic devices.
- Tamper-Proof Cabinet: Prevents unauthorized access to cables, connectors, and electronics, enhancing security.
- Dual Channel Operation: Allows multiple units to operate in close proximity without interference.
- Wide Operating Range: Functions between -20°C to +70°C, with humidity tolerance up to 95% (non-condensing).
Applications
- Airports: For thorough screening of passengers.
- Government Buildings: Enhancing security by detecting concealed weapons or contraband.
- Event Venues: Monitoring large crowds for safety.
- Correctional Facilities: Preventing smuggling of prohibited items.
- Public Facilities: Ensuring the safety of public spaces like stadiums and convention centers.
