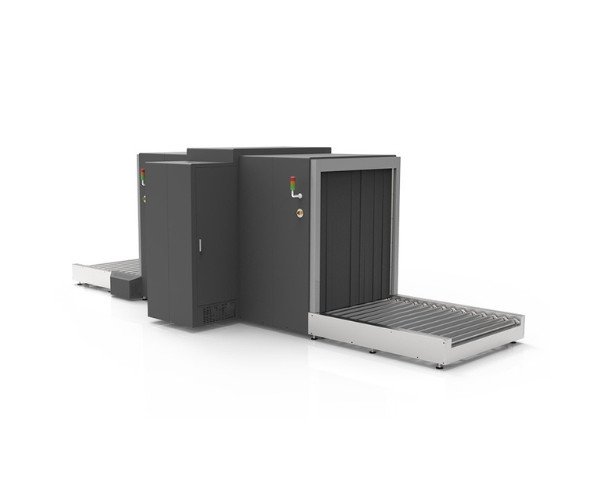

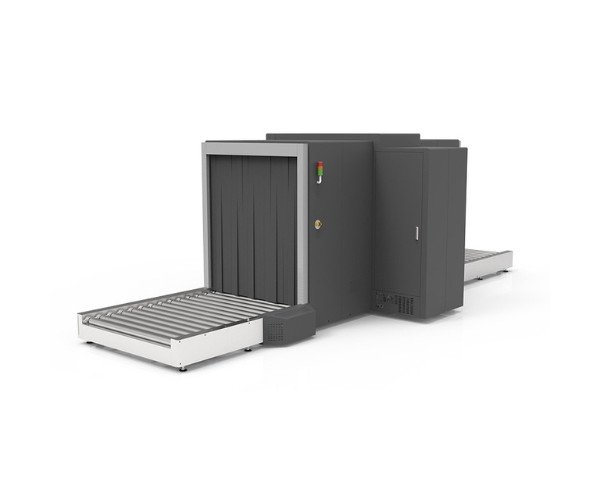

The Safeagle HP-SE150180C Large X-ray Screening System represents a breakthrough in X-ray baggage and parcel screening technology. This high-performance scanner is optimized for heavy cargo inspection, offering a 1501 x 1801 mm tunnel for seamless processing of large packages and pallets. With Safeagle’s advanced 4/7-color imaging technology, security operators can now quickly distinguish materials based on atomic structure. Thus, improving both speed and accuracy in threat identification. This model is especially well-suited for high-security locations including border crossings, logistics centers, government facilities, and military bases. Therefore, providing enhanced security capabilities where it’s needed most.
The HP-SE150180C also integrates the Zeff-scan feature, which automatically highlights potential threats by identifying explosive or narcotic materials in real time, based on atomic number properties. This feature significantly reduces inspection times while ensuring thorough, precise analysis. The system’s dual-energy capabilities further enhance visibility, with metallic objects displayed in blue and organic materials in orange, streamlining item differentiation for the operator. With flexible display options, the HP-SE150180C supports split-screen and full-screen modes for optimal viewing.
Safeagle HP-SE150180C Large X-ray Screening System Specifications
| Feature | Details |
|---|---|
| Tunnel Size | 1501 mm (W) x 1801 mm (H) |
| Dimensions | 7548 mm (L) x 2732 mm (W) x 2415 mm (H) |
| Conveyor Max Load | 2000 kg |
| Belt Speed | 0.23 m/s, bidirectional |
| X-ray Generator Voltage | 140 kV (optional 160 kV) |
| Wire Detectability | 36 AWG |
| Spatial Resolution | 1.0 mm horizontal, 1.0 mm vertical |
| Steel Penetration | 36 mm steel, typical |
| Tube Current | 0.7 mA |
| Cooling System | Sealed oil bath with forced air |
| Beam Direction | Diagonally upward |
| Dual-Energy | Yes |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Up to 95% non-condensing |
| Power Requirements | 220 VAC ±10%, 50/60 Hz, 10 A max |
Key Features
- Advanced 4/7-Color Imaging Technology: Switchable imaging modes to allow material identification with color-coding.
- Zeff-Scan Function: Real-time detection for explosives and narcotics based on atomic number recognition.
- Dual-Energy Detection: Displays organic and inorganic materials in different colors for easy identification.
- Customizable Viewing Modes: Split-screen and full-screen options available for flexible monitoring.
- Heavy Duty Conveyor: Supports loads up to 2000 kg, ideal for large cargo inspections.
Applications
- Customs and Border Security: Enables high-volume cargo screening for contraband and security threats.
- Logistics Centers: Assists with secure processing of large shipments, improving supply chain security.
- Government and Military Facilities: Provides robust screening capabilities for sensitive, high-security areas.
- Airports and Ports: Streamlines the inspection process for heavy cargo shipments and large baggage.
Price of Safeagle HP-SE150180C Large X-ray Screening System in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
