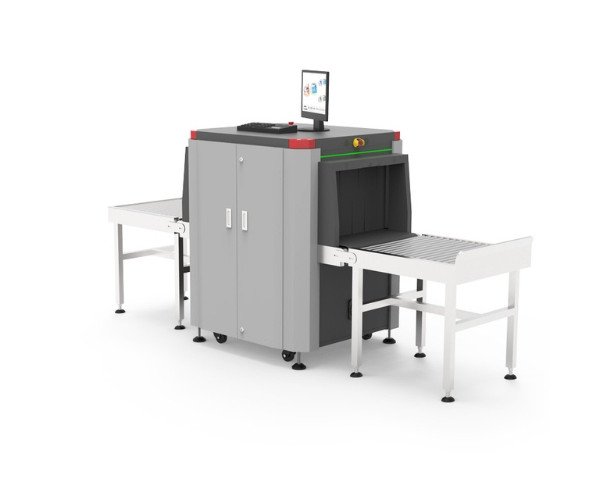

The Safeagle HP-SE6040C X-Ray Baggage Scanner is a high-performance security solution, delivering superior detection capabilities through its advanced switchable 4/7-colors imaging technology. This compact yet powerful scanner is specifically designed for high-traffic security environments like border crossings, railway stations, shopping malls, and hotels. With its robust design and state-of-the-art features, the HP-SE6040C ensures maximum security and operational efficiency, making it an ideal choice for modern security demands.
The scanner’s 7-color imaging system enhances the ability to differentiate between materials based on their atomic numbers, allowing for precise identification of organic, inorganic, and mixed materials. The system uses the Zeff-scan function to highlight potential threats such as explosives and narcotics during real-time scanning, significantly increasing the accuracy of threat detection.
Additionally, the dual-energy technology supports the identification of concealed objects by displaying metallic items. This advanced imaging capability ensures that even the smallest or most hidden objects are detected with precision. The system also supports multiple split-screen and full-screen options, thus allowing operators to customize their viewing experience for optimal security.
Safeagle HP-SE6040C X-Ray Baggage Scanner Specifications
| Specification | Details |
|---|---|
| Tunnel Size | 624(W) x 429(H) mm |
| Dimensions | 1499(L) x 947(W) x 1340(H) mm |
| Conveyor Max Load | 165 kg |
| Belt Speed | 0.23 m/s (Bidirectional) |
| X-ray Generator Voltage | 140 kV |
| Wire Detectability | 40 AWG |
| Spatial Resolution | 1.0 mm Horizontal, 1.0 mm Vertical |
| Steel Penetration | 36 mm steel (Typical) |
| Tube Current | 0.7 mA |
| Cooling | Sealed Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm-Up Required |
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Humidity | Up to 95% Non-Condensing |
| Power Requirements | 220VAC±10%, 50/60Hz, 10A Max |
Key Features
- Switchable 4/7-colors imaging technology: Provides enhanced material identification for more accurate threat detection.
- Zeff-scan function: Automatically highlights potential threats like explosives and narcotics based on atomic number.
- Dual-energy technology: Differentiates between metallic and organic objects, ensuring thorough inspections.
- Real-time imaging processing: Ensures fast and accurate scanning with immediate feedback.
- Split-screen and full-screen options: Customizable viewing modes for optimal operator performance.
- Splicing scanning: Capable of scanning thin objects with high precision.
Applications
- Airports
- Railway and metro stations
- Shopping malls
- Government buildings
- Border crossings
- Hotels
- Events and exhibition centers
Price of Safeagle HP-SE6040C X-Ray Baggage Scanner in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
