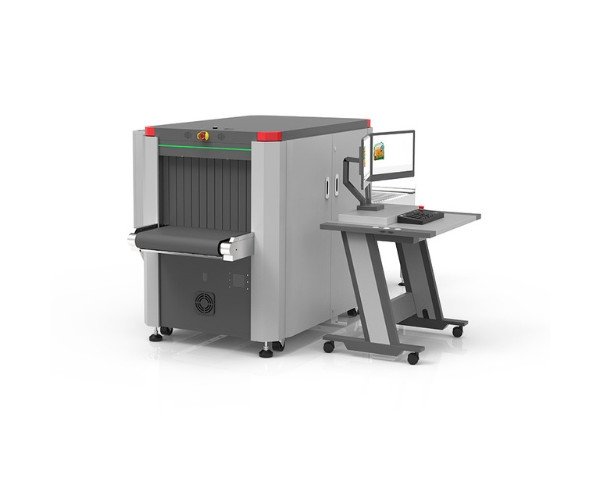

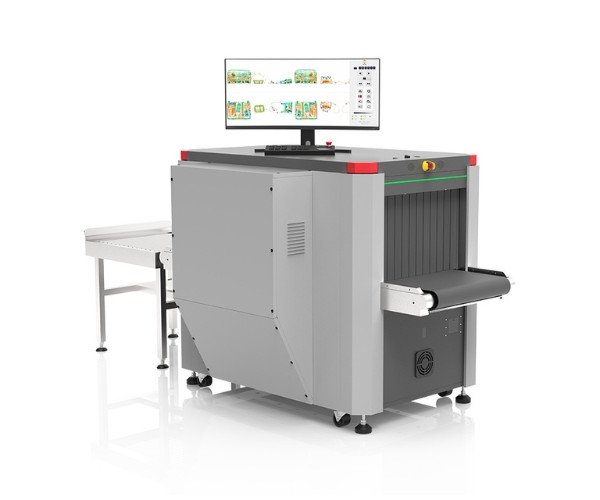

The Safeagle HP-SE6040D Dual View X-ray Baggage Scanner offers a high-precision security solution with dual-view scanning to capture objects from both horizontal and vertical angles. Designed to detect concealed threats in high-traffic environments, this scanner leverages switchable 4/7-color imaging and dual-energy technology, distinguishing between organic and inorganic materials with ease. With a large tunnel size and dual X-ray generators operating at 140 kV, it delivers high penetration and visibility into dense items.
The HP-SE6040D’s Zeff-assisted detection enhances security by auto-highlighting explosives and narcotics based on atomic numbers, which makes identifying potential threats faster and more accurate. The system’s switchable color modes allow operators to adapt settings for different materials. Therefore, providing clear differentiation for metals, liquids, and hazardous items. This feature, combined with real-time imaging, makes it ideal for complex screening environments like airports, border crossings, and high-security facilities.
Safeagle HP-SE6040D Dual View X-ray Baggage Scanner Specifications
| Feature | Details |
|---|---|
| Tunnel Size | 624 mm (W) x 429 mm (H) |
| Dimensions | 2191 mm (L) x 1385 mm (W) x 1575 mm (H) |
| Conveyor Max Load | 165 kg |
| Belt Speed | 0.23 m/s, bidirectional |
| X-ray Generators | Dual 140 kV |
| Wire Detectability | 40 AWG |
| Resolution | 1.0 mm (horizontal & vertical) |
| Steel Penetration | Typical 36 mm |
| Tube Current | 0.7 mA |
| Cooling | Sealed oil bath with forced air |
| Beam Direction | Diagonally upward |
| Detector Type | L-shaped array |
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Humidity | Up to 95% non-condensing |
| Power Requirements | 220VAC ±10%, 50/60Hz, 10A max |
Key Features
- Dual-View Technology: Scans horizontally and vertically simultaneously, minimizing blind spots and improving accuracy.
- Switchable 4/7-Color Imaging: Allows operators to customize imaging for optimal material differentiation.
- Zeff-Assisted Detection: Automatically highlights potential explosive and narcotic threats for real-time identification.
- Dual-Energy Support: Distinguishes organic from inorganic materials, essential for detecting both metallic and non-metallic threats.
- High-Resolution Imaging: Wire detectability at 40 AWG and 36 mm steel penetration ensures sharp images and high detail visibility.
- Split-Screen and Full-Screen Modes: Customizable screen options provide flexibility in viewing configurations.
Applications
- Airports and Transportation Hubs: Ensures thorough baggage checks with real-time imaging and dual-view scanning.
- Border Security and Customs: Provides accurate detection of concealed objects and substances.
- Shopping Centers and Public Venues: Helps maintain high security in busy environments with rapid threat identification.
- Hotels and Sensitive Facilities: Supports comprehensive inspections with customizable color imaging for optimized security.
Price of Safeagle HP-SE6040D Dual View X-ray Baggage Scanner in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
