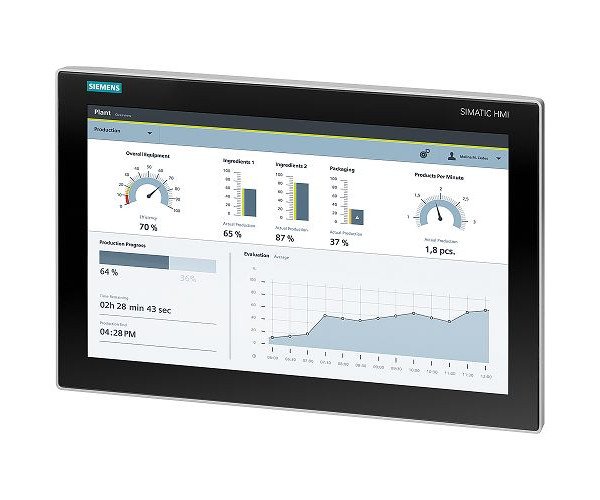

Elevate your industrial automation with the SIMATIC IPC277G Panel PC—a state-of-the-art industrial computing device. It is designed to optimize performance and enhance operational efficiency in demanding environments. Built by Siemens, this advanced panel PC combines robust hardware with seamless software integration, making it an ideal choice for a wide range of industrial applications.
SIMATIC IPC277G Panel PC Specifications
Specification | Details |
---|---|
Product Type Designation | IPC277G |
Installation Type/Mounting | For wall mounting or rack mounting; prepared for 19″ mounting bracket |
Design | Panel PC, 19″, 4U |
Supply Voltage | 100/240 V AC (autorange), 50/60 Hz; optional redundant 100/240 V AC |
Line Frequency | 50 Hz and 60 Hz |
Mains Buffering | 20 ms |
Processor Type | Intel Core i5-7500T (4C/4T, 2.7 GHz, 6 MB Cache, Turbo Boost 2.0); Intel Core i7-7700T (4C/8T, 2.9 GHz, 8 MB Cache, Turbo Boost 2.0) |
Chipset | Intel Q170 |
Graphics Controller | Onboard Intel HD Graphics 630; NVIDIA GeForce GT 1030 (optional) |
Drives | 1x 256 GB M.2 NVMe SSD, 1x 512 GB 2.5″ SATA SSD, 2x 256 GB 2.5″ SATA SSD (RAID1) |
Memory | 4 GB to 32 GB DDR4 2133 SDRAM DIMM, ECC optional |
Max. Memory Capacity | 32 GB |
Slots | 1x PCI Express (x16) (16 lanes), 1x PCI Express (x4) (4 lanes) |
Interfaces | 1x COM1 (RS232), 2x USB 3.0, 2x USB 2.0, 1x DisplayPort, 1x HDMI, 2x Gigabit Ethernet (RJ45), 1x Audio (mic in, line in, line out) |
Industrial Ethernet | 2x Gigabit Ethernet (IE/PN), RJ45 |
Monitoring Functions | Temperature monitoring, Watchdog, Status LEDs (Power, HDD, Ethernet, Watchdog, Temp, Fan) |
EMC | Interference immunity and emission as per IEC 61000-4 standards, EN 61000-6-3, EN 61000-6-4, FCC Class A |
Degree and Class of Protection | IP65 (front), IP20 (rear) |
Standards, Approvals, Certificates | CE, CSA, UL, cULus, RCM, KC, EAC |
Dust Protection | G2 EN 779, 99% of particles > 0.5 mm filtered |
Ambient Temperature During Operation | Min: 0 °C, Max: 50 °C |
Ambient Temperature During Storage/Transportation | Min: -20 °C, Max: 60 °C |
Relative Humidity | Operation: 5 % to 85 % at 30 °C (no condensation); Storage/Transport: 5 % to 95 % at 25/55 °C (no condensation) |
Vibrations | 10 cycles, 10 Hz to 58 Hz: 0.0375 mm; 58 Hz to 500 Hz: 4.9 m/s² (0.5 g) |
Shock Testing | 50 m/s² (5 g), 30 ms, 100 shocks per axis |
Operating Systems | Windows 10 IoT Enterprise 2019 LTSC, Windows 10 Enterprise 2016 LTSB, Windows Server 2016/2019 (64-bit) |
Dimensions | Width: 430 mm, Height: 177 mm (4U), Depth: 444 mm |
Weight | Approx. 7 kg |
Key Features of SIMATIC IPC277G
- High-Performance Processing: The IPC277G rapidly processes data and reliably performs even in the most challenging industrial settings.
- High-Resolution Display: The 15.6-inch widescreen display offers exceptional clarity and precision. The SIMATIC IPC277G features a touch-sensitive interface with multi-touch functionality for intuitive operation.
- Durable Construction: The IPC277G withstands harsh environments with its IP65-rated front panel and rugged, fanless design.
- Versatile Connectivity: The panel PC provides flexible connectivity options with a range of ports, including USB, Ethernet, and serial interfaces, enabling seamless integration with existing systems and devices.
- Enhanced User Experience: The integrated industrial-grade touchscreen simplifies control processes. This provides a user-friendly interface, reducing the need for additional peripherals.
- Scalable Expansion: The modular design options allow you to easily upgrade and expand the IPC277G to meet evolving operational needs and technological advancements.
Benefits of SIMATIC IPC277G Panel PC
- Increased Efficiency: The high-performance processing power and intuitive touchscreen interface streamline operations, reducing downtime and increasing overall productivity.
- Durability and Reliability: Engineered for resilience in harsh conditions. The IPC277G ensures long-term operation with minimal maintenance, even in extreme temperatures and challenging environments.
- Seamless Integration: Its versatile connectivity options facilitate effortless integration with existing systems, enabling smooth communication and data exchange.
- Cost-Effective Solution: The IPC277G’s durability and reliability translate to lower total cost of ownership. This minimizes the need for frequent replacements and repairs.
Price of SIMATIC IPC277G Panel PC in Bangladesh ?
When it comes to acquiring advanced computing solutions, choosing the right supplier is just as important as selecting the right equipment. As an authorized dealer of Siemens products, Crystal Vision Solutions ensures that you receive only genuine, high-quality industrial computing devices, directly sourced from the manufacturer. This guarantees optimal performance, longevity, and the peace of mind that comes with knowing your equipment is authentic.
With years of industry experience, Crystal Vision Solutions possesses deep expertise in industrial computing. Our team of professionals provides tailored advice and technical support. Whether you’re upgrading or building new infrastructure, we guide you to achieve the best results.
Moreover, Crystal Vision Solutions is known for offering competitive pricing. They understand the importance of cost-effectiveness in business operations. This is why they strive to provide value through affordable pricing, discounts, and bundled deals that enhance your purchasing power.
Customer satisfaction is a top priority at Crystal Vision Solutions. Our commitment to delivering excellent after-sales service and comprehensive warranty coverage means that you can rely on us long after your purchase is complete. Should you encounter any issues, our responsive support team is there to assist, ensuring your network runs smoothly.
For businesses seeking to integrate cutting-edge Siemens technology into their operations, Crystal Vision Solutions offers not just products, but a partnership built on trust, expertise, and a commitment to your success.
