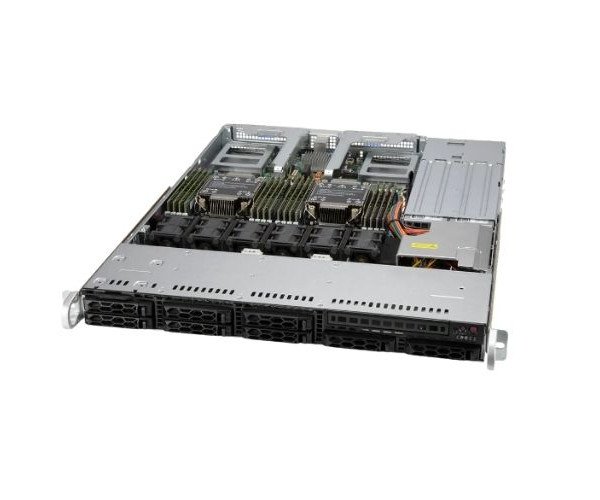

Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Server
- Brand: Supermicro
- Model: CloudDC SuperServer SYS-120C-TR
- Form Factor: 1U Rackmount
- Processor Support: Dual 3rd Gen Intel Xeon Scalable processors (Socket P+)
- Chipset: Intel C621A
- Drive Bays: 12x 2.5″ hot-swap SATA/SAS/NVMe hybrid drive bays
অস্থিতিশীল বাজার পরিস্থিতির কারনে স্টক ও দাম সম্পর্কে নিশ্চিত হয়ে অর্ডার করুনঃ 01737-199650
About the Supermicro CloudDC Super-Server SYS-120C-TR 1U Rackmount Server
The Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Server is a high-performance, space-saving server designed for cloud computing, enterprise IT, and data centers. It delivers powerful processing, fast memory, and flexible storage for demanding business applications and virtual environments.
Specification
| Feature | Details |
|---|---|
| Brand | Supermicro |
| Model | CloudDC SuperServer SYS-120C-TR |
| Form Factor | 1U Rackmount |
| Processor Support | Dual 3rd Gen Intel Xeon Scalable processors (Socket P+) |
| Memory | 16 DIMM slots, up to 4TB DDR4 ECC Registered 3200MHz |
| Chipset | Intel C621A |
| Drive Bays | 12x 2.5″ hot-swap SATA/SAS/NVMe hybrid drive bays |
| Expansion Slots | 2 PCIe 4.0 x16 (FHFL), 1 PCIe 4.0 x8 (LP) |
| Networking | Dual 10GbE RJ45 (Intel X550) |
| Storage Controller | Broadcom 3108 SAS3 (optional) |
| Management | IPMI 2.0 with KVM and dedicated LAN |
| Power Supply | Dual 1000W Platinum Level Redundant Power Supplies |
| USB Ports | 2x USB 3.0 (Front), 2x USB 3.0 (Rear) |
| Video | ASPEED AST2600 BMC with VGA output |
| Dimensions (WxHxD) | 437mm x 43mm x 749mm |
| Cooling | 4 heavy-duty cooling fans with optimized airflow |
Description
Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Server in BD
The Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Servers is built to meet the demands of contemporary data centers and cloud businesses. It offers high-performance power along with energy efficiency and flexibility. The server is perfect for enterprises looking to maximize computing power in an extremely slim 1U design.
User Experience
The users of the Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Server report smooth, trouble-free performance even under heavy loads. Its dual Intel Xeon support makes virtualization, big data, and analytics easy. The server is rock-solid under 24/7 use and has easy access to internal components for maintenance. It’s easy to install, and remote management through IPMI spares IT staff time. The compact size conserves rack space, and the hot-swap bays make storage upgrades easy. It’s ideal for small businesses as well as large cloud infrastructures.
Why Choose the Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Server?
Choosing the Supermicro SuperServer SYS-120C-TR 1U Rackmount Server is the smart decision for businesses that need reliability, performance, and flexibility in a compact form. Powered by dual Intel Xeon processors and up to 4TB of ECC memory, it delivers the performance and reliability your IT needs. Its 12x hot-swap drive bays offer flexible storage for SSDs or HDDs. Supermicro CloudDC Super-Server SYS-120C-TR 1U Rackmount Server also has remote management at a higher level, thus can be accessed and managed easily from anywhere. No matter if one requires a cloud, enterprise, or edge computing server, this one does excel.
The Supermicro SuperServer SYS-120C-TR 1U Rackmount Server also outshines others in forward-thinking expansion. Support for PCIe 4.0 enables you to add accelerators, GPUs, or high-speed network cards as needed. The efficient airflow and dual redundant power supplies guarantee your mission-critical applications are always up and running. Definitely, the Supermicro CloudDC Super Server SYS-120C-TR 1U Rackmount Server is made for long-term use in the professional market.
Installation Steps
- Unpack the Server: Carefully remove the server and all accessories from the box.
- Install into Rack: Install the 1U server in a standard 19-inch server rack using the rail kit supplied.
- Connect Storage Drives: Insert the 2.5″ drives into the hot-swap bays if required.
- Add Memory and CPUs: Insert Intel Xeon CPUs and RAM into the appropriate slots.
- Connect Network & Power: Cable power cables and connect to network switches through 10GbE ports.
- Power On: Switch on the server and check for proper functioning of all fans and LEDs.
- Access Management Interface: Access remote control and BIOS/firmware setup using IPMI.
- Install OS: Boot from USB or PXE boot to load your operating system (Linux, Windows Server, etc.).
- Configure System: Setup RAID, network settings, and install required programs.
- Deploy to Production: After testing, place the server in active production.
What is the Price of the Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Server in Bangladesh?
The latest price of Supermicro CloudDC SuperServer SYS-120C-TR 1U Rackmount Server in Bangladesh depends on quantity. Crystal Vision Solutions ensure This product has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
