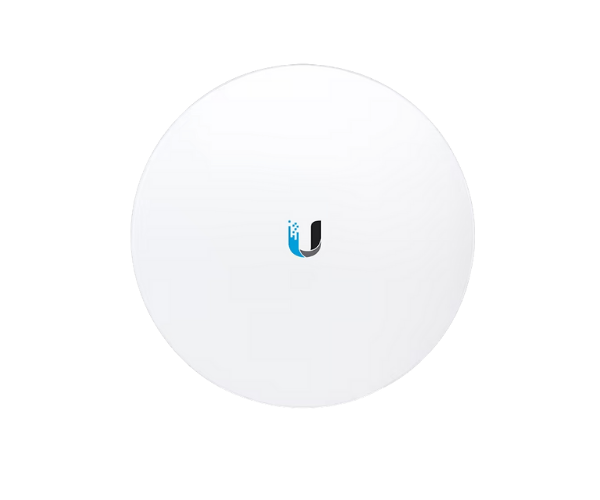

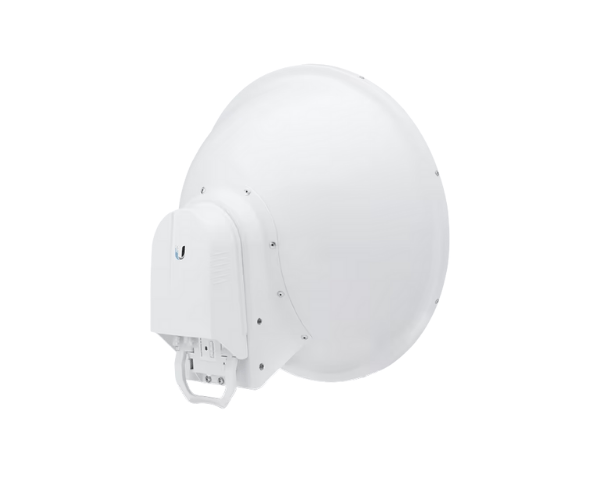

Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna
- Brand: Ubiquiti
- Model: AF-5G30-S45
- Frequency: 5.1 – 5.9 GHz
- Gain: 30 dBi
- Polarization: Dual Slant ±45°
অস্থিতিশীল বাজার পরিস্থিতির কারনে স্টক ও দাম সম্পর্কে নিশ্চিত হয়ে অর্ডার করুনঃ 01737-199650
About the Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna
The Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna is a high gain, high precision point-to-point wireless wireless backhaul connection antenna for long distance. With 30dBi gain over the frequency range 5GHz, it has better quality signal, less interference, and stable performance under use in highly stressed wireless wireless backhaul networks.
Specification
| Feature | Details |
|---|---|
| Brand | Ubiquiti |
| Model | AF-5G30-S45 |
| Frequency | 5.1 – 5.9 GHz |
| Gain | 30 dBi |
| Polarization | Dual Slant ±45° |
| Antenna Type | Parabolic Dish |
| Beamwidth | 5.8° (Horizontal), 5.8° (Vertical) |
| Max. VSWR | 1.5:1 |
| F/B Ratio | 35 dB |
| Connector Type | RP-SMA |
| Mounting | Universal Pole Mount (Ø 38 – 64 mm / 1.5 – 2.5 in poles) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 340 N @ 200 km/h (76 lbf @ 125 mph) |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | 650 x 650 x 386 mm (25.59 x 25.59 x 15.2 in) |
| Weight | With Mount: 7.4 kg (16.3 lb) |
Description
Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna in BD
In Bangladesh, network professionals and ISPs utilize the Ubiquiti AF-5G30-S45 5 GHz 30dBi Dual Slant Dish Antenna in creating secure long-distance point-to-point wireless connections. It is built with rugged material to be utilized in both rural and urban areas and is found with top IT hardware distributors of the nation.
User Experience of the Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna
The Ubiquiti AF-5G30-S45 5 GHz 30dBi Dual Slant Dish Antenna is the top choice of users as it has the potential to deliver superior long-range connectivity with minimal interference. Installers love the fact that alignment hardware is included, easy to install, and love it for delivering accurate installation and consistent signal quality even on the toughest wireless links.
Benefits of Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna
- Delivers high-gain, long-range signal transmission
- Minimizes interference with dual slant polarization and narrow beamwidth
- Weather-resistant tough housing withstands outdoor harsh environments
- Stable links for demanding high-bandwidth use cases
- Easy, precise installation with included mounting kit
- Simple deployment with integrated Ubiquiti airFiber radios
Why Choose This Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna?
Go for the Ubiquiti AF-5G30-S45 5 GHz 30dBi Dual Slant Dish Antenna for high-end performance, stable wireless connections over longer distances. Design-optimized, high-gain, ruggedness make it a professional’s go-to option for networks demanding performance and reliability.
Key Features
- 30 dBi gain for extending wireless range to the furthest
- 5.1 – 5.9 GHz band support for allowing interference-free signal operation
- Dual Slant ±45° polarization for reducing interference
- 5.8° beamwidth increases concentration and signal definition
- Easy, rugged mount for fast installation
- Weather-resistant design with high wind and harsh conditions tolerance
- Seamless integration with Ubiquiti airFiber radios
Where Ubiquiti AF-5G30-S45 5 GHz 30dBi Dual Slant Dish Antenna Can Be Used?
You can safely install the Ubiquiti AF-5G30-S45 5 GHz 30dBi Dual Slant Dish Antenna in:
- Long-distance point-to-point ISP links
- Wireless backhaul in rural or remote areas
- Enterprise or campus multi-building environments
- Remote CCTV or surveillance transmission
- Industrial network connections in hostile environments
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the Ubiquiti AF-5G30-S45 5 GHz 30dBi Dual Slant Dish Antenna at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antenna in Bangladesh?
The latest price of the Ubiquiti AF-5G30-S45 5GHz 30dBi Dual Slant Dish Antennat in BD varies by quantity. Crystal Vision Solution offers the best market price, 100% original products, and top-notch services with excellent customer support. Contact us for the latest price and more information.
