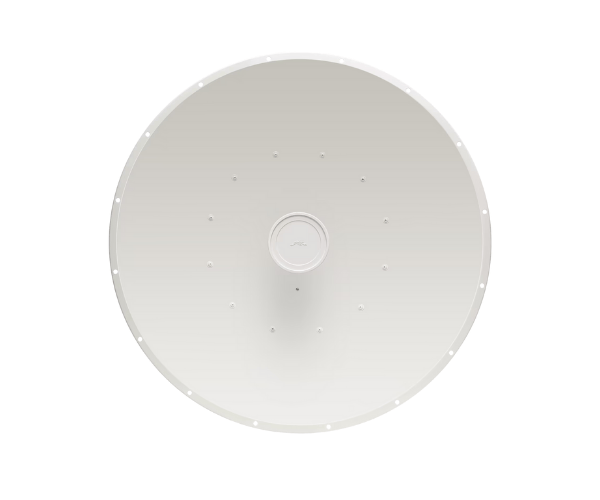

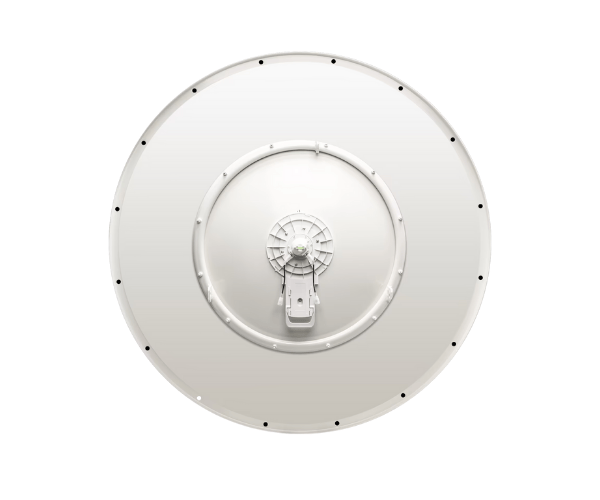

About the Ubiquiti AF-5G34-S45 5GHz 34dBi Dual Slant Dish Antenna
The Ubiquiti AF-5G34-S45 5GHz 34dBi Dual Slant Dish Antenna is a 34dB, long-distance, high-gain, point-to-point wireless bridging antenna. Constructed with heavy-duty materials, improved frequency support, and amplified gain, it’s intended for outdoor applications where interference-free, stable signals are of extreme significance. Suitable for ISP and business applications.
Specification
Feature | Details |
---|---|
Brand | Ubiquiti |
Model | AF-5G34-S45 |
Frequency | 5.1 – 5.8 GHz |
Gain | 34 dBi |
Polarization | Dual Linear |
Max. VSWR | 1.4:1 |
F/B Ratio | 42 dB |
Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57 in) |
Weight (with mount) | 13.5 kg (29.76 lb) |
Wind Survivability | 200 km/h (125 mph) |
Wind Loading | 1,779 N @ 200 km/h (400 lb @ 125 mph) |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, airFiber Bracket & RF Jumpers Included |
Description
Ubiquiti AF-5G34-S45 5GHz 34dBi Dual Slant Dish Antenna in BD
The Ubiquiti AF-5G34-S45 5GHz 34dBi Dual Slant Dish Antenna is available in Bangladesh from renowned IT hardware distributors. Ubiquiti AF-5G34-S45 5GHz 34dBi Dual Slant Dish Antenna can be used in local ISPs, enterprise networks, and rural surveillance networks where heavy-duty long-range wireless connectivity is needed.
User Experience of Ubiquiti AF-5G34-S45 5 GHz 34dBi Dual Slant Dish Antenna
Rural and urban customers adore the consistency of the Ubiquiti AF-5G34-S45 5 GHz 34dBi Dual Slant Dish Antenna. It boasts excellent performance during adverse weather, improved signal penetration, and high noise rejection. It’s easy to install, especially with Ubiquiti airFiber radios.
Benefits of This Ubiquiti AF-5G34-S45 5 GHz 34dBi Dual Slant Dish Antenna
- Quick wireless data transfer over a long distance
- Improved quality interference rejection and signal quality
- Constructed to resist severe outdoor conditions
- Easy installation with provided mounting hardware
- Mission-critical performance reliability
Why Purchase This Ubiquiti AF-5G34-S45 5 GHz 34dBi Dual Slant Dish Antenna?
The Ubiquiti AF-5G34-S45 5 GHz 34dBi Dual Slant Dish Antenna represents the ultimate in range, line, and reliability. High gain, wind-resistant, and easy to pair with airFiber radios, it is the ideal choice for heavy point-to-point wireless link mounting.
Key Features
- 34 dBi High-Gain Antenna: Offers aggressive long-range wireless operation.
- Frequency Support: Offered in the 5.1 – 5.8 GHz and supportive of a wide base of wireless solutions.
- Dual Linear Polarization: Offers cleaner signals and less extraneous interference.
- Weather Resistance: Built to be highly resistant to 200 km/h winds and heavy loading and best suited for extreme outdoor application.
- Precision Engineering: 42 dB front-to-back and 1.4:1 VSWR provides class leading signal quality and directional focus.
- Universal Mounting Capability: Easy to mount with pole mount, radio bracket, and RF jumpers for easy installation.
- ETSI Standard Compliant: EN 302 326 DN2 compliant, European wireless point-to-point solution standards.
- Trusted Brand: Made by Ubiquiti, the go-to solution for high-speed wireless network solutions.
Where is Ubiquiti AF-5G34-S45 5 GHz 34dBi Dual Slant Dish Antenna Typically Used?
- Rural point-to-point internet connectivity
- ISP wireless backhaul
- Outdoor enterprise networks
- Remote CCTV and surveillance networks
- Building-to-building or cross-campus connectivity
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the Ubiquiti AF-5G34-S45 5 GHz 34dBi Dual Slant Dish Antenna at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the Ubiquiti AF-5G34-S45 5GHz 34dBi Dual Slant Dish Antenna in Bangladesh?
The latest price of the Ubiquiti AF-5G34-S45 5GHz 34dBi Dual Slant Dish Antenna in BD varies by quantity. Crystal Vision Solution offers the best market price, 100% original products, and top-notch services with excellent customer support. Contact us for the latest price and more information.
