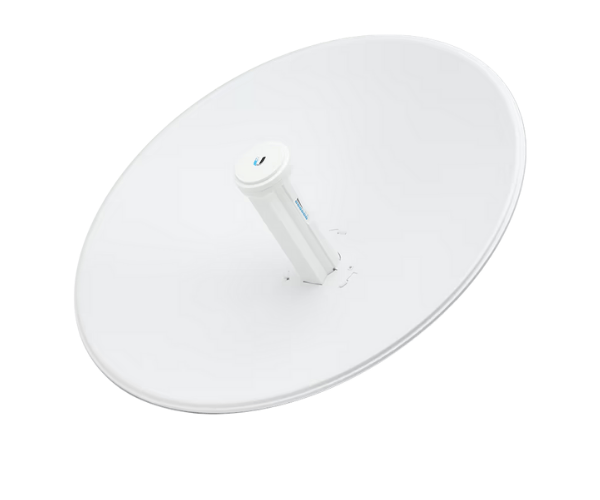

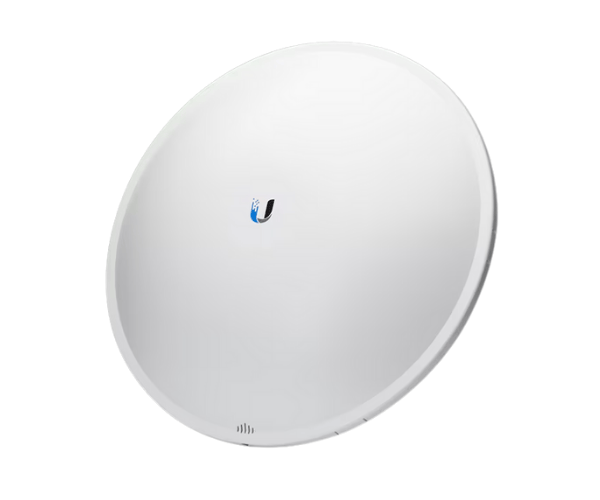

About the Ubiquiti PBE-5AC-620 5GHz airMAX PowerBeam AC Bridge
The Ubiquiti PBE-5AC-620 5GHz airMAX PowerBeam AC Bridge is a long-range outdoor point-to-point and point-to-multipoint wireless technology. It comes equipped with an incredibly high-power 29 dBi antenna and airMAX AC technology, offering rock-solid, high-speed links up to far-reaching distances, perfect for rural broadband, CCTV, and enterprise networks.
Specification
Feature | Details |
---|---|
Brand | Ubiquiti |
Model | PBE-5AC-620 |
Frequency | 5GHz |
Networking Interface | (1) Gigabit Ethernet (RJ45) |
Antenna Gain | 29 dBi |
Polarization | Dual Linear |
Channel Sizes (PtP) | 10/20/30/40/50/60/80 MHz |
Channel Sizes (PtMP) | 10/20/30/40 MHz |
Power Method | Passive PoE (4, 5+; 7, 8 return) |
Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
Max. Power Consumption | 8.5W |
Enclosure Material | UV-stabilized plastic |
Mounting | Pole Mount Kit (Included) |
Dimensions | 620 x 620 x 386 mm (without radome) |
Weight | 3.91 kg (8.62 lb) (without radome) |
Operating Temperature | -40°C to 70°C |
Operating Humidity | 5% to 95% non-condensing |
ESD/EMP Protection | ±24 kV Air/Contact |
Certification | CE, FCC, IC, RoHS |
LED Indicators | Power, LAN, 4x WLAN with software-adjustable RSSI |
Description
Ubiquiti PBE-5AC-620 5GHz airMAX PowerBeam AC Bridge in BD
The Ubiquiti PBE-5AC-620 5 GHz airMAX PowerBeam AC Bridge is a highly prevalent wireless bridge device in Bangladesh. It is employed by internet service providers, institutions, and security firms to connect remote areas where cable or fiber infrastructure is unavailable. It is readily available for purchase from certified IT resellers in Dhaka, Chattogram, and other major cities.
User Experience of the Ubiquiti PBE-5AC-620 5GHz airMAX PowerBeam AC Bridge
Customers review Ubiquiti PBE-5AC-620 5 GHz airMAX PowerBeam AC Bridge as a high-performing device. Customers enjoy good speed up to 10+ kilometers. Installation is extremely easy, and signal is extremely strong regardless of weather. Its weatherproof housing is extremely suitable for Bangladesh climate. Customers review it as extremely cost-effective to use for long distance.
Benefit of This Ubiquiti PBE-5AC-620 5 GHz airMAX PowerBeam AC Bridge
- Must be cabling and trenching cost low
- Connects remote places to broadband Internet
- Offers heavy signal stability in terms of distance
- Supports various frequency channels to facilitate installment
- Operates in harsh exterior weather conditions well
- Ideal to apply for wireless CCTV or distant office networking
- Convenient setup and maintenance
Why Use This Ubiquiti PBE-5AC-620 5GHz airMAX PowerBeam AC Bridge?
The Ubiquiti PBE-5AC-620 5 GHz airMAX PowerBeam AC Bridge is ideal when you need high-speed internet bridging over long ranges. It has a 29 dBi antenna, optimized AC protocol, and weather-hardened outdoor casing to ensure secure connection over very long distances. Use this model for secure, high-speed, and reliable performance in hostile environments.
Key Features
- High-Gain 29 dBi Antenna: Provides extremely high signal for wireless bridging ultra-long distance, i.e., links greater than 10+ km.
- airMAX AC Technology: Provides high-data-rate, low-latency connectivity via airMAX TDMA protocol with noise filtering and best performance.
- Adaptive Channel Widths: Up to 80 MHz in PtP mode with less interference to facilitate high-speed data transfer.
- Weatherproof Outdoor Installation: Built with UV-stabilized plastic and wind, rain, UV, and vibration tested for durability over the long term in performance.
- Gigabit Ethernet Support: Offers fast wired connections and easy integration into your network devices.
- LED Status Indicator Lights: Quick installation and alignment with lights indicating feedback.
- Passive PoE Support: Easy delivery of power with minimal need for multiple cables to install.
- Easy Mounting Kit: Pole-mount kit for easy and secure mounting in any outdoor environment.
- Wide Voltage Range: Operates on 20–27V DC for universal power supply.
- Resists Tough Climates: Operates on temperatures of -40°C to 70°C and as much as 95% humidity.
Where Can Ubiquiti PBE-5AC-620 5 GHz airMAX PowerBeam AC Bridge Be Used?
- Remote villages and rural towns with no cable lines
- Big-sized agricultural farms or fields for internet or CCTV
- Passing over two office complexes in a faraway region
- Subscriber connection Internet Service Providers
- Warehouse and factory complexes, and construction sites
- Festival and exhibition fittings, campuses, and seaports
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the Ubiquiti PBE-5AC-620 5 GHz airMAX PowerBeam AC Bridge at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the Ubiquiti PBE-5AC-620 5GHz airMAX PowerBeam AC Bridge in Bangladesh?
The latest price of the Ubiquiti PBE-5AC-620 5GHz airMAX PowerBeam AC Bridge in BD varies by quantity. Crystal Vision Solution offers the best market price, 100% original products, and top-notch services with excellent customer support. Contact us for the latest price and more information.
