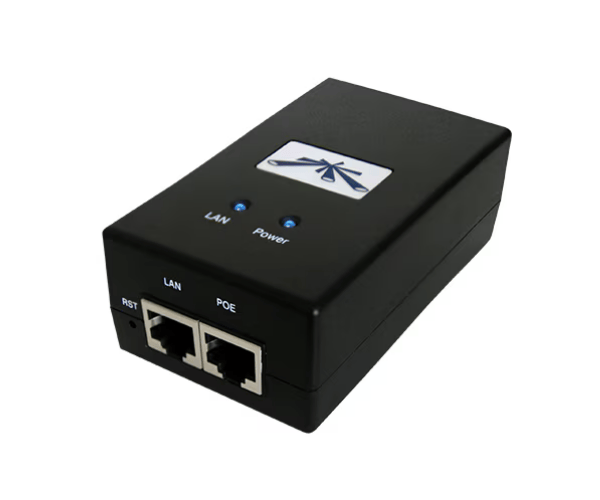

Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter
- Brand: Ubiquiti
- Model: POE-24-24W-WH
- Output Voltage: 24V DC @ 1A
- Output Power: 24W
- Gigabit LAN Port: No
অস্থিতিশীল বাজার পরিস্থিতির কারনে স্টক ও দাম সম্পর্কে নিশ্চিত হয়ে অর্ডার করুনঃ 01737-199650
About the Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter
The Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter is an industrial-grade Ubiquiti device power supply that is 24V passive PoE compatible. It’s built to supply and withstand with power efficiency, small footprint, and internal protection technology. Great to supply power to airMAX® products, UniFi® access points, and other compatible devices.
Specification
| Feature | Details |
|---|---|
| Brand | Ubiquiti |
| Model | POE-24-24W-WH |
| Output Voltage | 24V DC @ 1A |
| Output Power | 24W |
| Gigabit LAN Port | No |
| LAN Activity Indicator | No |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 0.3A @ 120V AC, 0.2A @ 240V AC |
| Inrush Current | <40A @ 120V AC, <70A @ 230V AC |
| Efficiency | 80%+ |
| Output Ripple | 1% Max |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (–) |
| 4-Pair Powering | Not Supported |
| Storage Temperature | -30°C to 70°C |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 35% to 95% (non-condensing) |
| AC Connector | IEC-320 C6 |
| Data IN / PoE Port | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V (data), 60V (power) |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
| Weight | 72.1g (2.5 oz) |
Description
Ubiquiti POE-24-24W-WH 24 V 24W PoE Adapter in Bangladesh
The Ubiquiti POE-24-24W-WH 24 V 24W PoE Adapter is widely available in Bangladesh through certified networking and IT hardware suppliers. Ideal for commercial, residential, and ISP-grade installations, it is trusted for powering Ubiquiti’s airMAX® and UniFi® series in BD.
User Experience of the Ubiquiti POE-24-24W-WH 24 V 24W PoE Adapter
Users commend easy installation and trouble-free operation of the The Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter. They highly recommend it for performance, reliability, and safety. Network installers appreciate trouble-free compatibility with most Ubiquiti devices.
Advantages of This Ubiquiti POE-24-24W-WH 24 V 24W PoE Adapter
- Powerful Supply: Supplies 24V at 1A to passive PoE devices.
- Trouble-Free Operation: Surge, clamping, and overloading protection integrated into the device for a long lifespan of the device.
- Easy Installation: Plug-and-play – no installation needed.
- Compact Size: Ultracompact and weight; suitable for any use.
- Energy Efficiency: More than 80% efficient with low ripple and regulated output current.
- Cost-Saving: Economical power solution for all the supported devices.
Why Buy This Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter?
The Ubiquiti POE-24-24W-WH is ideal for anyone who needs a professional, secure, and dependable way of powering his or her Ubiquiti devices. Owing to its excellent protection attributes, plug-and-play ease, and high output power reliability, it’s still the choice of a pro.
Key Features
- 24V DC Output @ 1A – Ideal compatibility with Ubiquiti passive PoE equipment.
- 24W Power Capacity – Power several units without wastage.
- Compact Form Factor – Easy to install in limited spaces.
- High Efficiency – 80%+ efficient, reduced power loss.
- Surge & Overcurrent Protection – Guards your devices from voltage spikes.
- Shielded RJ45 Port – Solid and secure delivery of PoE.
- CE, FCC, IC, UL Certified – Safe according to international standards.
- NDAA Compliant – Approved for use by the government.
Where Can Ubiquiti POE-24-24W-WH 24 V 24W PoE Adapter Be Used?
The Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter is used in:
- Wireless Access Points (UniFi, airMAX)
- Outdoor CPE Devices
- VoIP Phones
- IP Cameras (24V PoE enabled)
- Small Office / Home Office Networks
- Retail & Hospitality Network Installations
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the Ubiquiti POE-24-24W-WH 24 V 24W PoE Adapter at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter in Bangladesh?
The latest price of the Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter in BD varies by quantity. Crystal Vision Solution offers the best market price, 100% original products, and top-notch services with excellent customer support. Contact us for the latest price and more information.
