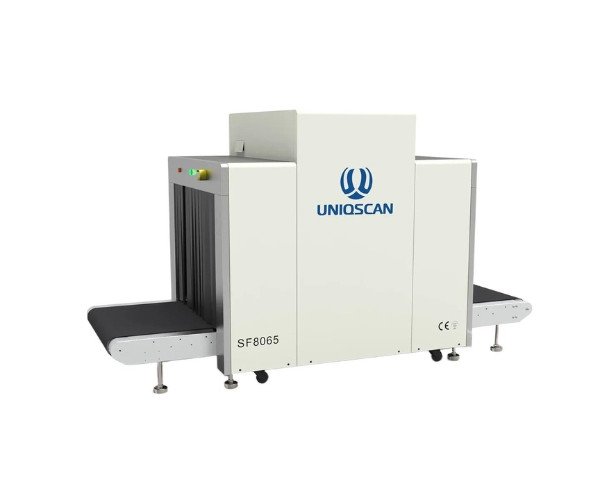

The Uniqscan SF8065 X-ray Baggage Scanner is a cutting-edge security solution designed to enhance the safety of public spaces such as airports, train stations, and government buildings. Equipped with a spacious 800mm (W) x 650mm (H) tunnel, this high-performance scanner efficiently screens a wide range of baggage sizes, ensuring thorough and reliable security checks.
This model offers advanced features such as multi-energy scanning, drug and explosive powder detection, and super image enhancement. Therefore, providing exceptional scanning clarity and accuracy. Operators benefit from the 19-inch high-resolution color LCD display that presents detailed, color-coded images, thus making it easy to identify potential threats. Whether scanning in high-traffic environments or under challenging lighting conditions, the SF8065 ensures precision and efficiency in detecting dangerous objects such as weapons, explosives, and contraband.
With its advanced components and safety features, including automatic radiation control and self-diagnosis capabilities, the SF8065 is designed to meet international safety and security standards. Its user-friendly interface makes it simple for operators to manage the screening process, while the brightening and dimming functionality enhances image visibility for optimal analysis.
Uniqscan SF8065 X-ray Baggage Scanner Specifications
Specification | Details |
---|---|
Tunnel Size | 800 (W) × 650 (H) mm |
Conveyor Speed | 0.22 m/s |
Conveyor Max Load | 200 kg |
Single Inspection Dosage | < 1.15 μGy |
Leakage Radiation | < 0.14 μGy/h |
Wire Resolution | 40 AWG |
Steel Penetration | 36 mm |
Film Safety | ISO 1600 |
X-ray Generator Orientation | Downward |
Tube Current | 0.4 ~ 1.2 MA (adjustable) |
Anode Voltage | 100 ~ 160 KV |
X-ray Divergence Angle | 80 ° |
Generator Cooling | Sealed oil bath with forced air/100% operation |
X-ray Sensor | L-shaped array detector, 24-bit |
Network Interface | Capable of connecting to LAN and supports multi-terminal checks |
Safety Ray Control | Automatic control to prevent error, one-key shutdown |
Eagle Eye | Expedient magnification for detailed viewing |
Self-Diagnosis Function | Automatic alerts for prompt maintenance |
Features and Benefits
- 19-Inch High-Resolution Color Display: Provides clear, detailed, color-coded images to differentiate between organic, inorganic, and mixed materials.
- Drug and Explosive Powder Detection: Detects suspicious substances with advanced image processing, improving security protocols.
- Super Image Enhancement: Increases image detail, allowing operators to zoom in for precise inspections.
- Multi-Energy Scanning: Offers flexibility between high-energy and low-energy modes for more efficient screening.
- Adjustable Brightness Control: Enhances visibility in different lighting environments, ensuring accurate image analysis.
- Automatic Safety Features: Includes radiation control and one-key shutdown for safe and secure operations.
Product Applications
- Airports and Train Stations: Provides high-speed, accurate scanning to maintain security in high-traffic areas.
- Government Facilities: Ensures thorough and efficient screening of sensitive areas.
- Corporate Buildings: Enhances security with advanced scanning technology for visitors and employees.
- Public Venues: Ensures safety during large events by detecting potential threats without the need for physical searches.
Price of Uniqscan SF8065 X-ray Baggage Scanner in Bangladesh
Buy the Uniqscan SF5030A X-Ray Baggage Scanner for its advanced security features, high-resolution imaging, and efficient threat detection. Designed for airports, offices, and public venues, this scanner ensures the safe and reliable screening of luggage and packages. When you purchase from Crystal Vision Solutions, you receive genuine Uniqscan products, competitive pricing, and outstanding customer support. With fast delivery and expert guidance, Crystal Vision Solutions guarantees a hassle-free buying experience for all your security needs.
