| Specification | Details |
|---|---|
| Detector Type | Conventional Smoke & Heat Detector |
| Compatibility | Works with all Fyreye bases |
| Standards | Meets EN54 standards |
| Locking Mechanism | Can be locked to the base to prevent unauthorized removal |
| Smoke Detection | Optically dense smoke detection from soft furnishings, PVC, plastic, foam, and similar materials (0.5 to 10μm particles) |
| Heat Detection | Rate of rise heat detection and final threshold temperature of 57°C |
| Operating Voltage | 9-33V DC |
| Quiescent Current | 40μA |
| Alarm Current | 34mA at 24V DC |
| Operating Temperature | -10°C to +50°C |
| Maximum Humidity | 95% RH non-condensing |
| Coverage Area | 50m² |
| IP Rating | IP43 |
| Start-up Time | 10 seconds |

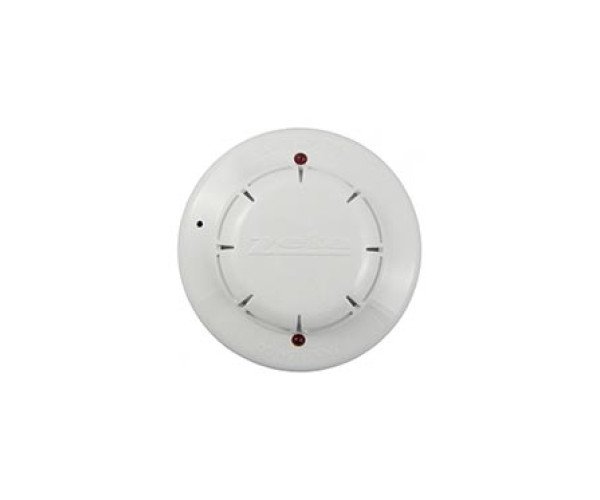

The Zeta MKII-HR Smoke & Heat Detector is a conventional fire alarm detector designed to meet EN54 standards. It combines both smoke and heat detection capabilities to provide comprehensive fire safety. The detector can be securely locked to the base, preventing unauthorized removal. The MKII-HR is particularly effective at detecting optically dense smoke generated by materials such as soft furnishings, PVC, plastic, and foam, which produce small visible particles. It also features a rate of rise heat detector, which quickly senses temperature increases, along with a final threshold temperature of 57°C.
