| Specification | Details |
|---|---|
| Model number | ZXTB/R |
| Color | Red |
| Sound output | 102dB @ 1m |
| Tone patterns | 22 (site selectable) |
| Mounting | Flush or surface |
| Enclosure | UL V0 flame retardant ABS |
| Cable entries | 4 x 20mm (2 top, 2 bottom) |
| Technology | First fix, wire to back box |
| Flashing rate | 0.5Hz |
| Compliance | EN54 Pt 3 Type-A & EN54 Pt 23 |

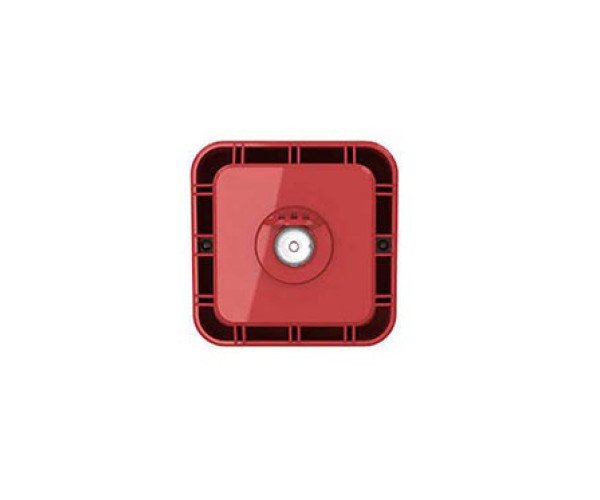

The Zeta ZXTB/R Conventional Sounder With Flasher is a red wall-mounted device that combines a sounder and a beacon. It is specifically designed to meet the European standards for fire alarm sounders, conforming to EN54 Pt 3 Type-A & EN54 Pt 23 regulations. With a sound output of 102dB at a distance of 1 meter, this device ensures that the alarm can be effectively heard even from a significant distance. It offers a selection of 22 tone patterns, enabling the indication of various types of alarms.
Constructed with safety in mind, the Zeta ZXTB/R Sounder With Flasher comes in a UL V0 flame retardant ABS enclosure, providing protection in fire-prone areas. It offers flexibility in terms of installation, as it can be mounted either flush or surface. The device features four 20mm cable entries, with two located at the top and two at the bottom, facilitating the wiring process.
