Dahua ISC-M100100 X-Ray Baggage Scanner

Tunnel Size: 1000 mm x 1000 mm (39.37″ x 39.37″)
X-ray Source: Single-view, 160 kV with oil-cooled sealed bath
Penetration (Steel): 38 mm typical, 36 mm standard
Conveyor Speed: 0.2 m/s
Maximum Belt Load: 200 kg (440.92 lb)
User Interface; Local GUI; Web-based interface

Description
Reviews (0)

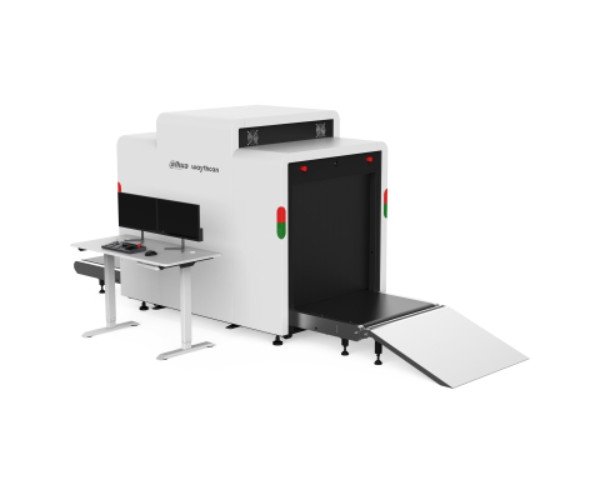

The Dahua ISC-M100100 X-Ray Baggage Scanner is a comprehensive security solution, engineered to detect threats in packages with precision. Using powerful X-ray technology, it generates real-time images of baggage contents, identifying suspicious items such as knives, bottled liquids, and spray cans. The system’s dual-view imaging allows simultaneous display of multiple angles for each item, thus improving the accuracy of detection across a range of applications.

Equipped with AI-driven object recognition, the ISC-M100100 overlays an AI indicator on detected objects, moving in sync with packages on the conveyor belt. A customizable danger level setting categorizes alerts based on risk, and the system’s intelligent link triggers immediate alarms for high-risk items. High-density enhancement and super enhancement image settings further assist operators in identifying concealed threats.

The Dahua ISC-M100100’s intuitive design is accessible via local or web interfaces. Meanwhile, the two built-in cameras monitor both baggage entry and exit points, with options for IP camera integration to provide thorough surveillance. This device also comes with a robust self-diagnosis function, minimizing maintenance time and costs.

Dahua ISC-M100100 X-Ray Baggage Scanner Specifications

Feature	Details
Tunnel Size	1000 mm x 1000 mm (39.37″ x 39.37″)
X-ray Source	Single-view, 160 kV with oil-cooled sealed bath
Penetration (Steel)	38 mm typical, 36 mm standard
Conveyor Speed	0.2 m/s
Maximum Belt Load	200 kg (440.92 lb)
User Interface	Local GUI; Web-based interface
Image Processing	High-density alert, color/black-and-white, image scanning, super enhancement
Recognition Types	23 objects, including firearms, knives, liquids, electronics
Storage Capacity	RAID 0/1/5; stores up to 1 million images
External Monitoring	Two DVI outputs, supports 12-channel IP camera input (4 PoE-enabled)
Dimensions	3,599 mm x 1,300 mm x 1,780 mm (141.70″ x 51.20″ x 70.10″)
Weight	Net: 1100 kg; Gross: 1300 kg
Operating Temperature	0°C to +45°C (32°F to +113°F)
Certifications	CE, FCC, EN compliance, RoHS, WTMD National Standard GB15210-2003

Key Features

Dual-View X-ray Imaging: Enhances visibility of items by providing images from different angles.
AI Detection and Alerts: Recognizes 23 object types and generates instant AI overlays.
Danger Level Customization: Categorizes threats, triggering appropriate alerts.
High-Density Enhancement: Provides additional clarity for high-risk item detection.
Data Storage and Search: RAID-enabled storage for up to 1 million images, searchable by risk level or time.
Seamless Connectivity: Offers dual DVI outputs, with additional IP and PoE camera integration.
User-Friendly Interface: Accessible via both local and web-based GUI, providing flexible control.

Applications

Airports and Public Transit Hubs: Reliable screening of high-traffic baggage.
Border Control and Customs: Accurate scanning of imported goods and personal items.
Government and Corporate Buildings: Provides secure screening in sensitive areas.

Price of Dahua ISC-M100100 X-Ray Baggage Scanner in Bangladesh (BD)

Buy the Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support, Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
