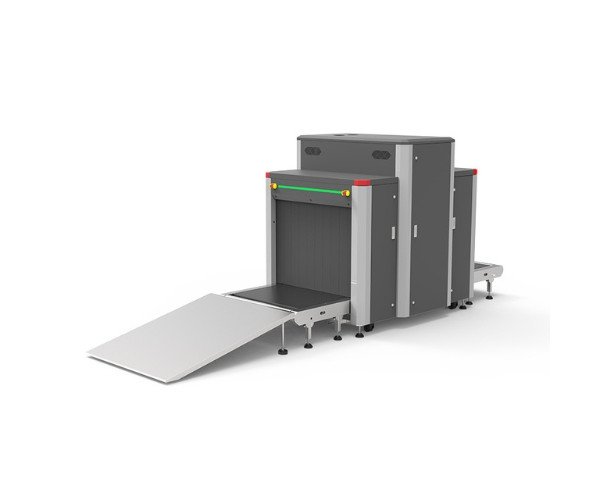

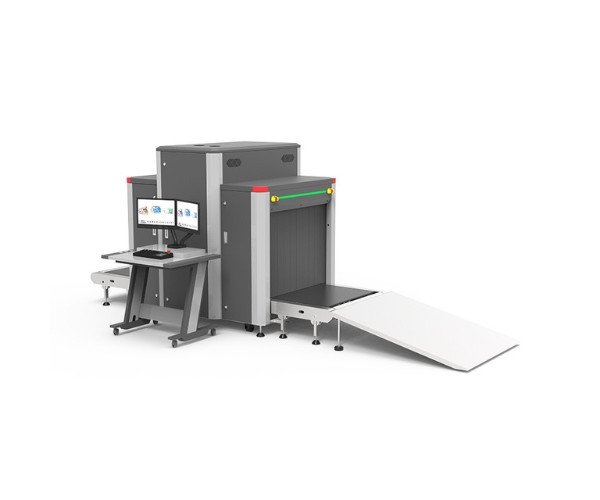

The Safeagle HP-SE10080C Large X-ray Screening System is a cutting-edge X-ray scanner designed for optimal security in large-scale and high-security environments. This robust scanner is perfect for cargo and parcel screening. This includes locations like border checkpoints, airports, logistics centers, and high-security facilities. Equipped with Safeagle’s advanced switchable 4/7-color imaging technology, the HP-SE10080C enables precise material identification by differentiating objects based on atomic number. The result is a clearer and more accurate view, allowing operators to easily distinguish between metals, organic materials, and hazardous items.
With its innovative Zeff-scan function, this X-ray system can highlight potential explosives, narcotics, and hazardous liquids. Dual-energy functionality further enhances detection by distinguishing organic items, like clothing and paper, in orange, and metallic items, like firearms, in blue. This powerful combination of imaging and analysis improves inspection efficiency and accuracy, thus supporting high throughput and minimized inspection time.
Operators can optimize workflow with full-screen and split-screen viewing options. The system’s heavy-duty conveyor can handle up to 250 kg, therefore making it ideal for screening large cargo or oversized parcels. Its rugged construction and reliable performance meet the challenges of high-risk screening in any demanding setting.
Safeagle HP-SE10080C Large X-ray Screening System Specifications
| Feature | Details |
|---|---|
| Tunnel Size | 1006 mm (W) x 804 mm (H) |
| Dimensions | 3146 mm (L) x 1292 mm (W) x 1706 mm (H) |
| Conveyor Max Load | 250 kg |
| Belt Speed | 0.23 m/s, bidirectional |
| X-ray Generator Voltage | 140 kV (optional: 160 kV) |
| Wire Detectability | 40 AWG |
| Spatial Resolution | 1.0 mm horizontal, 1.0 mm vertical |
| Steel Penetration | 36 mm steel, typical |
| Tube Current | 0.7 mA |
| Cooling System | Sealed oil bath with forced air |
| Beam Direction | Diagonally upward |
| Dual-Energy | Yes |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Up to 95% non-condensing |
| Power Requirements | 220 VAC ±10%, 50/60 Hz, 10A max |
Key Features
- 4/7-Color Imaging Technology: Provides enhanced material differentiation with color-coding based on atomic range for efficient threat detection.
- Zeff-Scan Function: Auto-highlights potential threats like explosives and narcotics, aiding in rapid, accurate threat identification.
- Dual-Energy Imaging: Allows clear distinction between organic and inorganic objects, improving detection efficiency.
- High Throughput: Conveyor speed of 0.23 m/s and high load capacity enable fast, efficient cargo screening.
- Customizable Viewing Options: Split and full-screen modes with customizable color modes for detailed viewing.
- Durable Design: Supports up to 250 kg on the conveyor, ideal for large or heavy packages.
Applications
- Airports and Cargo Terminals: Ensuring safe screening of large baggage and cargo.
- High-Security Facilities: Screening at government, military, and high-risk installations.
- Border and Customs: Effective inspection at border control points for enhanced security.
- Logistics and Transport Centers: Efficiently processes large parcels and cargo in shipping hubs.
Price of Safeagle HP-SE6040C X-Ray Baggage Scanner in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
