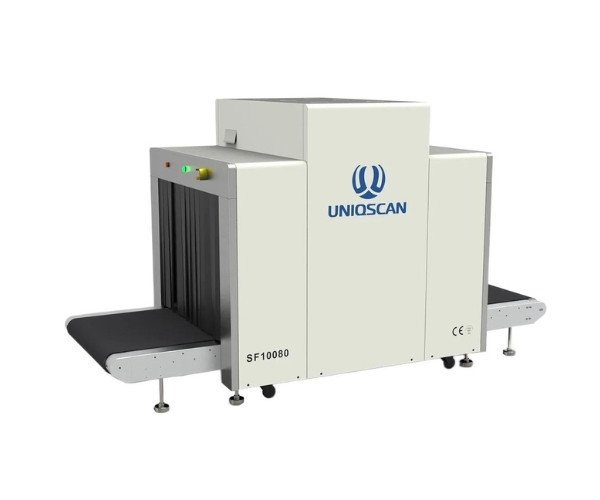

Uniqscan SF10080 X-ray Baggage Scanner
- Display: High-resolution 19-inch color LCD display;
- Color quality: 24-Bit real colors based on materials
- Super image enhancement: Image detail is more distinct
- Assist to detect drug and explosive powder
- Color material identification: Organic objects in orange, inorganic objects in the blue, mixture in green
- Brightening/dimming: Increase/Decrease the brightness of the image
The Uniqscan SF10080 X-ray Baggage Scanner is an advanced security tool designed to enhance the screening process at airports, train stations, government buildings, and other high-security facilities. This model, with its spacious tunnel, is engineered to accommodate larger baggage sizes while providing fast, reliable, and high-resolution X-ray imaging for accurate threat detection. It is equipped with cutting-edge features like automatic threat detection and image enhancement. The SF10080 ensures precise and efficient scanning operations.
The robust construction of the SF10080 offers durability, while the user-friendly interface allows operators to easily analyze the high-resolution images of baggage content displayed on a color monitor. This scanner’s non-intrusive technology helps in detecting dangerous items, such as weapons and explosives, without the need for physical searches. Thus making it an indispensable tool for modern security infrastructures.
Uniqscan SF10080 X-ray Baggage Scanner Specifications
| Specification | Details |
|---|---|
| Tunnel Size | 1000 (W) × 800 (H) mm |
| Conveyor Speed | 0.22 m/s |
| Conveyor Max Load | 230 kg |
| Single Inspection Dosage | < 1.5 μGy |
| Leakage Radiation | < 0.2 μGy/h |
| Wire Resolution | 40 AWG (0.0787mm metal line) |
| Steel Penetration | 36 mm |
| Film Safety | For ISO 1600 |
| X-ray Generator Orientation | Downward |
| Tube Current | 0.4 ~ 1.2 MA (adjustable) |
| Anode Voltage | 100 ~ 160 KV |
| X-ray Divergence Angle | 80° |
| Generator Cooling | Sealed oil bath with forced air/100% |
| X-ray Sensor | L-shaped array detector, 24-bit |
| Network Interface | Capable of connecting to LAN, supports multi-terminal check |
| Safety Ray Control | Automatic control to prevent errors, with one-key shutdown |
| Eagle Eye | Expedient magnification for detailed area viewing |
| Self-Diagnosis Function | Automatic alerts for prompt maintenance |
Features and Benefits
- Large Tunnel Size: The 1000mm (W) x 800mm (H) tunnel accommodates a wide range of large baggage sizes, making it suitable for various items.
- Fast Scanning Speed: With a conveyor speed of 0.22m/s, the SF10080 ensures rapid and efficient screening, even in high-traffic environments.
- Advanced Image Enhancement: Operators benefit from the enhanced clarity and detail provided by super image enhancement technology, improving the detection of threats.
- Automatic Threat Detection: The system automatically identifies potential threats, increasing the accuracy and efficiency of the screening process.
- Safety Features: Radiation shielding and interlocks protect both operators and passengers from exposure, ensuring compliance with international safety standards.
- User-Friendly Interface: Intuitive controls make it easy for operators to navigate through images and identify potential security threats.
Product Applications
- Airports and Train Stations: Perfect for large-scale transportation hubs requiring fast and reliable baggage scanning.
- Government Buildings: Provides enhanced security for sensitive areas with its advanced threat detection capabilities.
- Public Venues: Ideal for scanning large items at events and venues, ensuring the safety of attendees.
- Corporate Offices: Secures corporate spaces by screening visitors and employee belongings efficiently.
Price of Uniqscan SF10080 X-ray Baggage Scanner in Bangladesh
Buy the Uniqscan SF5030A X-Ray Baggage Scanner for its advanced security features, high-resolution imaging, and efficient threat detection. Designed for airports, offices, and public venues, this scanner ensures the safe and reliable screening of luggage and packages. When you purchase from Crystal Vision Solutions, you receive genuine Uniqscan products, competitive pricing, and outstanding customer support. With fast delivery and expert guidance, Crystal Vision Solutions guarantees a hassle-free buying experience for all your security needs.
