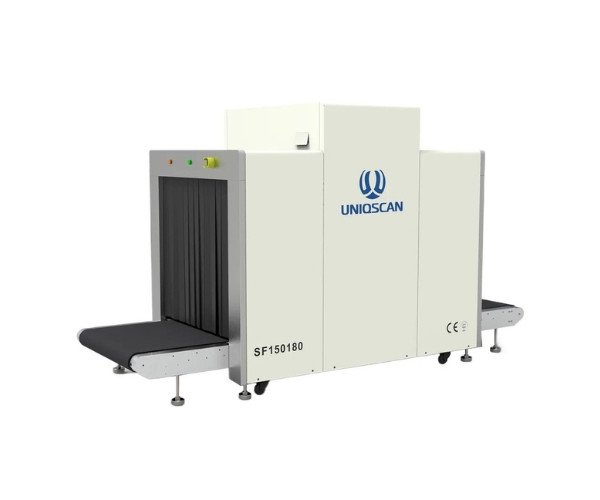

Uniqscan SF150180 X-ray Baggage Scanner
- 2* 19” High-Resolution LCD Monitor
- Display Resolution: 1280*1024; 24 bit/pixel Color
- Super image enhancement: Image detail is more distinct
- Color material identification: Organic objects in orange, inorganic objects in the blue, mixture in green
- Assist in detecting drug and explosive powder
- Brightening/dimming: Increase/Decrease the brightness of the image
- Multi-energy: High/ low energy: Switch from high energy to low energy
The Uniqscan SF150180 X-ray Baggage Scanner is a state-of-the-art security screening solution widely deployed in airports, train stations, government buildings, and other high-security facilities. This advanced scanner is specifically designed to handle large-sized baggage and cargo, offering exceptional accuracy and efficiency in detecting potential threats.
Equipped with a high-resolution 19-inch color LCD display, the SF150180 delivers clear, detailed images that allow operators to easily analyze the contents of the scanned items. The scanner utilizes 24-bit real colors based on material composition, enabling accurate identification of objects. Organic materials appear in orange, inorganic in blue, and mixtures in green, making the screening process faster and more reliable.
Uniqscan SF150180 X-ray Baggage Scanner Specifications
| Specification | Details |
|---|---|
| Tunnel Size | 1500 (W) × 1800 (H) mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 800kg |
| Single Inspection Dosage | < 1.6μGy |
| Leakage Radiation | < 0.8μGy/h |
| Wire Resolution | 36 AWG |
| Steel Penetration | 34mm |
| Film Safety | For ISO 1600 |
| X-ray Generator Orientation | Downward |
| Tube Current | 0.4-1.0 MA (adjustable) |
| Anode Voltage | 100-160 KV (adjustable) |
| X-ray Divergence Angle | 80° |
| Generator Cooling | Sealed oil bath with forced air/100% |
| X-ray Sensor | L-shaped array detector, 24-bit |
| Network Interface | LAN-capable, supports multi-terminal baggage checks |
| Eagle Eye Feature | Expediently observe magnified areas |
| Self-Diagnosis | Automatic alerts for malfunction and maintenance |
| One-Key Shutdown | Safe and convenient shutdown control |
Product Features
- Super Image Enhancement: Advanced image processing technology improves threat detection accuracy.
- Dual-Energy Technology: Switch between high and low energy levels for efficient scanning.
- Material Differentiation: Color-coded system for quick identification of organic, inorganic, and mixed materials.
- Safety Interlocks: Automatic control and one-key shutdown for secure operation.
- High-Resolution Display: 19-inch color LCD for clear, detailed image analysis.
- Brightness Adjustment: Brightening and dimming function for optimal viewing in different lighting conditions.
- Robust Construction: Durable design with a sealed oil bath cooling system for long-lasting performance.
- Certified Safety Standards: Complies with CE, ISO, FCC, and RoHS certifications.
Features and Benefits
One of the standout features of the SF150180 is its super image enhancement technology, which sharpens image details to aid in the detection of potential threats, such as drugs and explosives. Operators can also utilize the brightness adjustment feature to modify image clarity based on environmental lighting conditions.
The SF150180 also supports multi-energy scanning, allowing operators to switch between high and low energy levels for detailed inspections or faster throughput during busy periods. Designed with downward X-ray orientation, the SF150180 provides ergonomic and efficient operation, improving user experience in high-volume environments.
With built-in safety interlocks and a one-key shutdown control, the SF150180 ensures safe and secure operation. Its robust construction and sealed oil bath cooling system with forced air make it a reliable, high-performance tool that meets international safety standards, including CE, ISO, FCC, and RoHS certifications.
Price of Uniqscan SF150180 X-ray Baggage Scanner in Bangladesh
Buy the Uniqscan SF5030A X-Ray Baggage Scanner for its advanced security features, high-resolution imaging, and efficient threat detection. Designed for airports, offices, and public venues, this scanner ensures the safe and reliable screening of luggage and packages. When you purchase from Crystal Vision Solutions, you receive genuine Uniqscan products, competitive pricing, and outstanding customer support. With fast delivery and expert guidance, Crystal Vision Solutions guarantees a hassle-free buying experience for all your security needs.
