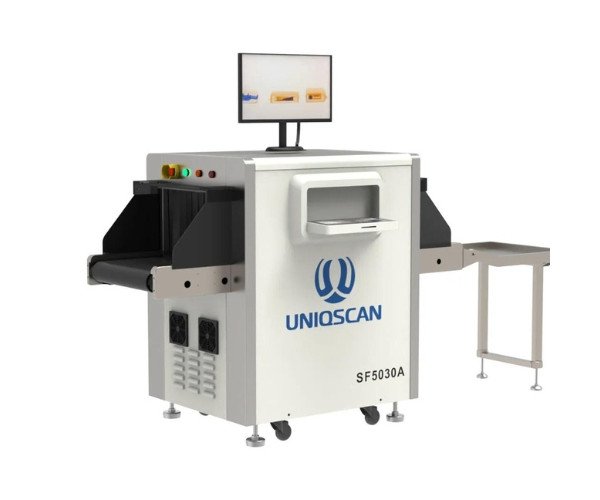

The Uniqscan SF5030A X-Ray Baggage Scanner is a high-performance security screening solution designed to meet the demands of busy environments such as airports, transportation hubs, and high-security areas. Its compact design combined with advanced imaging capabilities ensures accurate and fast baggage inspections while enhancing overall operational efficiency. With 10mm steel penetration and an L-shaped array detector, this scanner delivers clear, high-resolution images, allowing security personnel to detect potential threats with ease. The upward X-ray generator and sealed oil bath cooling system further ensure reliable and consistent performance under continuous operation.
Incorporating user-friendly features like real-time image storage, image enhancement tools, and one-key shutdown control, the SF5030A X-Ray scanner prioritizes safety, reliability, and ease of use. Its low leakage radiation and self-diagnosis function make it a secure and dependable option for various security applications.
Uniqscan SF5030A X-Ray Baggage Scanner Specifications
| Specification | Details |
|---|---|
| Tunnel Size | 500(W) x 300(H) mm |
| Conveyor Speed | 0.22 m/s |
| Conveyor Max Load | 100 kg |
| Leakage Radiation | <0.1 µGy/h |
| Steel Penetration | 10 mm |
| Package Dimensions (mm) | 1750 x 900 x 1440 |
| Gross Weight | 450 kg |
| X-Ray Generator | Upward orientation, adjustable current (0.4~0.7 mA) |
| Anode Voltage | 80KV |
| Angle | 60° |
| Cooling System | Sealed oil bath with forced air cooling |
| Image Display | High-resolution 19-inch LCD, 24-bit color |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Power Supply | 220 VAC ±10%, 50 ±3HZ |
| Power Consumption | 1.0 KW (Max) |
| Noise Level | <65 dB |
Key Features
- High-resolution 19-inch display: View real-time baggage scans in 24-bit true color for material differentiation.
- Advanced image enhancement: Tools like edge enhancement, super image enhancement, and brightness control for improved image clarity.
- Robust steel penetration: Penetrates up to 10mm of steel for thorough inspection of dense objects.
- Efficient storage and processing: Store and retrieve images instantly for fast decision-making in high-traffic environments.
- Safety-first design: Includes network interface, self-diagnosis, and one-key shutdown for quick, safe operation.
Product Applications
- Airports: Enhance passenger safety with fast and accurate baggage screening.
- Public transport hubs: Ensure high-security screening in busy public areas.
- Government buildings: Protect sensitive locations with detailed, real-time image analysis.
Price of Uniqscan SF5030A X-Ray Baggage Scanner in Bangladesh
Buy the Uniqscan SF5030A X-Ray Baggage Scanner for its advanced security features, high-resolution imaging, and efficient threat detection. Designed for airports, offices, and public venues, this scanner ensures the safe and reliable screening of luggage and packages. When you purchase from Crystal Vision Solutions, you receive genuine Uniqscan products, competitive pricing, and outstanding customer support. With fast delivery and expert guidance, Crystal Vision Solutions guarantees a hassle-free buying experience for all your security needs.
