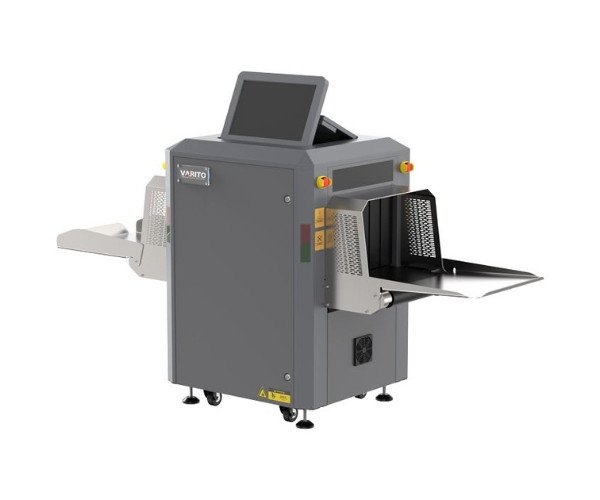

The VARITO XR3D-6550C X-ray Baggage Scanner is a high-performance device designed to improve security screening efficiency. The scanner is ideal for airports, train stations, government buildings, and other high-security environments. This advanced scanner uses 140kV X-ray technology to provide clear, detailed images of the contents within luggage, parcels, and other items without needing to open them. Its powerful penetration of up to 40mm steel plates ensures accurate detection of weapons, explosives, and other contraband.
Equipped with a 21.5″ display and a resolution of 1920x1080p, the XR3D-6550C offers superior image quality. Therefore, making it easier for security personnel to detect threats quickly and efficiently. The scanner operates at a conveyor speed of 0.22 meters per second and can handle up to 450kg, making it suitable for high-traffic areas where security is critical.
VARITO XR3D-6550C Baggage Scanner Machine Specifications
| Specification | Details |
|---|---|
| Channel Size | 659mm (W) x 504mm (H) |
| Device Size | 1893mm (L) x 916mm (W) x 1411mm (H) |
| Line Resolution | AWG38 (Φ0.102mm) |
| Spatial Resolution | Horizontal: 1.0mm; Vertical: 1.0mm |
| Penetration | 40mm Steel Plate |
| X-ray Source | 140kV, 0.5mA – 1.25mA |
| Radiation Dose | Leakage: <1μGy/h (at 5cm from external housing) |
| Single Dose | ≤2.5μGy/h |
| Conveyor Speed | 0.22 meters/second |
| Conveyor Belt Height | 700mm (belt to ground) |
| Display | 21.5″ Color LCD, 1920x1080p resolution |
| Power Consumption | 800W |
| Power Supply | AC220V 50Hz |
| Noise Level | <55 dB (1 meter from device) |
| Operating Temperature | 5℃ to 40℃ |
| Storage Temperature | -20℃ to 40℃ |
| Humidity | 10% to 90% (non-condensing) |
| Weight | 450kg |
| Monitor System | 1/2.8″ Progressive Scan CMOS |
| Wide Dynamic Range | 120dB |
| Video Compression | H.265 / H.264 / MJPEG |
| Maximum Image Size | 1920×1080 |
| Storage Duration | Not less than 30 days |
| System | Windows 10, Multilingual support (English, Chinese, Russian, Turkish) |
Key Features & Benefits
- High Penetration Power: With a 140kV X-ray source, the scanner penetrates up to 40mm steel. Thus, providing high-quality images for effective detection of dangerous items.
- High-Resolution Imaging: The 21.5″ display with 1920x1080p resolution ensures that security operators can clearly identify objects within luggage and packages.
- Non-Invasive Screening: The XR3D-6550C enables thorough inspections without opening baggage, maintaining privacy while ensuring safety.
- Fast Conveyor Speed: The 0.22 m/s conveyor ensures that screening is completed quickly. Therefore, reducing wait times and improving efficiency in high-traffic areas.
- Compliance with International Standards: The system is designed to comply with global radiation safety regulations, ensuring it can be used in any high-security environment worldwide.
Benefits of Investing in the VARITO XR3D-6550C
- Enhanced Security: With its high penetration power and real-time image processing, this X-ray scanner significantly boosts security. Thus, helping prevent dangerous items from entering secure areas.
- Increased Efficiency: The fast conveyor speed and real-time diagnostics reduce screening time. This makes the process smoother and faster, especially in busy locations like airports and commercial buildings.
- Non-Invasive and Secure: The system allows for detailed inspection without physical interaction with the luggage. Therefore, ensuring passengers’ privacy while maintaining high-security standards.
- Global Compliance: The XR3D-6550C is ideal for use in airports, train stations, and other high-security locations worldwide.
Price of VARITO XR3D-6550C Baggage Scanner Machine in Bangladesh (BD)
The X-Ray Baggage Scanner ensures thorough and efficient security screening. Therefore, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, thus ensuring you find the best security solution for your needs.
